MEC2 INVERTED METALLURGICAL MICROSCOPE

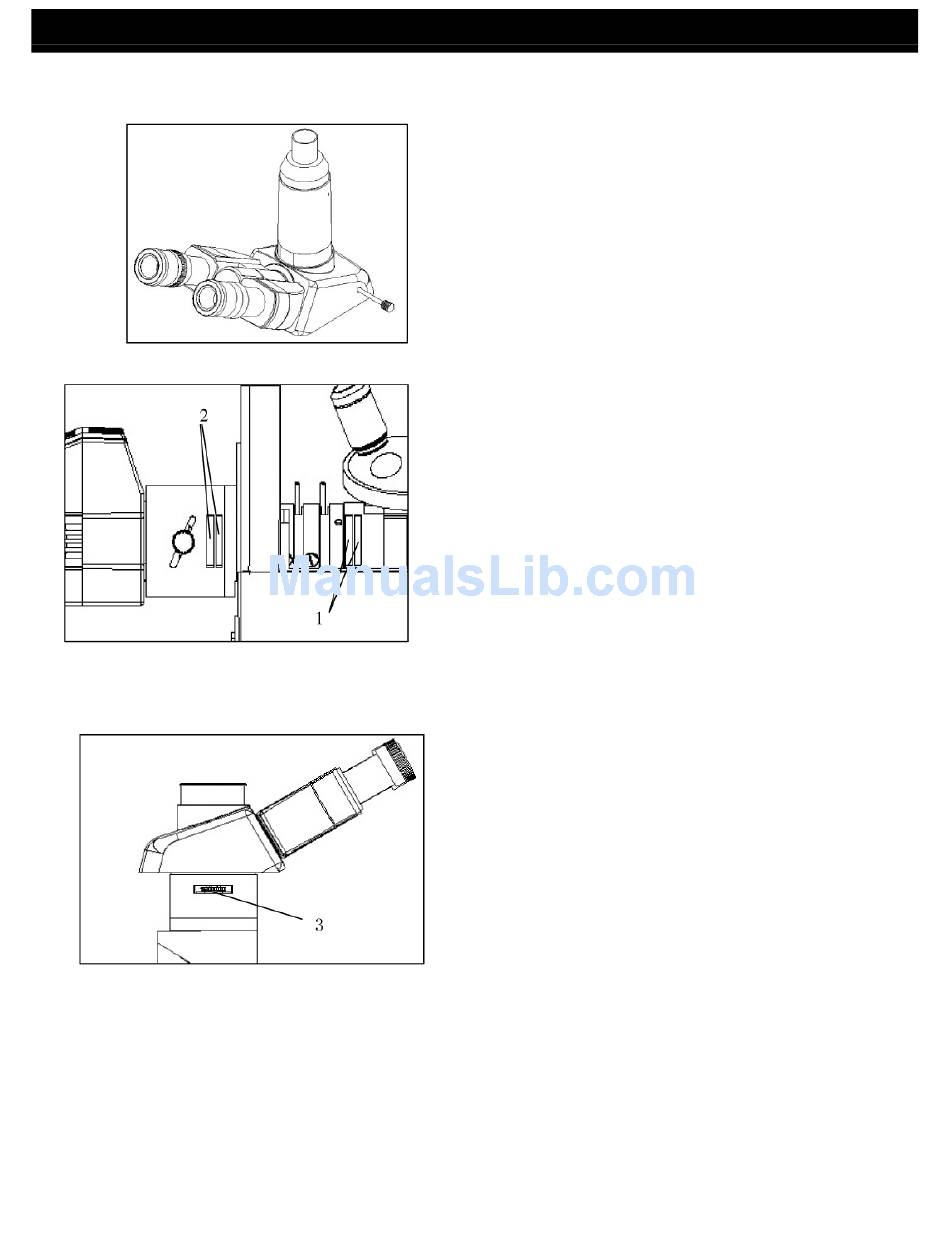

Mounting Filters and Polarizer
(Figure 10)
1. Insert a standard filter(s) into slot (1)
2. For polarized observation, insert the polarizer
filter into slot (2).
Standard filters are blue, yellow and green
filters
Fig. 9
Mounting the Analyzer (Figure 11)
Insert the analyzer (3) into the slot under the
trinocular viewing head.
The analyzer may be used alone or with the
polarizer.
Fig. 10
Fig. 11
®
