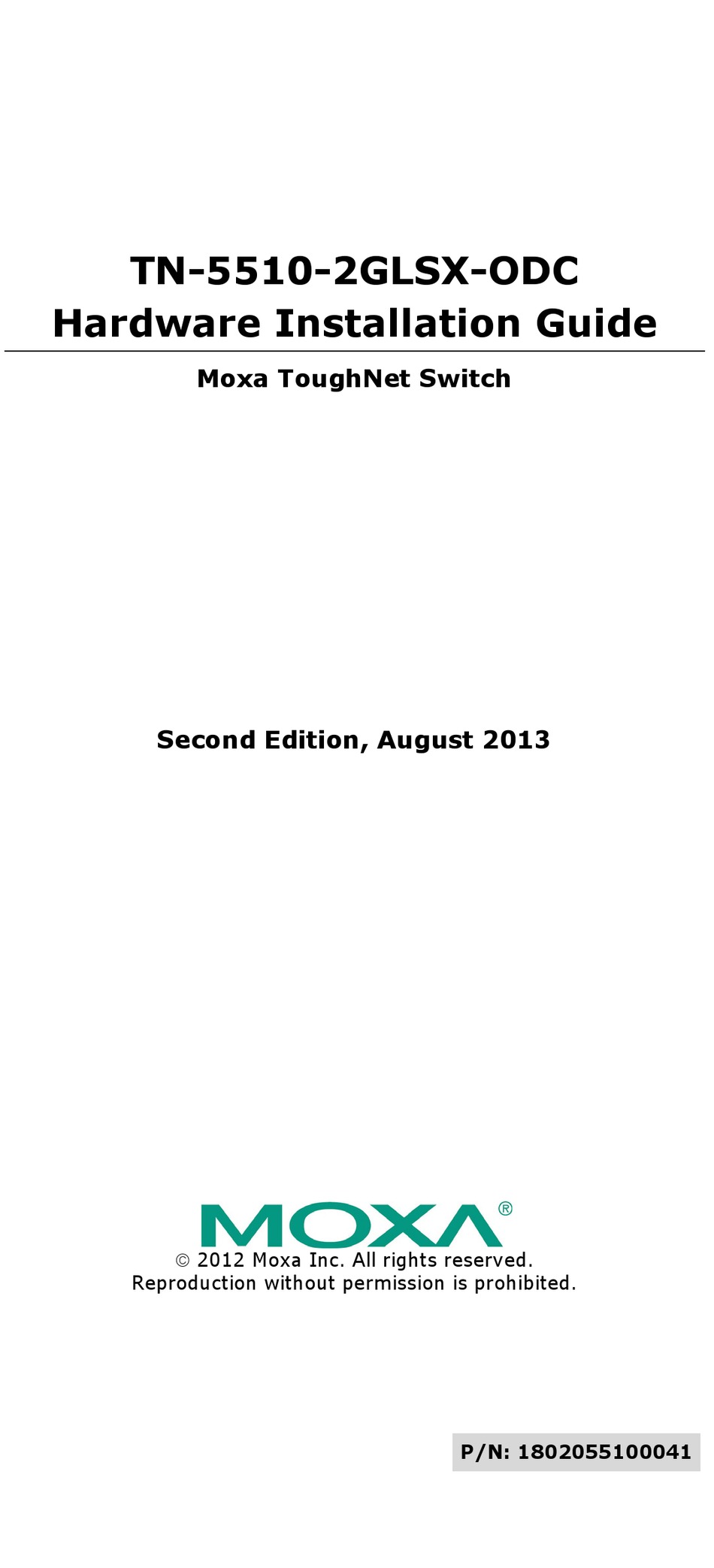

TN-5510-2GLSX-ODC

Hardware Installation Guide

Moxa ToughNet Switch
Second Edition, August 2013
 2012 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
P/N: 1802055100041

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ToughNet TN-5510-2GLSX-ODC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies ToughNet TN-5510-2GLSX-ODC

  • Page 1: Hardware Installation Guide

    TN-5510-2GLSX-ODC Hardware Installation Guide Moxa ToughNet Switch Second Edition, August 2013  2012 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802055100041...
  • Page 2: Package Checklist

    The switch supports a power input range 12/24/36/48 VDC. TN-5510-2GLSX-ODC switches provide up to 8 Fast Ethernet M12 ports, and 2 Gigabit Fiber ports on the bottom panel which allow cable lengths up to 2 km. The TN-5510 Ethernet switch is compliant with the essential sections of EN 50155 (railway applications), making it suitable for a variety of industrial applications.
  • Page 3: Recommended Optional Accessories

    • Lock port allows access by only authorized MAC addresses. • Port mirroring for online debugging. • Automatic warning by exception through email, relay output. • Automatic recovery of connected device’s IP addresses. • Line-swap fast recovery. • LLDP for automatic topology discovery in network management software.
  • Page 4 TN-5510-2GLSX-ODC Panel Layouts 1. 3 Rotary switches and protective cover with Model name. 2. Screw holes for panel mounting kit. 3. Console port. 4. Grounding screw. 5. Relay output port. 6. Power input voltage range indication. 7. Power input port (male 6-pin shielded M23 connector).
  • Page 5: Fault Led

    8. PWR1 LED: for power input 1. 9. PWR2 LED: for power input 2. 10. FAULT LED. 11. MSTR/HEAD LED: for ring master or chain head. 12. CPLR/TAIL LED: for ring coupler or chain tail. 13. TP port’s 10/100 Mbps LED. 14.
  • Page 6: Mounting Dimensions (Unit = Mm)

    Mounting Dimensions (unit = mm) TN-5510-2GLSX-ODC Series - 6 -...
  • Page 7: Panel/Wall Mounting

    Panel/Wall Mounting STEP 1: Mounting the TN-5510 to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. If you would like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in diameter and the shaft is less than 4.0 mm in...
  • Page 8: Din-Rail Mounting (Optional)

    DIN-Rail Mounting (optional) Use a pair of optional DK-DC50131 DIN-Rail mounting kits (must be purchased separately) to mount the TN-5510 on a 35 mm DIN-Rail. STEP 1: Use 12 screws (6 screws per plate) to attach the two DIN-Rail attachment plates to the rear panel of the switch STEP 2: If the spring-loaded bracket is locked in place, push the recessed button...
  • Page 9: Wiring Requirements

    Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. Do NOT use a voltage greater than what is specified on the product label.
  • Page 10: Connecting The Power Supplies

    ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Connecting the Power Supplies The ToughNet TN-5510 switches support two sets of power supplies—power input 1 and power input 2.The M23 6-pin male connector on the TN-5510’s front panel is used for the dual power inputs.
  • Page 11: Connecting The Relay Outputs

    STEP 1: Plug your power cord’s M23 connector to the power input port of the TN-5510 switch. STEP 2: Screw the nut on your power cord connector to the power input connector on the switch to ensure a tight connection. ATTENTION Before connecting the TN-5510 to the power input, make sure the power source voltage is stable.
  • Page 12: Connecting The Data Lines

    Connecting the Data Lines 10/100BaseT(X) Ethernet Port Connection All TN-5510 models have 8 10/100BaseT(X) Ethernet ports (4-pin shielded M12 connector with D coding). The 10/100Base-TX ports located on the TN-5510 front panel are used to connect to Ethernet-enabled devices. Most users configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on the type of Ethernet cable used (straight-through or cross-over), and the type of device (NIC-type or HUB/Switch-type) connected to the port.
  • Page 13 M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring Rotary Switch IP Address Settings The ToughNet TN-5510 switches have 3 rotary switches on the front panel for configuring the IP address without using a PC, making onsite configuration extremely convenient.
  • Page 14: Led Indicators

    NOTE 1. “Hardware-based IP configuration” only supports IPv4 address settings. 2. “Hardware-based IP configuration” is enabled only when the 3 rotary switches are set to values ranging from 001 to 254. The ToughNet switch’s IP address will be configured as “192.168.127.xxx”, where “xxx”...
  • Page 15: Specifications

    When the TN switch is neither the Master of this Turbo Ring, nor the Head of this Turbo Chain. CPLR/ GREEN When the TN switch enables the TAIL coupling function to form a back-up path in this Turbo Ring, or it is the Tail of this Turbo Chain.
  • Page 16: Warranty

    Interface Fast Ethernet Front cabling, M12 connector, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection Gigabit Ethernet Down cabling, M12 connector, 1000BaseLSX Console Port M12 A-coding 5-pin male connector System LED Indicators PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL Port LED Indicators 10/100M (Fast Ethernet port), 1000M (Gigabit Ethernet port)
  • Page 17 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 17 -...
