Page 1: Hardware Installation Guide

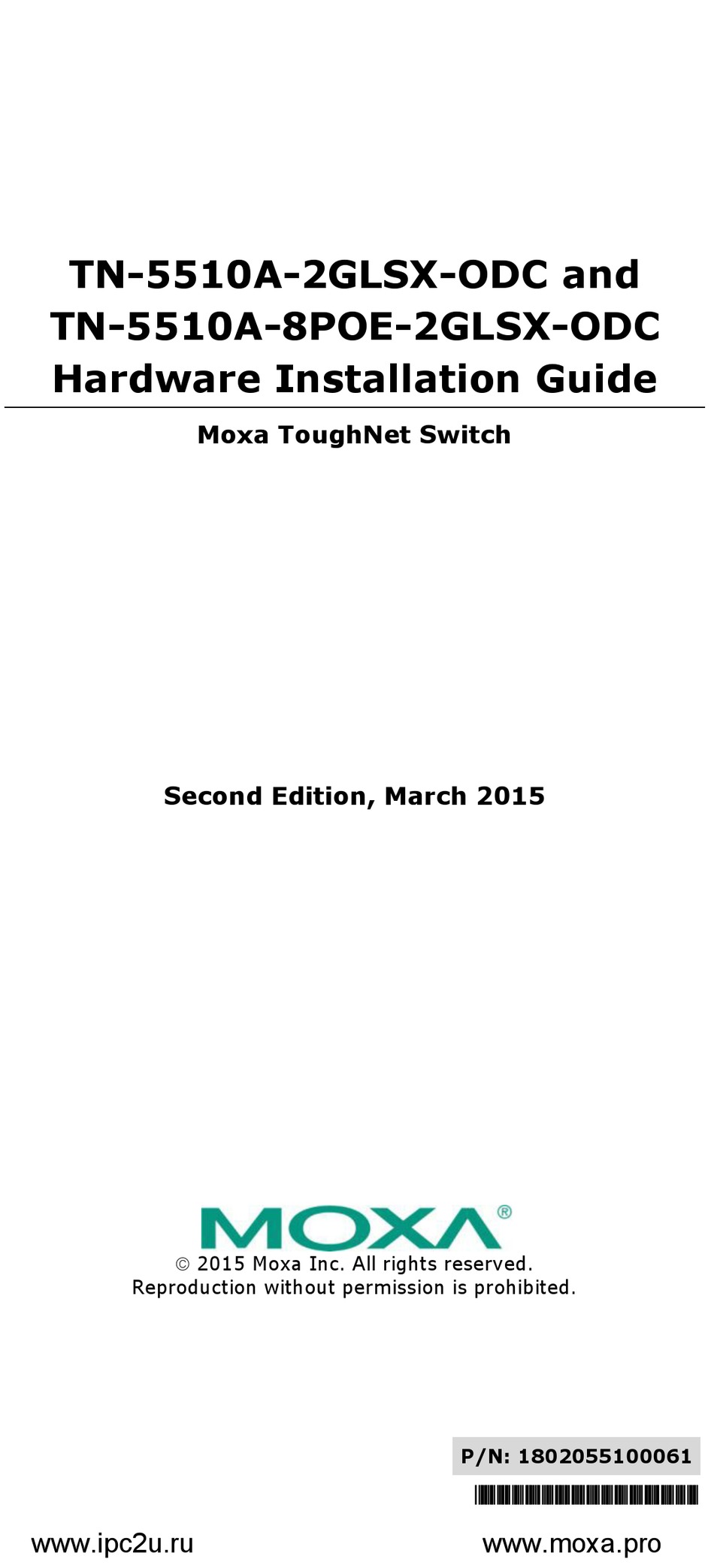

TN-5510A-2GLSX-ODC and TN-5510A-8POE-2GLSX-ODC Hardware Installation Guide Moxa ToughNet Switch Second Edition, March 2015 2015 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802055100061 *1802055100061* www.ipc2u.ru www.moxa.pro... -
Page 2: Package Checklist
Overview The ToughNet TN-5510A-2GLSX-ODC and TN-5510A-8POE-2GLSX-ODC series M12 managed Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. -
Page 3: Recommended Optional Accessories
• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization • 802.3ad, LACP for optimum bandwidth utilization • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security • SNMP v1/v2c/v3 for different levels of network management •... - Page 4 TN-5510A-2GLSX-ODC Panel Layouts 1. Screw holes for panel mounting kit 2. Console port 3. Grounding screw 4. Relay output port 5. Power input voltage range indicator 6. Power input port (male 6-pin shielded M23 connector) 7. PWR1 LED: for power input 1 www.ipc2u.ru...
-
Page 5: Fault Led
8. PWR2 LED: for power input 2 9. FAULT LED 10. MSTR/HEAD LED: for ring master or chain head 11. CPLR/TAIL LED: for ring coupler or chain tail 12. TP port’s 10/100 Mbps LED 13. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding) 14. -
Page 6: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) TN-5510A-2GLSX-ODC Series www.ipc2u.ru www.moxa.pro - 6 -... - Page 7 TN-5510A-8PoE-2GLSX-ODC Series www.ipc2u.ru www.moxa.pro - 7 -...
-
Page 8: Panel/Wall Mounting
Panel/Wall Mounting STEP 1: Mounting the TN-5510A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. If you would like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in diameter and the... -
Page 9: Din Rail Mounting (Optional)
DIN Rail Mounting (optional) Use a pair of optional DK-DC50131 DIN rail mounting kits (must be purchased separately) to mount the TN-5510A on a 35 mm DIN rail. STEP 1: Use 12 screws (6 screws per plate) to attach the two DIN rail attachment plates to the rear panel of the switch. -
Page 10: Wiring Requirements
Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. The correct power supply voltage is listed on the product label. Check the voltage of your power source to make sure you are using the correct voltage. Do NOT use a voltage greater than what is specified on the product label. -
Page 11: Grounding The Toughnet Switch
Grounding the ToughNet Switch Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the grounding screw to the grounding surface prior to connecting devices. ATTENTION This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. -
Page 12: Connecting The Relay Outputs
Pinouts for the power input port on the TN-5510A Description Usage PWR1 Live / DC + Connect “PWR1 Live / DC +” to the positive (+) terminal when using a DC power source. PWR1 Neutral / DC - Connect “PWR1 Neutral / DC -” to the negative (-) terminal when using a DC power source. -
Page 13: Connecting The Data Lines
RS-232 Connection The TN switch has one RS-232 (M12 5-pin) console port, located on the front panel. Use an M12-to-DB9 console cable to connect the TN switch’s console port to your PC’s COM port. You may than use a console terminal program, such as Moxa PComm Terminal Emulator to access the TN switch’s configuration utility. - Page 14 M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring ATTENTION The protective cover must be fixed properly to ensure IP54 protection.
-
Page 15: Led Indicators
LED Indicators Several LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the following table. Color State Description System LEDs Power is being supplied to power input PWR1. PWR1 AMBER Power is not being supplied to power input PWR1 Power is being supplied to power input PWR2. -
Page 16: Specifications
1 A @ 30 VDC Power Requirements Input Voltage WV: 24–110 VDC (16.8 to 137.5 VDC) Input Current TN-5510A-2GLSX-ODC Series: 0.45 A TN-5510A-8PoE-2GLSX-ODC Series: 7.8 A Connection M23, 6-pin male connector Overload Current Present... - Page 17 Housing Metal, IP54 protection (with protective caps on unused ports) Dimensions (W H D) TN-5510A-2GLSX-ODC Series: 185 x 204.3 x 76.0 mm (7.28 x 8.04 x 2.99 in) TN-5510A-8PoE-2GLSX-ODC Series: 185 x 204.3 x 115 mm (7.28 x 8.04 x 4.53 in)
