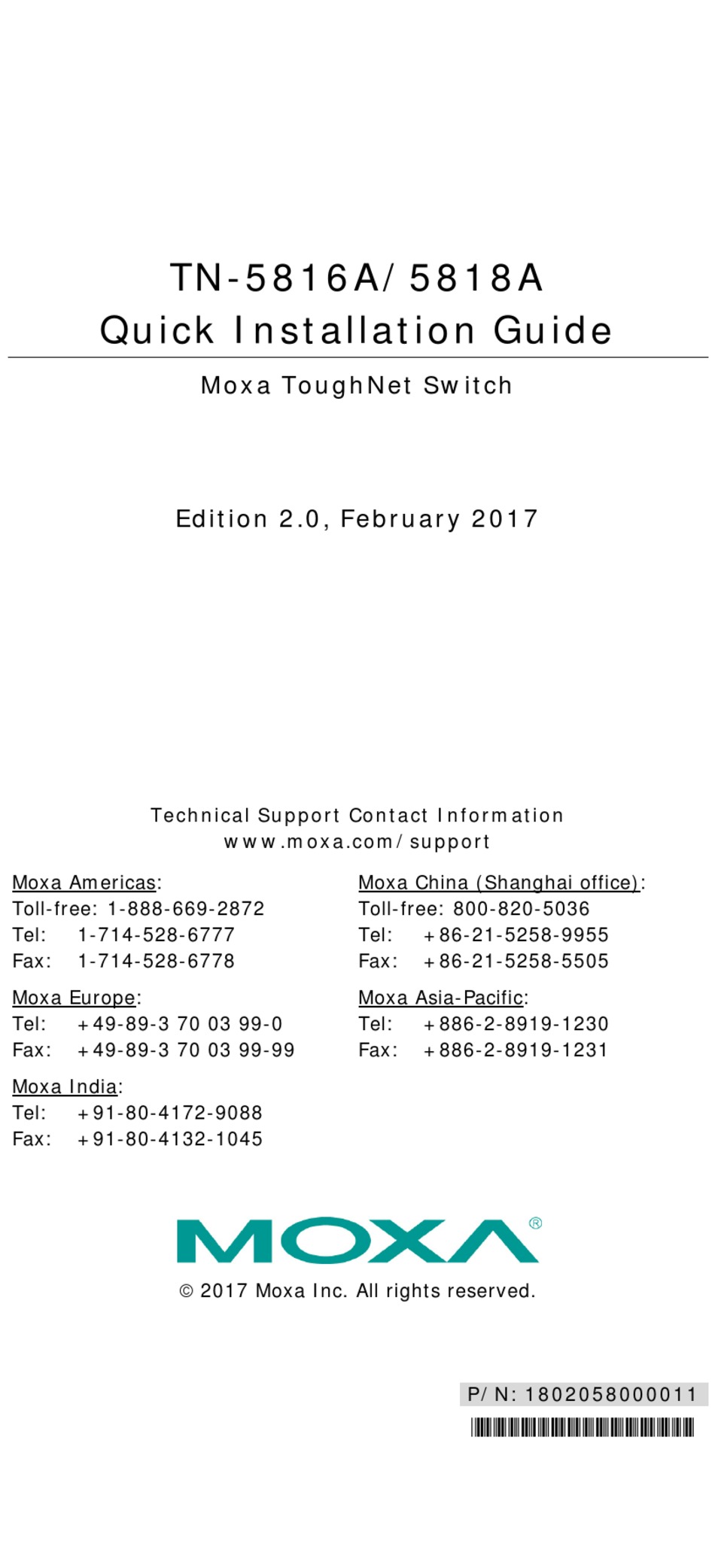

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
TN-5816A/5818A
Moxa ToughNet Switch
Edition 2.0, February 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802058000011
*1802058000011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies ToughNet TN-5816A Series
Summary of Contents for Moxa Technologies ToughNet TN-5816A Series
- Page 1 TN-5816A/5818A Quick Installation Guide Moxa ToughNet Switch Edition 2.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax:...
-
Page 2: Package Checklist
Overview The ToughNet TN-5816A/5818A switches are high performance M12 Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. TN-5816A/5818A switches use M12 and other circular connectors to ensure tight, robust connections and guarantee reliable operation against environmental disturbances, such as vibration and shock. -
Page 3: Recommended Optional Accessories
Recommended Optional Accessories • CBL-M23(FF6P)Open-BK-100-IP67: 1-meter M23 to 6-pin power cable with IP67-rated female 6-pin M23 connector • CBL-M12D(MM4P)/RJ45-100 IP67: 1-meter M12-to-RJ45 Cat-5E UTP Ethernet cable with IP67-rated male 4-pin M12 D-coded connector • CBL-M12(FF5P)/OPEN-100 IP67: 1-meter M12-to-5-pin power cable with IP67-rated female 5-pin M12 A-coded connector •... - Page 4 TN-5816A Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 6-pin shielded M23 connector) 8. PWR1 LED: for power input 1 9.
- Page 5 TN-5818A Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8. PWR1 LED: for power input 1 9.
-
Page 6: Mounting Dimensions (Unit = Mm)
19. E1 LED: Down-side E1 Gigabit port’s 10/100/1000 Mbps LED 20. Gigabit Ethernet port E1 (corresponding to port 17 in the TN-5818A User's Manual; ports 17-18 support relay bypass function) 21. Gigabit Ethernet port E2 (corresponding to port 18 in the TN-5818A User’s Manual;... -
Page 7: Panel/Wall Mounting
TN-5818A Series Panel/Wall Mounting STEP 1: Mounting the TN-5816A/5818A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. If you would like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in diameter and the shaft is less than 4.0 mm in... -
Page 8: Din-Rail Mounting (Optional)
NOTE Before tightening the screws into the wall, make sure the screw head and shaft size are suitable by inserting the screw through one of the keyhole-shaped apertures of the ToughNet switch. STEP 3: Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. -
Page 9: Wiring Requirements
To remove the Moxa ToughNet Switch from the DIN-rail, use a screwdriver to pull out the two spring-loaded brackets from the bottom until they are fixed in a “locked” position. Then, reverse Steps 3 and 4 above. Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. -
Page 10: Grounding The Toughnet Switch
Please Read and Follow These Guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring through the same wire conduit. -
Page 11: Connecting The Relay Outputs
Pinouts for the power input port on the TN-5816A/5818A Description Usage PWR1 Live / DC + Connect “PWR1 Live / DC +” to the positive (+) terminal when using a DC power source. PWR1 Neutral / Connect “PWR1 Neutral / DC –” to the negative DC - (-) terminal when using a DC power source. - Page 12 FAULT: The two sets of relay contacts of the M12 A-coded 5-pin male connector are used to detect user-configured events. The two wires attached to the fault contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the fault circuit remains closed.
- Page 13 M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable Wiring - 13 -...
- Page 14 Bypass Relay Function The TN-5816A/5818A is equipped with a bypass relay function. When the switch is operating normally, these bypass ports work in the same way as the other ports. That is, frame ingressions are processed and then forwarded. If the switch stops working due to a power failure, the bypass relay function will be triggered to ensure non-stop data communication.
-
Page 15: Led Indicators
LED Indicators Several LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the table below. Color State Description System LEDs PWR1 AMBER Power is being supplied to power input PWR1. Power is not being supplied to power input PWR1 PWR2 AMBER... -
Page 16: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP Protocols... - Page 17 Reverse Polarity Present Protection Physical Characteristics Housing Metal, IP54 protection (with protective caps on unused ports) Dimensions (W × H × D) TN-5816A Series: 250 x 175.8 x 116.3 mm (9.84 x 6.92 x 4.58 in) TN-5818A Series: 250 x 181.4 x 116.3 mm (9.84 x 7.14 x 4.58 in) Weight TN-5816A Series: 2990 g TN-5818A Series: 3160 g...
