Page 1: Hardware Installation Guide

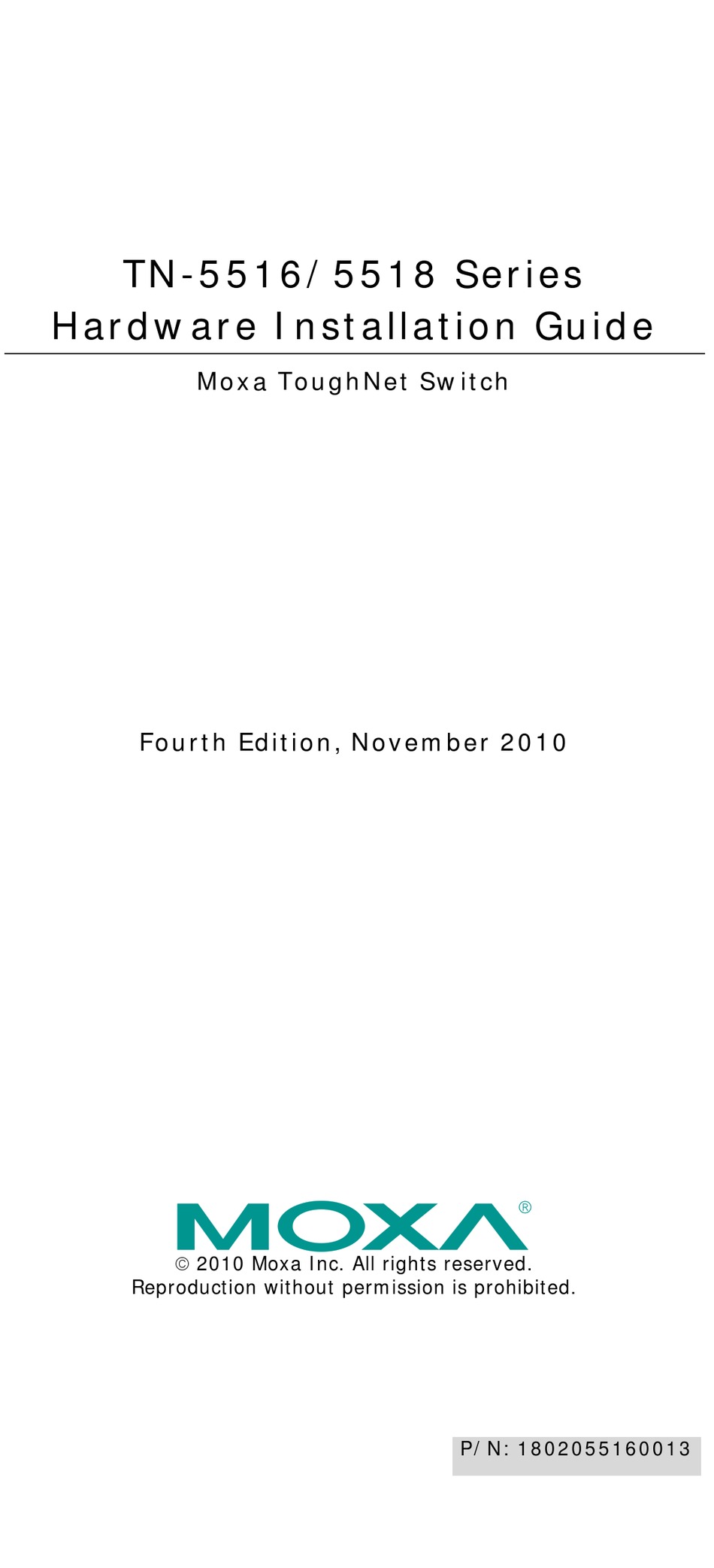

TN-5516/5518 Series Hardware Installation Guide Moxa ToughNet Switch Fourth Edition, November 2010 2010 Moxa Inc. All rights reserved. Reproduction without permission is prohibited. P/N: 1802055160013... -
Page 2: Package Checklist
Overview The ToughNet TN-5516/5518 series M12 managed Ethernet switches are designed for industrial applications in harsh environments. The TN series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The wide selection of 12/24/36/48 VDC, 72/96/110 VDC, or 110/220 VDC/VAC dual redundant power supplies increases the reliability of your communications. -
Page 3: Recommended Optional Accessories
• IGMP Snooping and GMRP for filtering multicast traffic from industria Ethernet protocols. • Port-based VLAN, IEEE802.1Q VLAN, and GVRP protocol to ease network planning. • QoS (IEEE802.1p/1Q and TOS/DiffServ) to increase determinism • 802.3ad, LACP for optimum bandwidth utilization. •... - Page 4 (female 4-pin shielded M12 connector with D coding). 15. Waterproof vent. 16. Product label. 17. 12 Screw holes for DIN-Rail mounting kit. 18. E2: LED: Not used by the TN-5516 series E1 LED: Not used by the TN-5516 series. - 4 -...
- Page 5 TN-5518 Panel Layouts 1. 3 Rotary switches and protective co r with Model name. 2. Screw holes fo r panel mounting kit. 3. Console port. 4. Grounding screw. 5. Relay output port. 6. Power input voltage range indication. 7. Power input port (male 5-pin s hielded M23 connector).
- Page 6 16. Product label. 17. 12 Screw holes for DIN-Rail mounting kit. 18. E2 LED: Down-side E2 Gigabit port's 10/100/1000 Mbps LED 19. E1 LED: Down-side E1 Gigabit port's 10/100/1000 Mbps LED 20. Gigabit Ethernet port E1 (corresponding to port 17 in the TN-5518 User's Manual).
-
Page 7: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) TN-5516 Series 235.00 67.70 52.70 220.00 69.80 250.00 DIN-RAIL KIT DIN-RAIL KIT 37.00 37.00 177.00 - 7 -... -
Page 8: Panel/Wall Mounting
TN-5518 Series Panel/Wall Mounting STEP Mounting the TN-5516/5518 to a wall requires 4 screws. Use the Tough Net switch as a guide to mark the correct positions of the 4 screws. STEP Use t he 4 screws in the panel mounting kit. If you 6.0 - 7.0 mm ld like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in... -
Page 9: Din-Rail Mounting (Optional)
NOTE Before tightening the screws into the wall, make sure the screw head and shaft size are sui table by inserting the screw through one of the keyhole-shaped apertures of the ToughNet sw itch. STEP 3: Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. -
Page 10: Wiring Requirements
STEP 3: STEP 4: Positio n the ToughNet sw itch on the Swing the switch down fully onto the DIN-R ail, tilting to hook c lamps ove DIN-Rail, until both clamps the top edge of the rail. completely latch. DIN-Rail DIN-Rail To remove the Moxa ToughNet Switch from the DIN-Rail, use a screwdriver to pull out the two spring-loaded brackets from the bottom... - Page 11 ATTENTION Safety First! Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. Please read and follow these guidelines: •...
-
Page 12: Connecting The Power Supplies
Connecting the Power Supplies The ToughNet TN-5516/5518 series switches support two sets of power supplies—power input 1 and power input 2. The M23 6-pin male connector on the TN-5516/5518 front panel is used for the dual power inputs. Pinouts for the power input port on the TN-5516/5518. -
Page 13: Connecting The Relay Outputs
Connecting the Relay Outputs Each TN-5516/5518 switch has two sets of relay outputs—relay output 1 and relay output 2.The M12 A-coded 5-pin male connector on the TN-5516/5518 front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. - Page 14 Pinouts for the 10/100/1000BaseT(X) M12 (8-pin) Port M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring Cross-Over Cable Wiring M12 ( 4-pin, M) to M 12 (4-pin, M) Straight-Trough Cable Wiring Straight-through Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring Cross-Over Cable Wiring - 14 -...
- Page 15 M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring Straight-through Cable Wiring Rotary Switch IP Address Settings The ToughNet TN-5516/5518 switches have 3 rotary switches on the front panel for configuring the IP address without using a PC, making onsite co nfiguratio n ext remely co...
- Page 16 Bypass Relay Function The TN-5518-2GTXBP models’ two Gigabit Ethernet ports are equipped with a bypass relay function. When the switch is operatin g normally, these Gigabit p s work in the same way as the other ports. That is, frame ingre ssions are pr ssed and then fo...
-
Page 17: Led Indicators
LED Indicators Several LED in dicators are located on the ToughNet switch’s front panel. The functio n of each LE D is described in the tabl e below. Color State Description System LEDs PWR1 AMBER Power is being supp lied to power input PWR1. -
Page 18: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) (TN-5518 ser only) IEEE 802.3x for Flow Control IEEE 802.1D for Span ning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Aut henti... -
Page 19: Power Requirements
Housing Metal, IP54 protection (with protective caps on unused ports) Dimensions (W H D) TN-5516 Series: 250 x 170 x 69.8 mm (9.84 x 6.69 x 2.75 in) TN-5518 Series: 250 x 183 x 69.8 mm (9.84 x 7.20 x 2.75 in) - Page 20 Note: Please check Moxa’s website for the most up-to-date certification status. WARRANTY 5 years Details: See www.moxa.com/warranty Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel:...
