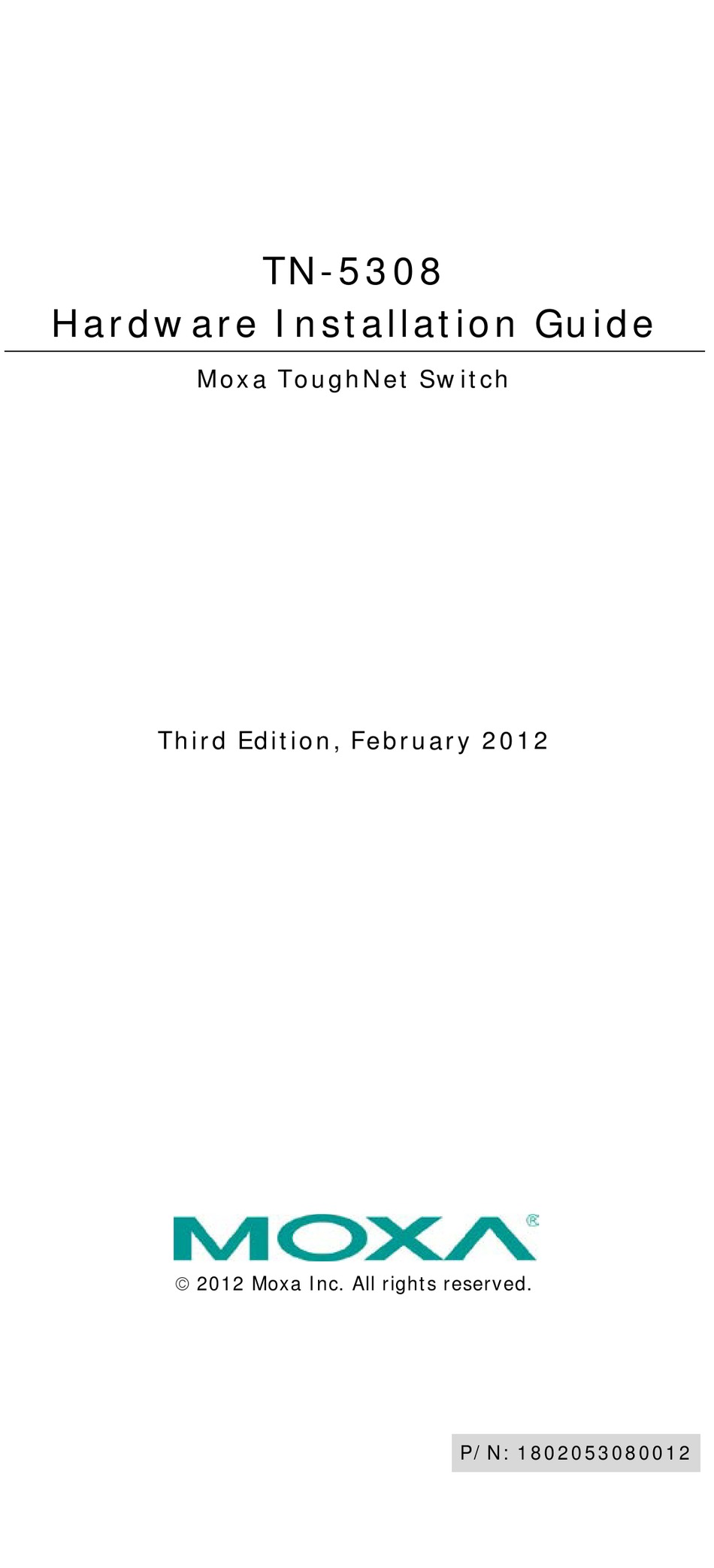

Page 1: Hardware Installation Guide
TN-5308 Hardware Installation Guide Moxa ToughNet Switch Third Edition, February 2012 2012 Moxa Inc. All rights reserved. P/N: 1802053080012... -
Page 2: Package Checklist
TN-5308 series Ethernet switches are compliant with EN50155/50121-3-2/50121-4 standards for railway applications. Package Checklist Your TN-5308 is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. •... - Page 3 TN-5308-LV Panel Layouts 1. TP port’s 10/100 Mbps LED 2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding) 3. Port label 4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right) 5.
- Page 4 Section .01 TN-5308-MV Panel Layouts 1. TP port’s 10/100 Mbps LED 2. 10/100BaseT(X) port (female 4-pin shielded M12 connector with D coding) 3. Port label 4. Screw holes for panel mounting kit or DIN rail mounting kit (there are 3 holes: top middle, bottom left, and bottom right) 5.
- Page 5 Mounting Dimensions (unit = mm) TN-5308-LV TN-5308-MV - 5 -...
-
Page 6: Panel/Wall Mounting
Panel/Wall Mounting Mounting the TN-5308-LV/MV on the wall requires 3 screws. Please use the 3 screws packed in the panel mounting kit. STEP 1: Prepare the 3 screw holes on the wall according to the positions of the 3 screw holes on the switch shown on the mounting dimension diagram. -
Page 7: Wiring Requirements
It is strongly advised that you label wiring for all devices in the system when necessary. Grounding the TN-5308 Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI). Run the ground connection from the grounding screw to the grounding surface prior to connecting devices. -
Page 8: Connecting The Power Supply
Connecting the Power Supply The M12 A coded 5 pin and M23 6 pin male connector on the TN-5308-LV/MV front panel is used for the DC power input. You have to prepare a power cord with M12/M23 A-coded 5-pin female connector to connect the switch to the DC power input. -
Page 9: Connecting The Data Lines
All TN-5308 models have 8 10/100BaseT(X) Ethernet ports (4-pin shielded M12 connectors with D coding). The 10/100TX ports located on the TN-5308’s front panel are used to connect to Ethernet-enabled devices. Most users configure these ports for Auto MDI/MDI-X mode, in which case the port’s pinouts are adjusted automatically depending on... -
Page 10: Auto Mdi/Mdi-X Connection
M12 (4-pin, M) to RJ45 (8-pin) Straight-Through Cable Wiring Auto MDI/MDI-X Connection The Auto MDI/MDI-X function allows users to connect TN-5308’s 10/100BaseTX ports to any kind of Ethernet device, without needing to pay attention to the type of Ethernet cable being used for the connection. -
Page 11: Switching And Address Learning
Switching and Address Learning The TN-5308 has a MAC address table that can hold up to 1000 node addresses, which makes it suitable for use with large networks. The address tables are self-learning, so that as nodes are added or removed, or moved from one segment to another, the TN-5308 automatically keeps up with new node locations. -
Page 12: Auto-Negotiation And Speed Sensing
Protection Physical Characteristics Housing Metal, IP40 protection Dimensions (W × H × D) TN-5308-LV: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in) TN-5308-MV: 60 x 216.6 x 53.7 mm (2.36 x 8.53 x 2.11 in) Weight... - Page 13 optional kit) Environmental Limits Operating Temperature Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature -40 to 85°C (-40 to 185°F) Operating Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL508 (Pending) Rail Traffic EN50155 (Environmental, Pending),...
