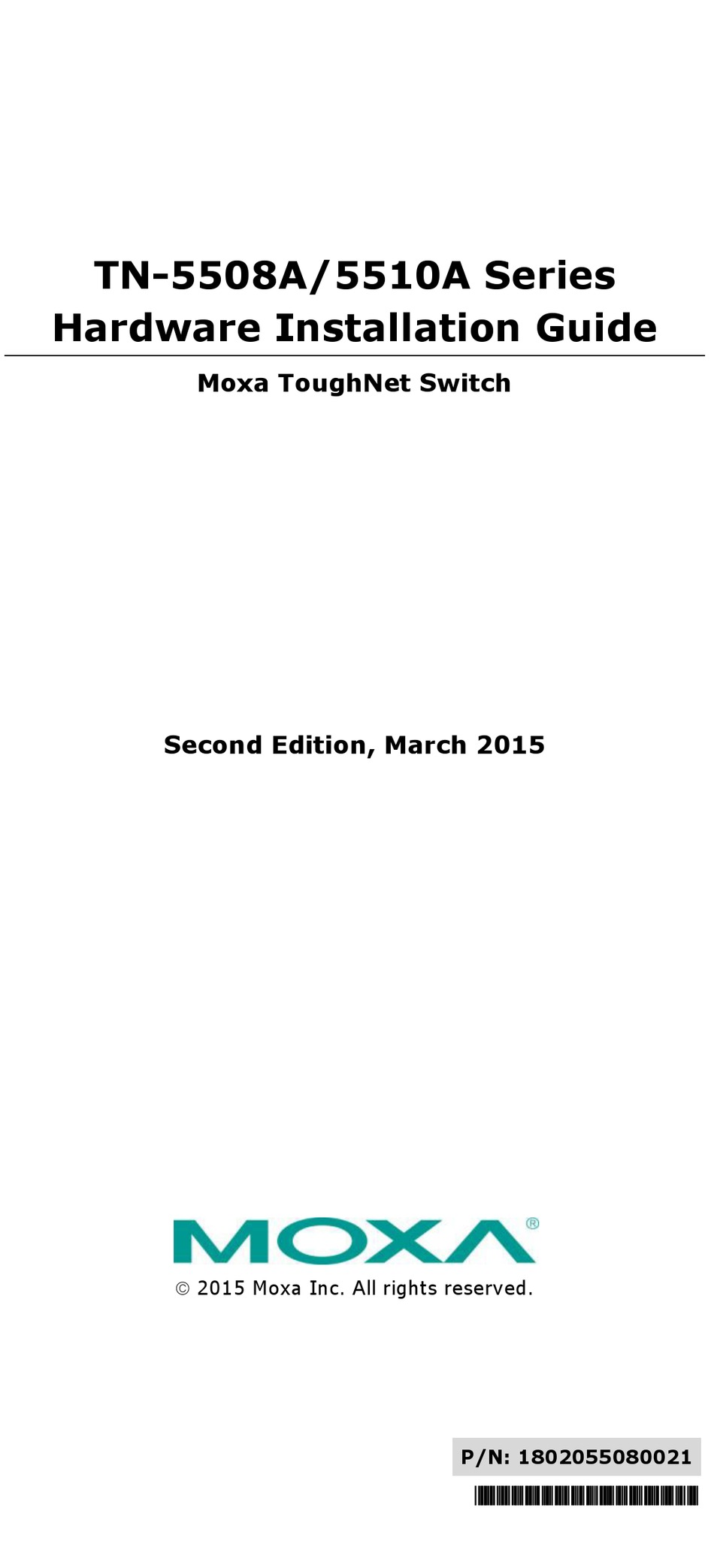

- Page 1 TN-5508A/5510A Series Hardware Installation Guide Moxa ToughNet Switch Second Edition, March 2015 2015 Moxa Inc. All rights reserved. P/N: 1802055080021 *1802055080021*...
-
Page 2: Package Checklist
The wide 24 to 110 VDC with dual power input (non-PoE series) increases the reliability of your communications. The TN-5508A series includes PoE and non-PoE switches. • TN-5508A series: 8 Fast Ethernet M12 ports. -
Page 3: Recommended Optional Accessories
High Performance Network Switching Technology • IPv6 ready, certified by the IPv6 Logo Committee. • IEEE 1588 PTP (Precision Time Protocol) for the precise time synchronization of networks. • DHCP Option 82 for IP address assignment with different policies. • EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported. - Page 4 16. Product label. 17. 12 Screw holes for DIN-Rail mounting kit. 18. E2 LED: Not used by the TN-5508A series. 19. E1 LED: Not used by the TN-5508A series. 20. Gigabit Ethernet port E1 (corresponding to port 9 in the TN-5510A User's Manual).
- Page 5 TN-5508A-8PoE/5510A-8PoE Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indication 7. Power input port (male 5-pin shielded M23 connector) 8. PWR1 LED: for power input 1 9.
-
Page 6: Mounting Dimensions (Unit = Mm)
Exposed connectors (including 3, 5, and 14) when not in use must be tightly covered with protective caps (an optional accessory) to ensure IP54-rated protection. Mounting Dimensions (unit = mm) TN-5508A Series - 6 -... - Page 7 TN-5508A-8PoE Series - 7 -...
- Page 8 TN-5510A Series - 8 -...
-
Page 9: Panel/Wall Mounting
TN-5510A-8PoE Series Panel/Wall Mounting STEP 1: Mounting the TN-5508A/5510A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. -
Page 10: Din-Rail Mounting (Optional)
STEP 3: Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. Tighten the four screws for added stability. NOTE To provide greater protection from vibrations and shocks, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures. -
Page 11: Wiring Requirements
To remove the Moxa ToughNet Switch from the DIN-Rail, use a screwdriver to pull out the two spring-loaded brackets from the bottom until they are fixed in the “locked” position. Then reverse Step 3 and 4 above. Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. -
Page 12: Grounding The Toughnet Switch
Please read and follow these guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring through the same wire conduit. - Page 13 Pinouts for the power input port on the TN-5508A/5510A (non-PoE series). Pinouts for the power input port on the TN-5508A/5510A-PoE series Description Usage Connect “PWR1 Live / DC +” to the PWR1 Live / DC + positive (+) terminal when using a DC power source.
-
Page 14: Connecting The Relay Outputs
ATTENTION Do not power on the TN-5508A/5510A before connecting the M23 connector. Connecting the Relay Outputs Each TN-5508A/5510A switch has two sets of relay outputs—relay output 1 and relay output 2.The M12 A-coded 5-pin male connector on the TN-5508A/5510A front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. - Page 15 Pinouts for the 10/100BaseT(X) Ports on the TN-5508A/5510A. Housing:shield Pinouts for the 10/100/1000BaseT(X) M12 (8-pin) Port M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring - 15 -...
- Page 16 M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring ATTENTION The protective cover must be fixed properly to ensure IP54 protection. Use a torque wrench set to a torque of 4 kgf-m when tightening the screws.
-
Page 17: Led Indicators
Switch A Switch B Switch C Switch D Bypassing With the maximum segment length of category 5 twisted-pair cable being 100 meters, cable length must be considered when designing a network that utilizes this function. For example, the total length of the cables from Switch A to B and from B to C must be no more than 100 meters. -
Page 18: Specifications
When the TN switch enables the coupling function to form a back-up path in this Turbo Ring, or it is the Tail of this Turbo Chain. CPLR/ GREEN TAIL Blinking When Turbo Chain is down. When the TN switch disables the coupling function of Turbo Ring, or it is not the Tail of the Turbo Chain. - Page 19 30 VDC Power Requirements Input Voltage WV: 24-110 VDC (16.8 to 137.5 VDC) Max. Input Current TN-5508A Series: 0.28 A TN-5510A-2GTX Series: 0.52 A TN-5510A-2GTXBP Series: 0.56 A TN-5508A-8PoE Series: 7.6 A TN-5510A-8PoE-2GTX Series: 7.85 A TN-5510A-8PoE-2GTXBP Series: 7.9 A...
- Page 20 Environmental Limits Operating -40 to 75°C (-40 to 167°F) Temperature Storage Temperature -40 to 85°C (-40 to 185°F) Operating Humidity 5 to 95% (non-condensing) Regulatory Approvals Safety UL/cUL 508 Rail Traffic EN50155, EN50121-3-2, EN50121-4 FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), level 3 EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3...
