Moxa ToughNet Switch
TN-5524-8PoE

Hardware Installation Guide

Layer 2 M12 Managed PoE Ethernet Switches
First Edition, October 2012
 2012 Moxa Inc. All rights reserved.
P/N: 1802055240010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ToughNet TN-5524-8PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies ToughNet TN-5524-8PoE

  • Page 1: Hardware Installation Guide

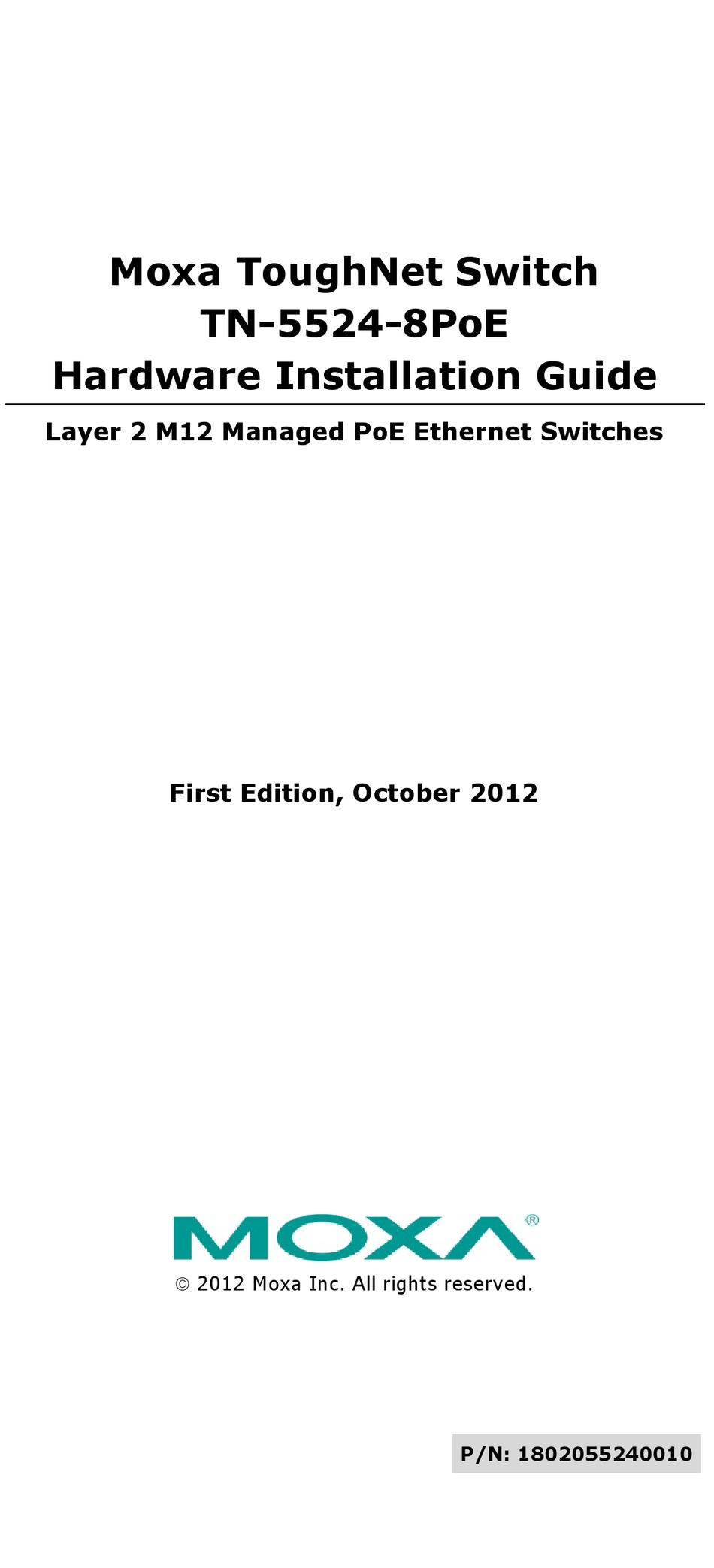

    Moxa ToughNet Switch TN-5524-8PoE Hardware Installation Guide Layer 2 M12 Managed PoE Ethernet Switches First Edition, October 2012  2012 Moxa Inc. All rights reserved. P/N: 1802055240010...
  • Page 2: Package Checklist

    EN50155/50121-3-2/50121-4 (railway applications), making the switches suitable for onboard train applications. Package Checklist Your ToughNet TN-5524-8PoE switch is shipped with the following items. If any of these items is missing or damaged, contact your customer service representative for assistance. •...
  • Page 3: Recommended Optional Accessories

    • IEEE802.1X and https/SSL to enhance network security • SNMP v1/v2c/v3 for different levels of network management • RMON for efficient network monitoring and proactive capability • Bandwidth management prevents unpredictable network status • Lock port restricts access to authorized MAC addresses only •...
  • Page 4: Fault Led

    TN-5524-8PoE Panel Layouts 1. Screw holes for panel mounting kit 2. Console port 3. Grounding screw 4. Relay output port 5. Power input voltage range indication 6. Power input port (male 6-pin shielded M23 connector) 7. PWR1 LED: for power input 1 8.
  • Page 5: Mounting Dimensions (Unit = Mm)

    ATTENTION DO NOT open or remove the vent (#15). Once the seal has been removed, the warranty becomes invalid. Exposed connectors (including 3, 5, 14 and 18) when not in use must be tightly covered with protective caps (an optional accessory) to ensure IP54/IP67-rated protection.
  • Page 6: Wiring Requirements

    NOTE To provide greater protection from vibrations and shocks, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures. Wiring Requirements WARNING Turn the power off before disconnecting modules or wires.
  • Page 7: Grounding The Toughnet Switch

    This product is intended to be mounted to a well-grounded mounting surface such as a metal panel. Connecting the Power Supplies The ToughNet TN-5524-8PoE series switches support one power supply. The M23 6-pin male connector on the TN-5524-8PoEfront panel is used for the power input.
  • Page 8: Connecting The Relay Outputs

    STEP 1: Plug your power cord connector to the power input port of the TN-5524-8PoE switch. STEP 2: Screw the nut on your power cord connector to the power input connector on the switch to ensure a tight connection. ATTENTION Before connecting the TN-5524-8PoEto the power input, make sure the power source voltage is stable.
  • Page 9 Pinouts for the 10/100BaseT(X) Ports on the TN-5524-8PoE Pinouts for the RJ45 (8-pin) Port 8-pin RJ45 MDI Port Pinouts MDI-X Port Pinouts Signal Signal M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring - 9 -...
  • Page 10: Led Indicators

    M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring LED Indicators Several LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the table below. Color State Description System LEDs Power is being supplied to power input PWR1.
  • Page 11: Specifications

    Color State Description Ports LEDs TP port’s 10 Mbps link is active. AMBER Blinking Data is being transmitted at 10 Mbps. TP port’s 10 Mbps link is inactive. (10/100M) TP port’s 100 Mbps link is active. GREEN Blinking Data is being transmitted at 100 Mbps. TP port’s 100 Mbps link is inactive.
  • Page 12: Warranty

    Power Requirements Input Voltage 24: 24 VDC (16.8 to 30 VDC) Input Current Max. 8.4 A @ 24 VDC Connection M23 6-pin male connector Overload Current Present Protection Reverse Polarity Present Protection Physical Characteristics Housing Metal, IP40 protection (with protective caps on unused ports) Dimensions (W ×...
