Page 1: Hardware Installation Guide

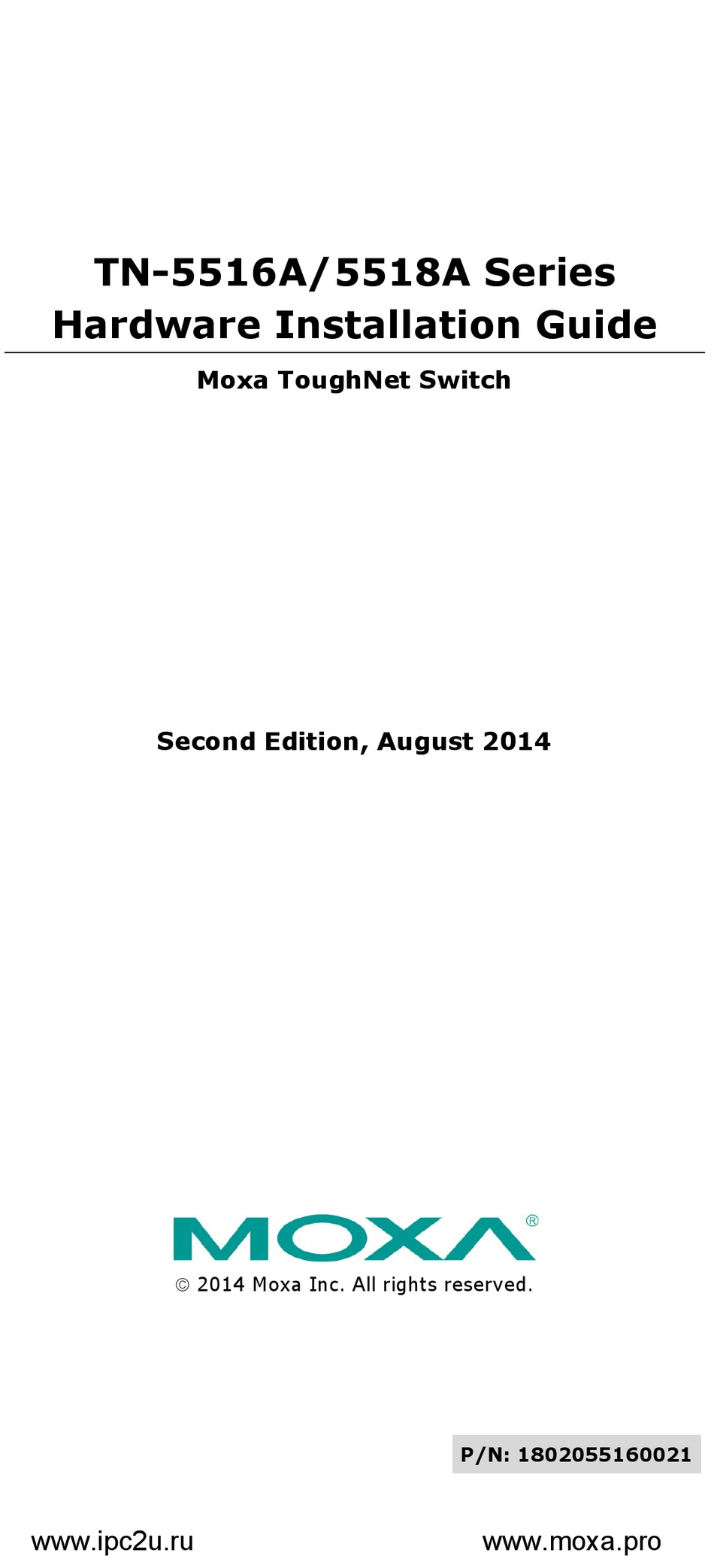

TN-5516A/5518A Series Hardware Installation Guide Moxa ToughNet Switch Second Edition, August 2014 2014 Moxa Inc. All rights reserved. P/N: 1802055160021 www.ipc2u.ru www.moxa.pro... -
Page 2: Package Checklist
The wide 24 to 110 VDC with dual power input (non-PoE series) increases the reliability of your communications. The TN-5516A series includes PoE and non-PoE switches. • TN-5516A series: 16 Fast Ethernet M12 ports. • TN-5516A-8PoE series:8 Fast Ethernet and 8 PoE Fast Ethenet M12 ports. -
Page 3: Recommended Optional Accessories
• IEEE 1588 PTP (Precision Time Protocol) for the precise time synchronization of networks • DHCP Option 82 for IP address assignment with different policies • EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported • Turbo Ring and Turbo Chain (recovery time <20 ms @250 switches),and STP/RSTP/MSTP for network redundancy •... -
Page 4: Fault Led

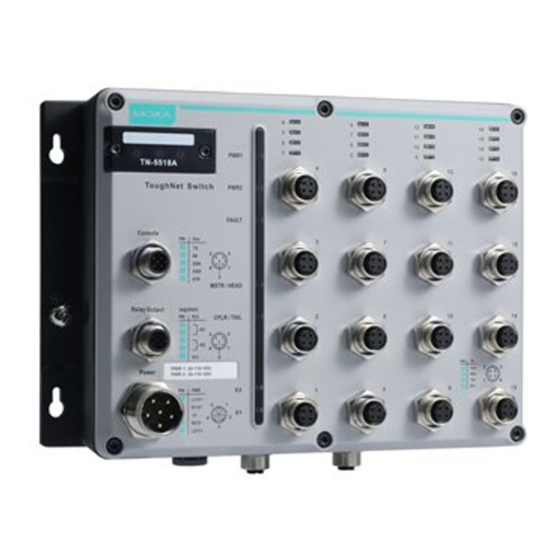

16. Product label 17. 12 screw holes for DIN rail mounting kit 18. E2 LED: Not used by the TN-5516A series 19. E1 LED: Not used by the TN-5516A series 20. Gigabit Ethernet port E1 (corresponds to port 17 in the TN-5518A User’s Manual) - Page 5 TN-5516A-8PoE/5518A-PoE Panel Layouts 1. Model name 2. Screw holes for panel mounting kit 3. Console port 4. Grounding screw 5. Relay output port 6. Power input voltage range indicator 7. Power input port (male 5-pin shielded M23 connector) 8. PWR1 LED: for power input 1 9.
-
Page 6: Mounting Dimensions (Unit = Mm)
Mounting Dimensions (unit = mm) TN-5516A Series - 6 - www.ipc2u.ru www.moxa.pro... - Page 7 TN-5516A-8PoE Series - 7 - www.ipc2u.ru www.moxa.pro...
- Page 8 TN-5518A Series - 8 - www.ipc2u.ru www.moxa.pro...
-
Page 9: Panel/Wall Mounting
TN-5518A-8PoE Panel/Wall Mounting STEP 1: Mounting the TN-5516A/5518A to a wall requires 4 screws. Use the ToughNet switch as a guide to mark the correct positions of the 4 screws. STEP 2: Use the 4 screws in the panel mounting kit. If you would like to use your own screws, make sure the screw head is between 6.0 mm and 7.0 mm in diameter and the shaft is less than 4.0 mm in... -
Page 10: Din Rail Mounting (Optional)
STEP 3: Once the screws are fixed in the wall, hang the ToughNet switch on the 4 screws through the large opening of the keyhole-shaped apertures, and then slide the switch downwards. Tighten the four screws for added stability. NOTE To provide greater protection from vibration and shock, use screws with shaft diameter between 6.0 mm and 7.0 mm, and fix the ToughNet switch onto the wall directly through the large opening of the keyhole-shaped apertures. -
Page 11: Wiring Requirements
To remove the Moxa ToughNet Switch from the DIN rail use a screwdriver to pull out the two spring-loaded brackets from the bottom until they are fixed in the “locked” position. Then reverse Steps 3 and 4 above. Wiring Requirements WARNING Turn the power off before disconnecting modules or wires. -
Page 12: Grounding The Toughnet Switch
Please read and follow these guidelines: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. NOTE: Do not run signal or communications wiring and power wiring through the same wire conduit. - Page 13 Pinouts for the power input port on the TN-5516A/5518A (non-PoE series) Pinouts for the power input port on the TN-5516A/5518A-PoE series Description Usage Connect “PWR1 Live / DC +” to the PWR1 Live / DC + positive (+) terminal when using a DC power source.
-
Page 14: Connecting The Relay Outputs
Connecting the Relay Outputs Each TN-5516A/5518A switch has two sets of relay outputs—relay output 1 and relay output 2. The M12 A-coded 5-pin male connector on the TN-5516A/5518A’s front panel is used for the two relay outputs. Use a power cord with an M12 A-coded 5-pin female connector to connect the relay contacts. - Page 15 Pinouts for the 10/100/1000BaseT(X) M12 (8-pin) Port M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring M12 (4-pin, M) to M12 (4-pin, M) Straight-Trough Cable Wiring M12 (4-pin, M) to RJ45 (8-pin) Cross-Over Cable Wiring - 15 - www.ipc2u.ru www.moxa.pro...
- Page 16 M12 (4-pin, M) to RJ45 (8-pin) Straight-Trough Cable Wiring ATTENTION The protective cover must be fixed properly to ensure IP54 protection. Use a torque wrench set to a torque of 4 kgf-m when tightening the screws. Note that applying a larger torque may damage the plastic protective cover.
-
Page 17: Led Indicators
may occur when redundancy protocols such as RSTP or TurboRing™ are applied. LED Indicators Several LED indicators are located on the ToughNet switch’s front panel. The function of each LED is described in the table below. Color State Description System LEDs Power is being supplied to power input PWR1. -
Page 18: Specifications
Specifications Technology Standards IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3ab for 1000BaseT(X) (TN-5518A series only) IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP... -
Page 19: Warranty
Power Requirements Input Voltage WV: 24-110 VDC (16.8 to 137.5 VDC) Max. Input Current TN-5516A Series: 0.39 A TN-5518A-2GTX Series: 0.57 A TN-5518A-2GTXBP Series: 0.68 A TN-5516A-8PoE Series: 8.37 A TN-5518A-8PoE Series: 8.52 A TN-5518A-8PoE-2GTXBP Series: 8.66 A Connection M23 6-pin male connector... - Page 20 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 20 - www.ipc2u.ru...
