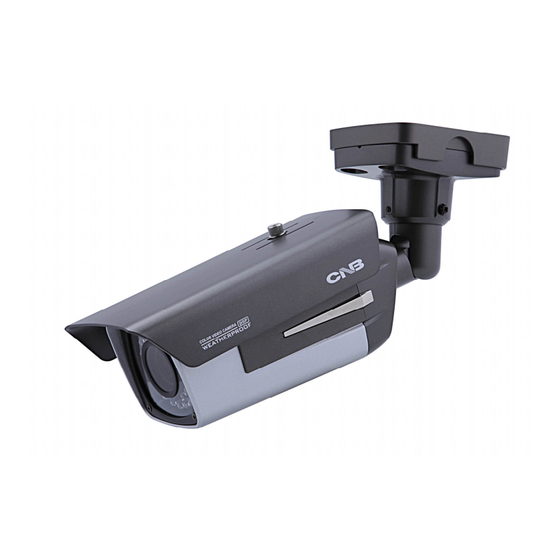

- Page 1 Ver. 1.0 XNET Network Weatherproof Camera (IXP3035VR) Installation Manual...
-
Page 2: About This Manual
Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by misuse (i.e. use of parts not suggested) will not be covered under warranty. -
Page 3: Table Of Contents
XNET Network Weatherproof Camera Installation Manual Index 1. About XNET ........................4 1.1. About XNET ..........................4 1.2. Features of XNET ........................4 1.3. Applications ..........................4 2. Product Description ......................5 2.1. Contents ........................... 5 2.2. Product Information ........................5 2.3. -
Page 4: About Xnet
XNET Network Weatherproof Camera Installation Manual 1. About XNET XNET is an internet based security and surveillance system presented by CNB. XNET is compatible with various networks with its easy installation, various user interfaces, and multi-functional compressor Codec such as H.264 and MJPEG. XNET provides reliable real-time surveillance by SXGA real time video/ audio, event-based local storage, and hybrid IP technology that can be used with the existing analog CCTV systems. -
Page 5: Product Description
L-WRENCH : 1EA SCREW 4EA Accessory Wall Anchors 4EA Sunvisor Screws : 1EA Install CD XNET Viewer Program (IXP3035VR) IP-Installer (CNB-CMS) A software for detecting the XNET Weatherproof Camera A software to monitor/record live Video camera in the network and assigning... -
Page 6: Hardware Designation
XNET Network Weatherproof Camera Installation Manual ① Vari-focal Lens : 3-10mm Vari-focal Lens ② IR LED : IR Led light controlled by CDS Sensor. ③ CDS Sensor : senses the light intensity (low light level). ④ Casing Screws (front - 4EA) : attach the front and rear bodies together ⑤... -
Page 7: Internal Configuration
XNET Network Weatherproof Camera Installation Manual Micro SD Card Slot : ① ① Video images can be stored into a Micro SD card when an event occurs. Please use less than 16 GB MICRO SD Memory. Figure 2-3. MICRO SD CARD Video Out: Analog Video output. -
Page 8: Connecting To Cables
XNET Network Weatherproof Camera Installation Manual INPUT, OUTPUT Alarm, RS-485 Connection These wires connect to Alarm input/output devices. Alarm Sensor Input: Connect to an Alarm sensor device such as an IR Sensor or a Heat sensor. The operation of this input can be configured to either normally close or normally open. - Page 9 XNET Network Weatherproof Camera Installation Manual Analog Video Output This output can be used to check the video during the installation. Use the supplied BNC connector Connect the adapter to a video cable with BNC termination. (Select Video Out in menu to enable this output) Audio Connection MIC/Line Input (Mono) RED Connect this wire to the Audio input.
-
Page 10: Alarm Device Connection
XNET Network Weatherproof Camera Installation Manual Alarm Input Various alarm sensor types (IR, heat, magnetic, etc.) can be connected to Alarm input (+)/(-) terminal as shown in figure 2.5. (NC or NO can be configured in Menu.) Please note that the Alarm Sensor device requires a separate power source. Internal Circuitry External Circuitry Alarm Output... -
Page 11: Adjusting Zoom And Focus
XNET Network Weatherproof Camera Installation Manual Zoom and focus of the lens can be adjusted at the bottom of the camera as shown in the picture. Use a flat head screw driver to turn the lever. Sunvisor Install Sunvisor to the Camera’s main body using Sunvisor, washers, and screws. 11 / 23... - Page 12 XNET Network Weatherproof Camera Installation Manual Mounting the Camera Ceiling Mount type Wall Mount Type Mount the Bracket Base on the installation surface using the four 6mm screws provided. Mount the camera’s main body on the Bracket Base using the four 5/16” screws provided as shown in the figure.
-
Page 13: Software Installation
XNET Network Weatherproof Camera Installation Manual 3. Software Installation This is a quick installation guide for XNET software. XNET software helps you monitor the XNET’s Video and Audio in an easy user interface. If you have questions about details not explained in this section or if the http://www.cnbtec.com product is not functioning as described, please refer to FAQ on our homepage at before contacting the store. - Page 14 XNET Network Weatherproof Camera Installation Manual NOTE: IP address of the PC can be set in anywhere between 192.168.123.2 and 192.168.123.254 except for 192.168.123.100, which is taken by the XNET camera. 3. Insert the Setup CD into your CD-ROM drive, and install IPInstaller software.
- Page 15 XNET Network Weatherproof Camera Installation Manual 7. XNET IP Installer will launch automatically as shown below. Double click on the XNET camera from the list. 15 / 23...
- Page 16 XNET Network Weatherproof Camera Installation Manual 8. When the XNET camera is successfully connected to your PC, you’ll see the camera’s IP address on the IP installer software. (Internet Explorer will prompt you to install ActiveX. Please accept the ActiveX download in order to view video. ) NOTE: Click on Setting in the main screen to change the configurations of the XNET camera.
- Page 17 XNET Network Weatherproof Camera Installation Manual Connecting the XNET Camera to a router Xnet camera can be connected to the router of an existing LAN. Please connect the XNET camera to a router using a LAN cable as shown below: NETWORK HUB COMPUTER Direct Network...
-
Page 18: Ip-Installer And Ip Address Configuration
XNET Network Weatherproof Camera Installation Manual In order to have the XNET camera viewable on the network, an IP address has to be assigned first. A software called IP-Installer (provided Installation also downloadable from http://www.cnbtec.com) will help you assign the IP address easily. If your network uses a DHCP server, the server will automatically assign an IP addresses to the XNET camera. - Page 19 XNET Network Weatherproof Camera Installation Manual 2. Select the camera of which you wish to change the IP address and click on (Set IP Address) icon to bring up the box shown in Figure 3-3. Figure 3-3. Set IP Address box 3.
-
Page 20: Using Web Viewer
XNET Network Weatherproof Camera Installation Manual 4. Using Web Viewer You can connect to the XNET camera using your internet browser or a software called “XNET-CMS”. This section covers the connection through your web browser only. For instructions on how to configure the network connection using the XNET-CMS software, please refer to the manual for the... -
Page 21: Web Viewer Page
XNET Network Weatherproof Camera Installation Manual Web viewer page contains a Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen in which all XNET features can be configured. -
Page 22: Specification
XNET Network Weatherproof Camera Installation Manual 5. Specification Specifications XNET IP HD – IXP3035VR Signal System Progressive image processing Scanning System 4:3 Progressive Pixel Clock 54MHz Image Sensor 1/3" Progressive CMOS Sensor Sync. System Internal Effective Pixels Number 1280 (H) x 1024(V) 1.3 Mega... - Page 23 XNET Network Weatherproof Camera Installation Manual 23 / 23...
