Kenwood DNX5360 Instruction Manual

Gps navigation system dnx series; monitor with dvd receiver ddx series
Hide thumbs

Advertisement

Quick Links

x
Download this manual
41
Bluetooth Audio Control
41
Before Use
67
Registering Bluetooth Unit
69
Bluetooth Unit Connection
See also: Installation Manual
Table of Contents
GPS NAVIGATION SYSTEM
DNX SERIES
DNX5360 DNX5360M
MONITOR WITH DVD RECEIVER
DDX SERIES
DDX5036 DDX5036M

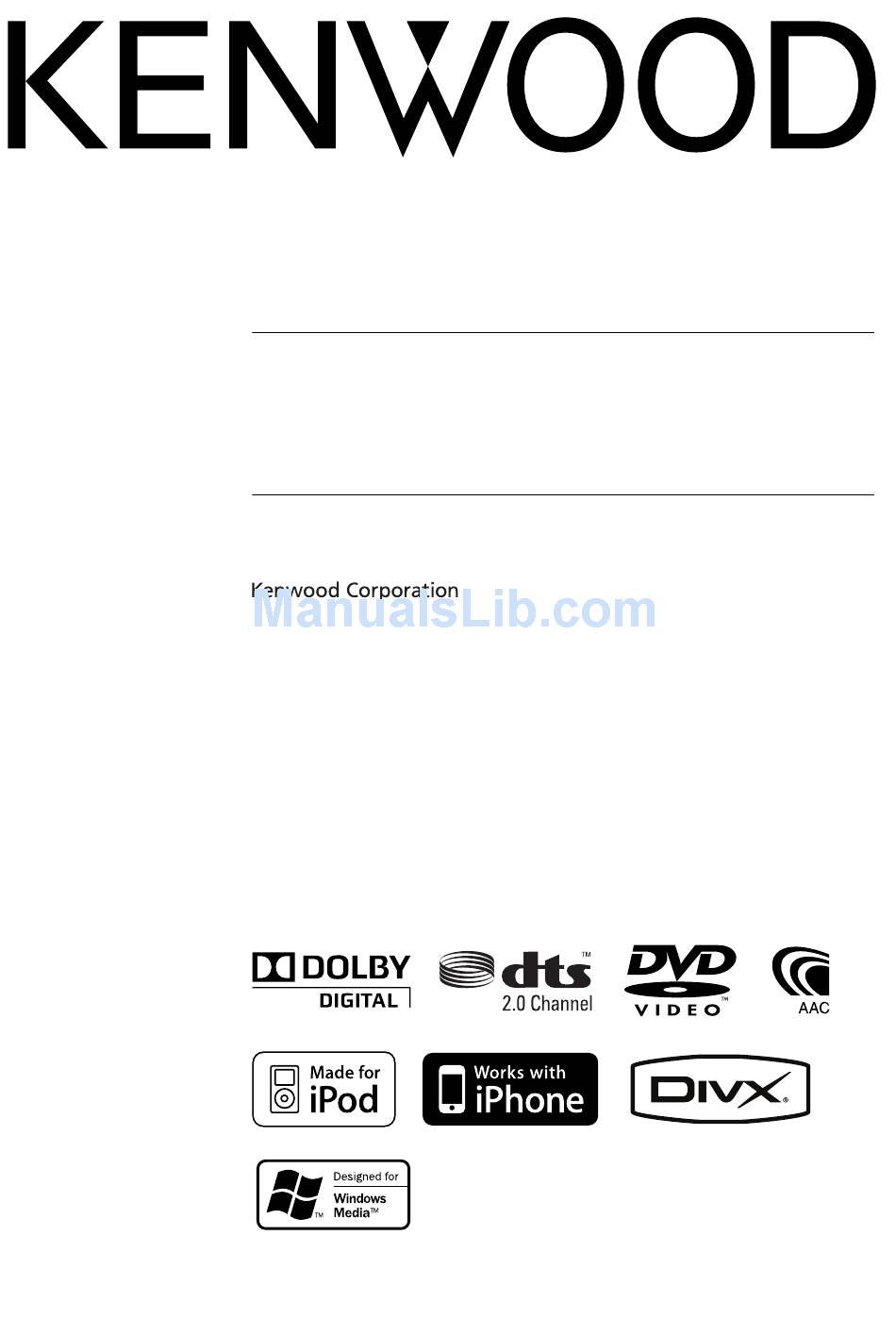

INSTRUCTION MANUAL
This instruction manual is used to describe models listed below.
Model availability and features (functions) may differ depending on the country and
sales area.
• Type 2
(DVD Region Code 2 area)
• Type 3
(DVD Region Code 3 area)
• Type 4
(DVD Region Code 4 area)
• Type 6
(DVD Region Code 6 area)
© B64-4615-00/02 (MW/M2W/XW/VV)
