EP-6VBA2
NOTE: If the hard disk Primary Master/Slave and Secondary Master/
Slave are set to Auto, then the hard disk size and model will be auto-
detected.
NOTE: The "Halt On:" field is used to determine when to halt the system
by the BIOS if an error occurs.
NOTE: Floppy 3 Mode support is a mode used to support a special 3.5"
drive used in Japan. This is a 3.5" disk that stores only 1.2 MB, the
default setting for this is disabled.
4-2 BIOS Features Setup
Selecting the "BIOS FEATURES SETUP" option in the CMOS SETUP UTILITY
menu allows users to change system related parameters in the displayed menu.
This menu shows all of the manufacturer's default values for the EP-6VBA2.
Pressing the [F1] key will display a help message for the selected item.

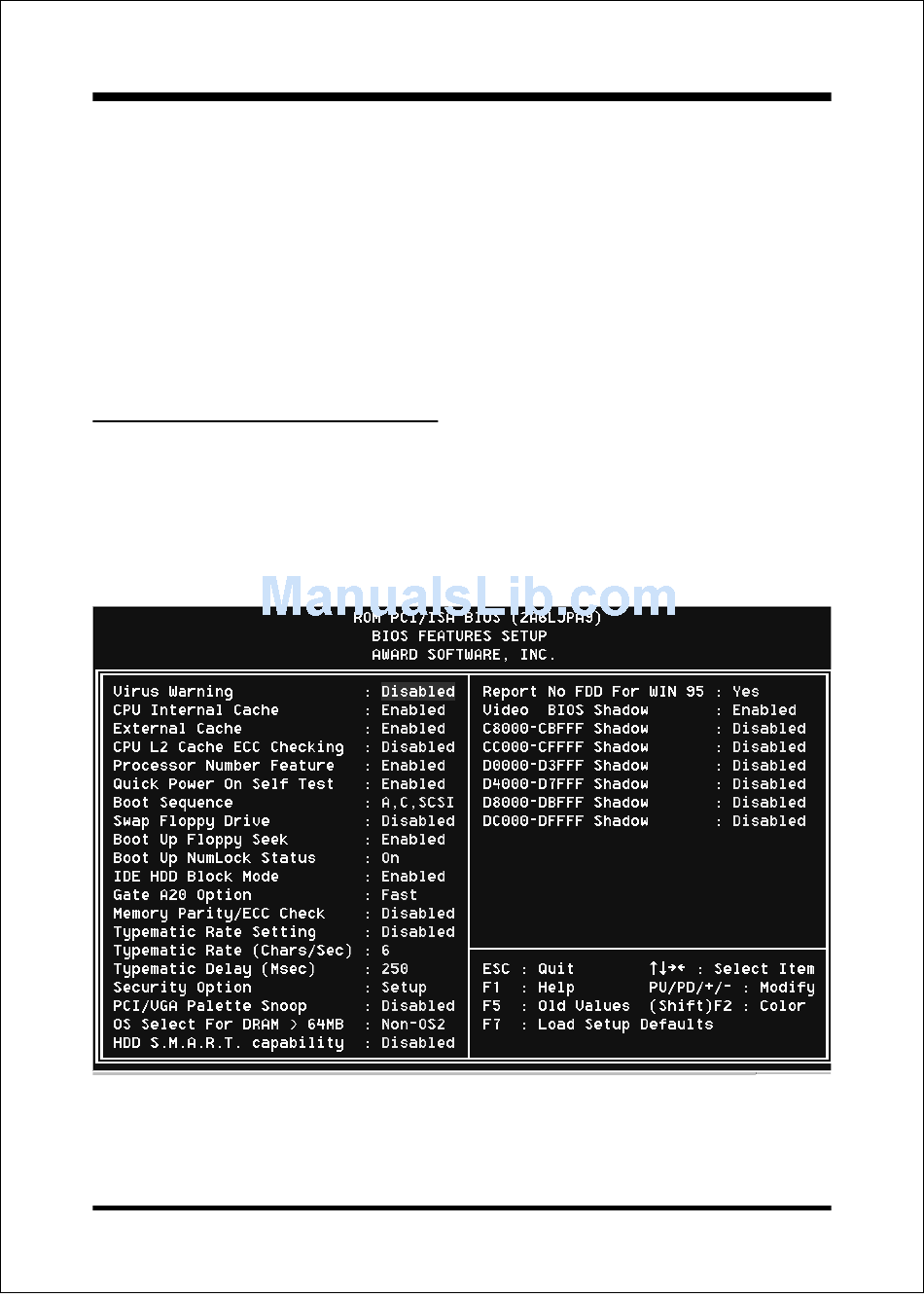

Figure 3: BIOS Features Setup
BIOS
Page 4-3
