Device Connectors

Please install the motherboard into the chassis.
Now that your motherboard is installed you are ready to connect all your connec-
tions (figure 7).
PS/2 Mouse
PS/2
KEYBOARD
J2,J3: Chassis Panel Connector
• Power LED, Speaker, Reset, Turbo LED, HDD LED, IR Conn., Sleep/
Power_ON
J4: CPU Fan Power
• A plug-in for the CPU Fan Power
J6: Chassis Fan Power
• A plug-in for the chassis Fan Power
J7: WOL (Wake On Lan) Connector
J8: WOM (Wake On Modem) Connector
IDE1: Primary IDE Connector
IDE2: Secondary IDE Connector
FDD1: Floppy Controller Connector
PW1: ATX Power Connector
• 20-pin power connector
CD1: CD Audio Connector
AUX1: AUX Audio Connector
MODEM1: Telephony Connector
• Pin1(Audio_in), Pin2/Pin3(GND), Pin4(Mic-out to Modem)
Page 3-8
parallel port
USB port
COM1

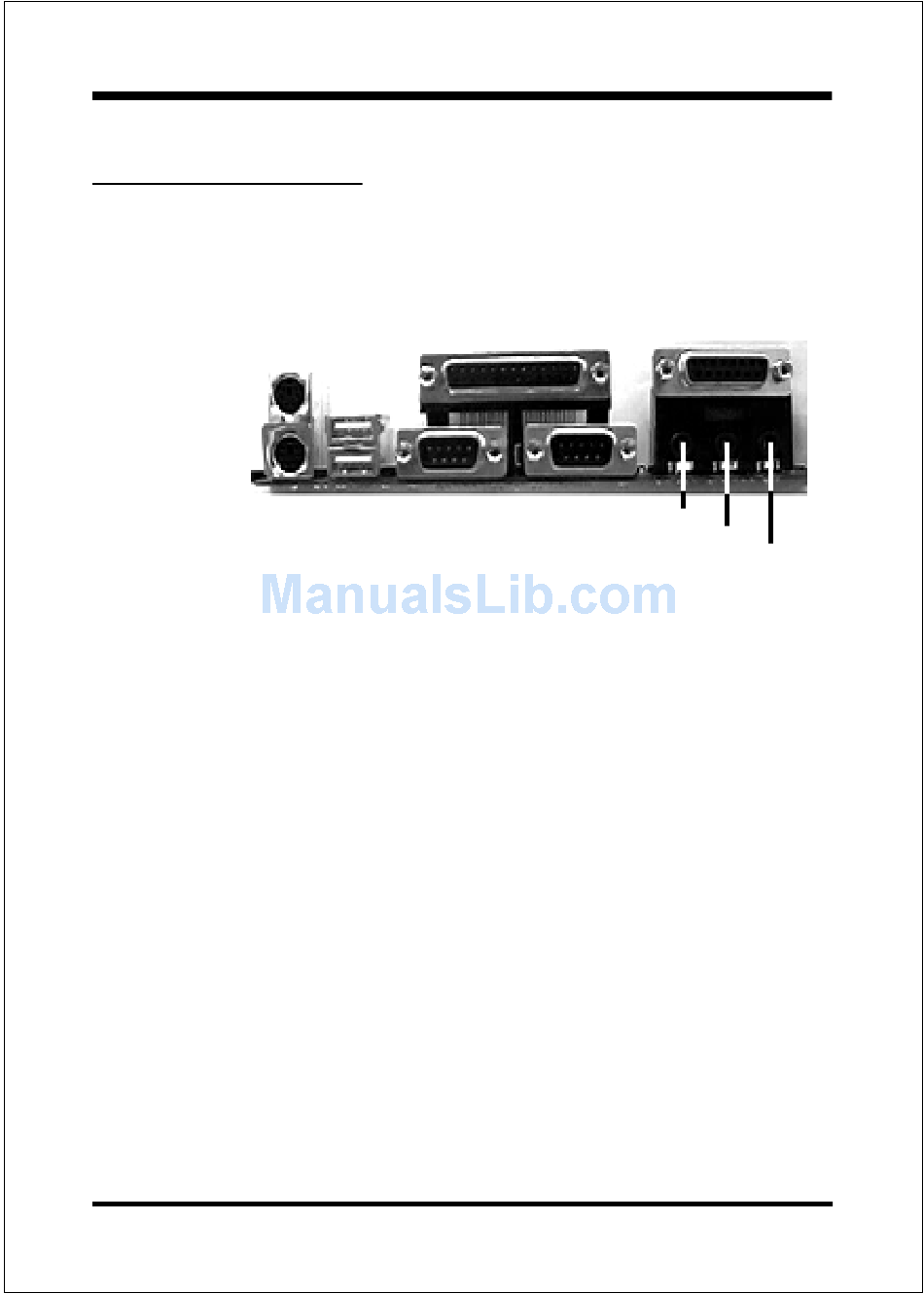

Figure 7
EP-6VBA2
Joystic/Midi port
COM2
Speaker
Line_in
MIC
