EP-6VBA2

EP-6VBA2 Form-Factor

The EP-6VBA2 is designed with ATX form factor - the new industry standard of
chassis. ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees
within the chassis enclosure and a new mounting configuration for the power
supply. With these changes the processor is relocated away from the expansion
slots, allowing them all to hold full length add-in cards. ATX defines a double
height aperture to the rear of the chassis which can be used to host a wide range of
onboard I/O. Only the size and position of this aperture is defined, allowing PC
manufacturers to add new I/O features (e.g.; TV input, TV output, joystick, modem,
LAN, etc.) to systems. This will help systems integrators differentiate their
products in the marketplace, and better meet your needs.
• By integrating more I/O down onto the board and better positioning the hard
drive and floppy connectors material cost of cables and add-in cards is
reduced.
• By reducing the number of cables and components in the system, manufactur-
ing time and inventory holding costs are reduced and reliability will increase.
• By using an optimized power supply, it's possible to reduce cooling costs and
lower acoustical noise. An ATX power supply, which has a side-mounted fan,
allows direct cooling of the processor and add-in cards making a secondary
fan or active heatsink unnecessary in most system applications.
Expandable I/O
Full length
slots
Floppy / IDE
connectors
close to
peripheral

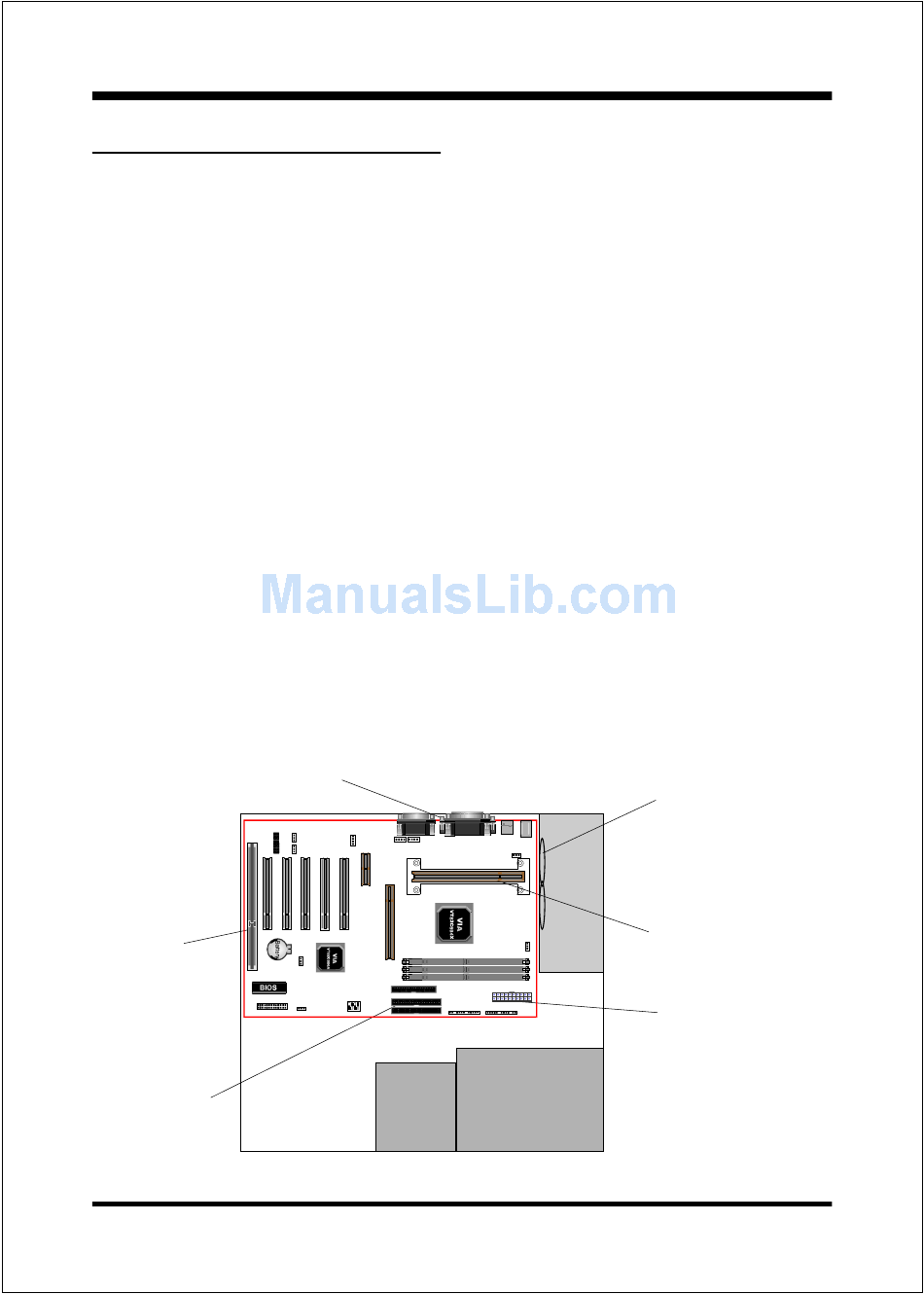

Figure 2: Summary of ATX chassis features
bays
ATX
Power
Supply
3 1/2" 5 1/4"
Bay Bay
Introduction
Single chassis
fan for system
CPU located near
Power Supply
ATX power connec-
tor
Page 1-5
