EP-6VBA2
DIMM Module Installation

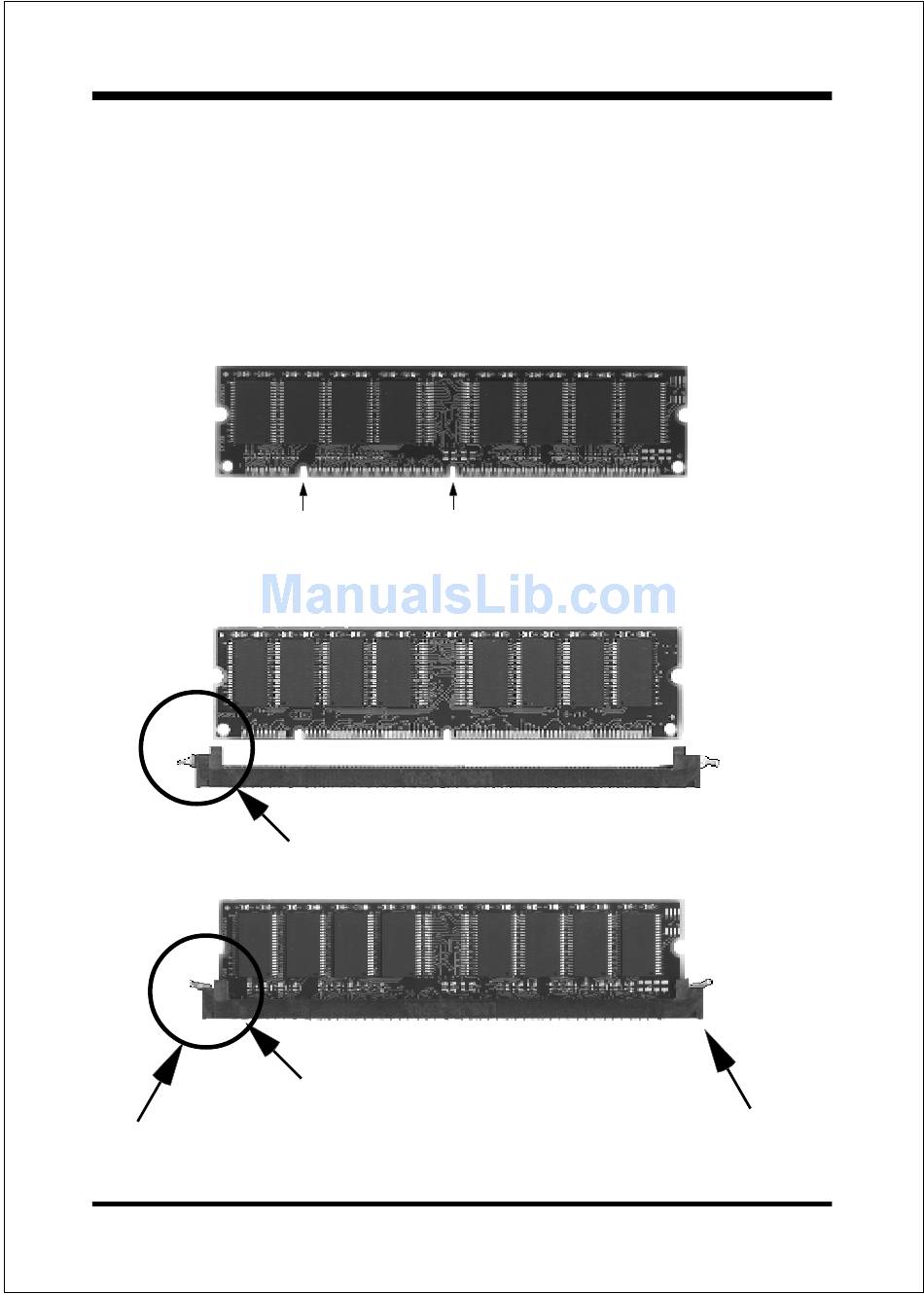

Figure 3 displays the notch marks and what they should look like on your DIMM
memory module.
DIMMs have 168-pins and two notches that will match with the onboard DIMM
socket. DIMM modules are installed by placing the chip firmly into the socket at a
90 degree angle and pressing straight down (figure 4) until it fits tightly into the
DIMM socket (figure 5).
LEFT KEY ZONE
(UNBUFFERED)
To remove the DIMM module simply press down both of the white clips on
either side and the module will be released from the socket.
CENTER KEY ZONE
(3.3 V DRAM)
Figure 3
Figure 4
DIMM Module clip before installation
Figure 5
DIMM Module clip after installation
Installation
Page 3-5
