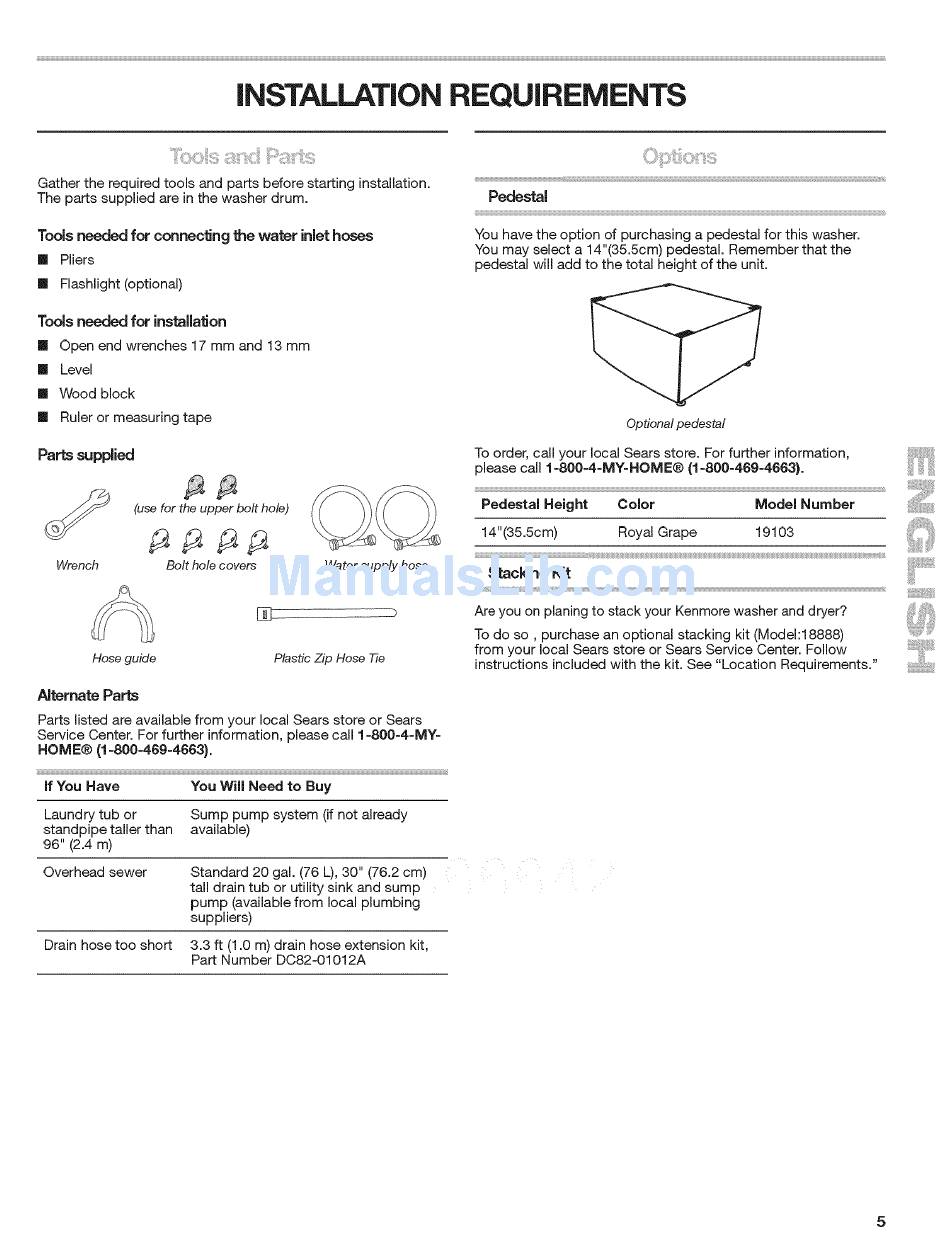

iNSTALLATiON REQUIREMENTS
.....
_!_i;OOiiii
S _i!!_!i!ii_ili_i:i;:ii
iii::::_;ii!!_!i!i!i!;ili::S
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Tools needed
for connecting
the water inlet hoses
[]
Pliers
[]
Flashlight (optional)
Pedestal
You have the option of purchasing
a pedestal for this washer.
You may select a 14"(35.5cm)
pedestal.
Remember
that the
pedestal
will add to the total height of the unit.
Tools needed
for installation
[]
Open end wrenches
17 mm and 13 mm
[]
Level
[]
Wood block
[]
Ruler or measuring tape
Parts supplied
_
(use for the upper bolt hole)
Wrench
Bolt hole covers
Water supply hose
Hose guide
Plastic Zip Hose Tie
Alternate Parts
Parts listed are available
from your local Sears store or Sears
Service Center. For further information,
please call 1-800-4-MY-
HOME@ (1-800-469-4663).
Optional pedesta[
To order, call your local Sears store. For further information,
please call 1-800-4-MY-HOME@
(1-800-469-4993).
Pedestal Height
Color
Model Number
14" (35.5cm)
Royal Grape
19103
Stacking
Kit
i
....................................................................................................................................................................................................................................
Are you on planing to stack your Kenmore washer and dryer?
To do so, purchase an optional
stacking
kit (Model:18888)
from your local Sears store or Sears Service Center. Follow
instructions
included with the kit. See "Location
Requirements."
if You Have
You Will Need to Buy
Laundry tub or
Sump pump system (if not already
standpipe
taller than
available)
96" (2.4 m)
Overhead sewer
Standard
20 gal. (76 L), 30" (76.2 cm)
tall drain tub or utility sink and sump
pump (available from local plumbing
suppliers)
Drain hose too short
3.3 ft (1.0 m) drain hose extension
kit,
Part Number DC82-O1012A
