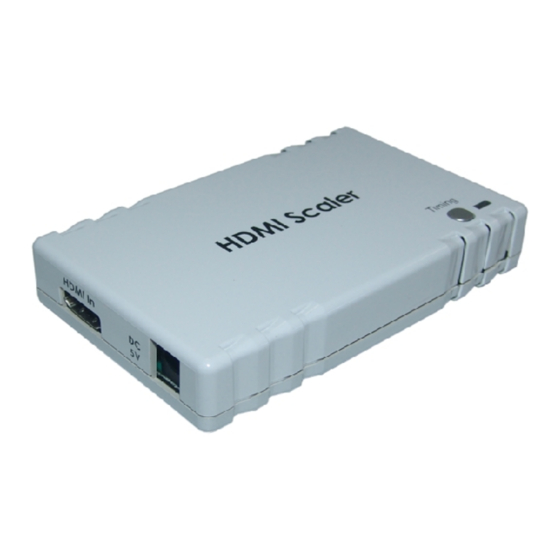

- Page 1 HDMI to HDMI Scaler Box ID# 869 Operation Manual...
- Page 2 Introduction This Scaler Box is designed to display your HD images on a HDTV. It can upscale HDMI input sources to HDMI output for a wide-range of HD resolutions; the resolution supported include XGA/UXGA/720p/1080p/1366 x 768/1440 x 900/1400 x 1050. This unit provides you with a variety of output resolutions in order to give you the best picture quality.
- Page 3 Operation Controls and Functions Front Panel 1. HDMI IN: This slot is where you plug in your input source device with an HDMI cable in order for your source to send a signal. 2. DC 5V: plug the 5V DC power supply into the unit and connect the adapter to AC wall outlet.
-
Page 4: Specifications
Top Panel Timing button: Press this button once to show both the input and output displays resolution and while the OSD is still on press it again to select the output resolution from 720p to 1080p/1280 x 800/1366 x 768/1920 x1200(RB). - Page 5 * Cable tested with 24AWG cable, using cables of another type may result in a different operating distance. * Figures provided in this manual are reference figures only, actual figures may depend on source and display use with cable specification. Connection...
