Introduction
The HDMI 4K2K Scaler is designed to upscale 1080p@24 signal into 4K2K or
downscale 4K2K signal into 1080p@24. With friendly and simple design which
allows user with direct viewing on input resolution and switching output signal format
up to 2 simultaneous HDMI. The HDMI 4K2K Scaler is your best media between HD
and Ultra HD signal.
Applications
System
Requirements
Features
Operation
Controls and
Functions
Ultra HDMI source displaying on standard LED TV/monitor
•
• Ultra HDMI source displaying on 4K2K TV/Panel
• Standard Blu-ray/DVD player source displaying on 4K2K TV/Panel
Standard Blu-ray/DVD player source displaying on standard LED TV/monitor
•
Input source equipment such as DVD/Blu-ray(4K2K) player and output HDMI
(4K2K) TV/display
• Supports HDMI signal upscale to 4K2K or downscale to
• Supports HDMI signal bypass
• Simultaneous HDMI outputs
• Friendly and simple to use

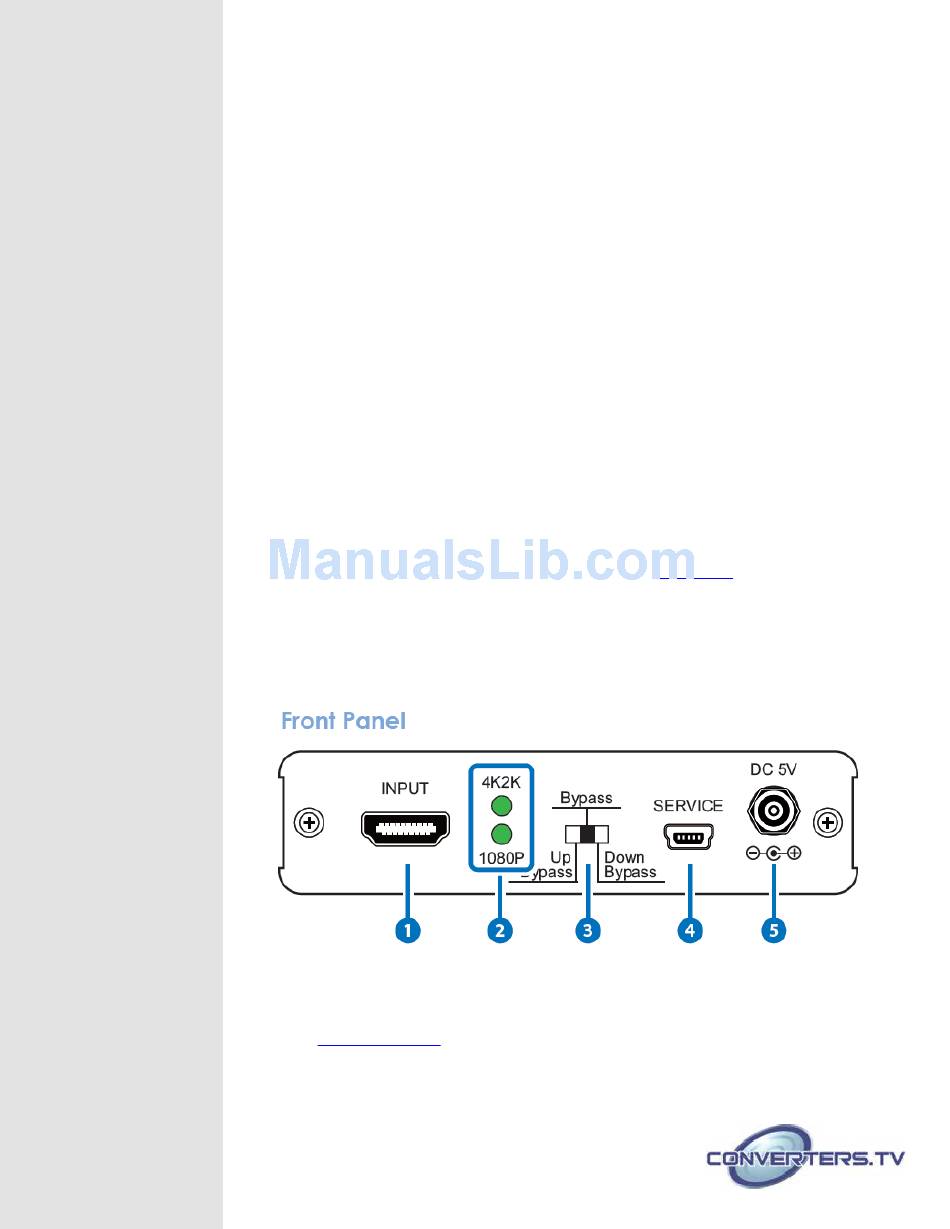

1.INPUT: Connect from HDMI source equipment such as Blu-ray/DVD player with
or without 4K2K signal.
2 4K2K / 1080P LED: These LED will illuminate according to input source signal's
resolution when both LED are illuminating it state the input source's signal does not
belong to 4K2K/1080P@24.
3 Bypass Switch: Switch this switch to select the input source signal to be
upscale/downscale or bypass it to output display.
1080p@24
