Summary of Contents for Converters.TV 912
- Page 1 Video & Component to HDMI Scaler Box - ID# 912 Operation Manual...
- Page 2 Introduction The Video & Component to HDMI Scaler Box is specially designed for low resolution analog YCbCr contents video to be upscaled and displayed on a HD TV/monitor. This device is suitable for iPod & MPEG 4 consumer video devices to enjoy displayed video images on a big screen TV with HD resolution.
- Page 3 Operation Controls and Functions Top Panel 1 . Touch panel LED indicators: This is a touch panel controller, users can touch on the symbol or letters to select source and output and the blue LEDs will illuminate according to user’s selection. Top Symbol represent power: press it once to turn ON the device and ●...
-
Page 4: Front Panel

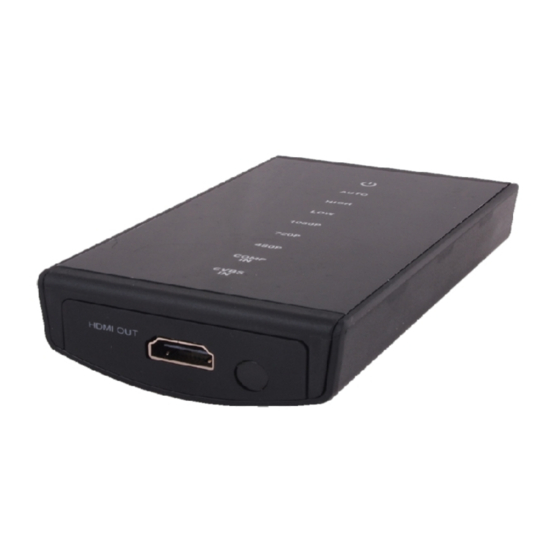

Front Panel . HDMI OUT: This slot is to connect the HD TV/monitor with HDMI cable for output image signal. . IR receiver window: The IR receiver only receives the signal from the remote control included in the package. Rear Panel . - Page 5 Remote Control 1. INPUT: Press this button to switch input source in between CVBS or Component. 2. Power: Press this button to turn ON or set the device to standby mode. 3. OUTPUT 480p/720p/1080p: Press these hot keys to select the desire output resolution of 480p/720p or 1080p.
- Page 6 Connection...
