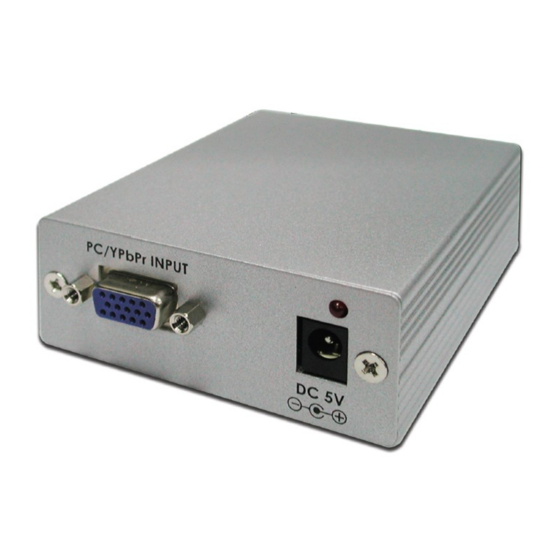

- Page 1 PC/HD to DVI Format Converter ID # 731 Operation Manual...
- Page 2 Introduction This is a PC/HD to DVI format converter box. This box can convert and upgrade your display image from analog into digital and VA into HD. Whether your sources comes in from PC or traditional RGB signal through the PC/HD to DVI Format Converter, the image will be transformed into DVI signal.
- Page 3 ⑤ Input format switch: - Set the switch to YPbPr when the output format of your source equipment is component YPbPr. Use VGA to 3 RCA adaptor cable to connect between your source equipment and the unit. - Set the switch to RGB when the output format of your source equipment is RGBHV.
- Page 4 Connection Specifications Input Analog HD-15 (RGBHV or YPbPr) Input Signal RGB: 0.7 Vp-p 75 ohm H + V: 3 to 5 Vp-p or Y :1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm Output DVI-I connector (only DVI-D output) Output Signal Digital RGB or YPbPr data bit stream Compliant With DVI Rev 1.0 up to 165MHz...
