- Page 1 HDMI to Video Scan Converter w/Audio output - ID# 921 Operation Manual...

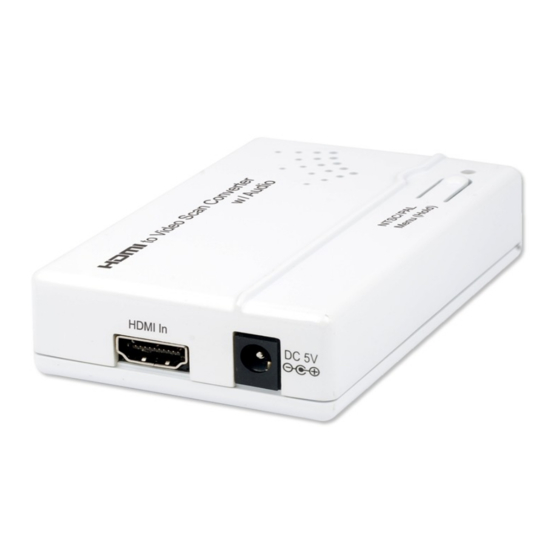

- Page 2 Introduction HDMI to Video Scan Converter w/Audio output is designed to convert a digital HDMI source signal to an analog Video / Audio PAL or NTSC output via Composite Video. Now you can display High Def video content in Standard Def 480i or 576i resolution to suit most TV screens and monitors.
- Page 3 Operation Controls and Functions Top Panel . NTSC/PAL MENU (3SEC): Press this button to bring up the OSD which will display the input timing and output TV system information. While the OSD is still displaying press the button again to switch output TV system from NTSC to PAL or from PAL to NTSC.
- Page 4 Right Panel OUTPUT L/R: These slots are to connect to the active speaker or the TV/ monitor with input L/R jack with RCA cable for output audio sound. OUPUT VIDEO: This slot is to connect the display TV or monitor with RCA cable for output image display.
- Page 5 Aspect Adjustment: There are a total of 5 different adjustments under Aspect which include: Full Screen, Letterbox, Pan & Scan and Auto TV 4:3 & 16:9. Full Screen: To allow the image to fill out the screen of the TV. Letterbox: To fit the output image closer to the input source, compressed the upper and lower image.
-
Page 6: Specifications
Specifications Input Port 1 x HDMI, Output Port 1 x CVBS, 1 x L/R RCA Jack HDMI Input Resolution 480p, 576p & 720p, VGA@60 / 72 / 75 / 85, SVGA@56 / 0 / 72 / 75 / 85, XGA@60 / 70 / 75, WXGA(15:9 &... - Page 7 Connection...
