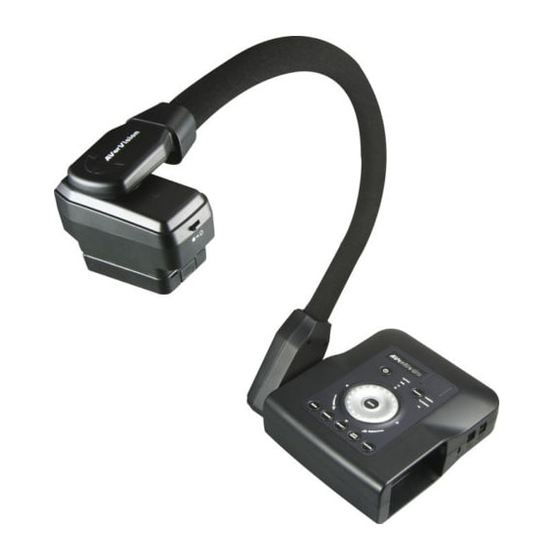

Avermedia CP130 Quick Manual

1.
AVerVision

Connect the Power.

CP series
Quick Guide
2.

Select the video display output.

Switch
a. RGB
b. TV
a. RGB Connection
LCD/DLP projector
b. TV Connection
I N P U T
SCART
S-VIDEO
Te l e v i s i o n
Power adapter
Power cord
AVerVision Port Device
LCD/DLP projector
Te l e v i s i o n
RGB cable
S-Video to SCART cable
S-Video cable
3.
Use the shuttle wheel to
zoom in and out the
image.
Wall outlet
4.
Press to adjust
the focus automatically.
For non-autofocus type,
adjust the focus from the
focus ring to improve the
quality of the picture.
5.
Press to capture
and save the image in
the built-in memory.
6.
Press to switch
between Camera,
Playback and PC mode.
7.
Press to pause or
resume the live image
from the camera.
Focus
Ring
