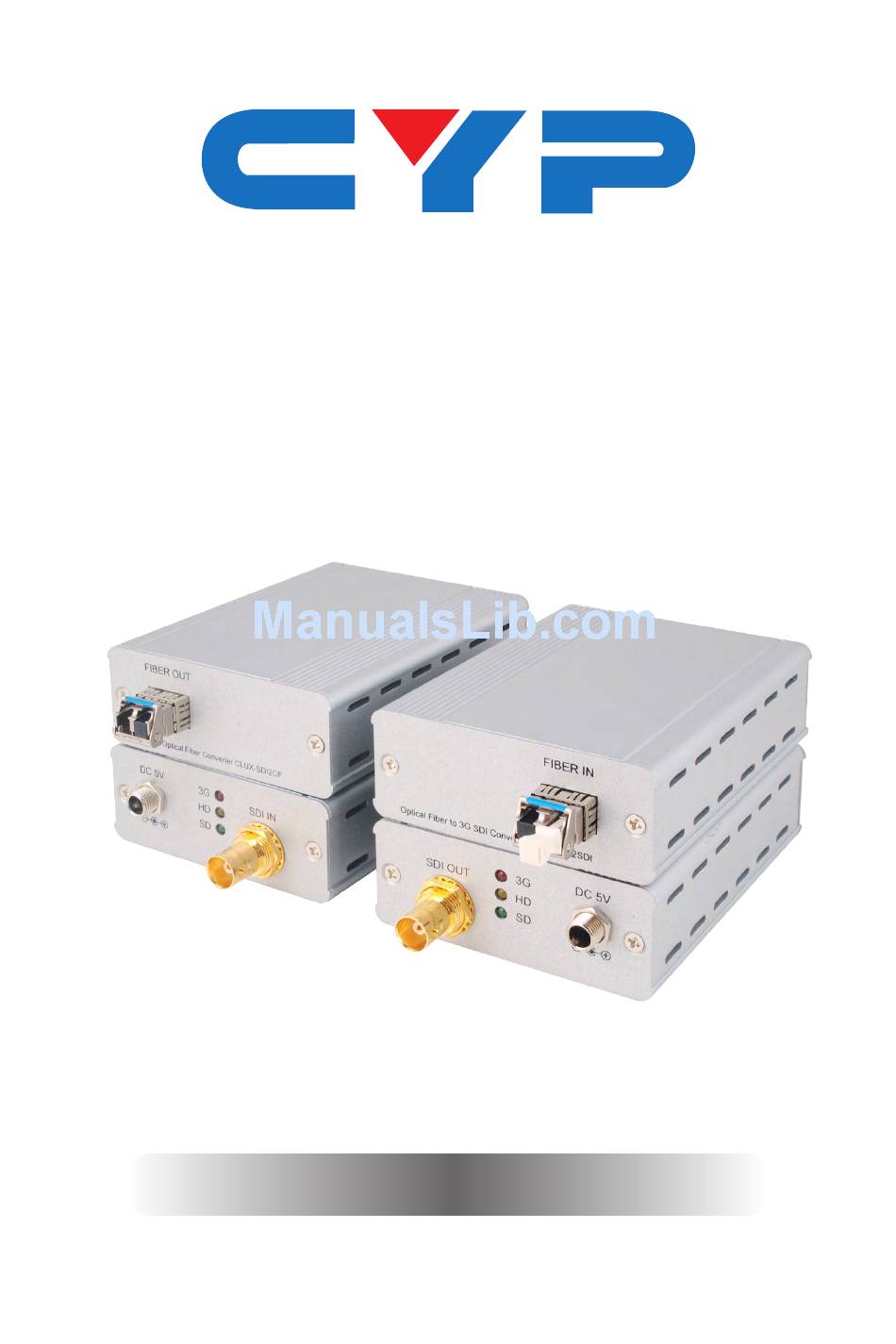

Page 1: Operation Manual
CLUX-SDI2OF & CLUX-OF2SDI SDI over Optical Fiber Extender Operation Manual Operation Manual... - Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Transmitter ...........2 6.2 Receiver ..........3 7. Specifications .......... 4 8. -
Page 5: Introduction

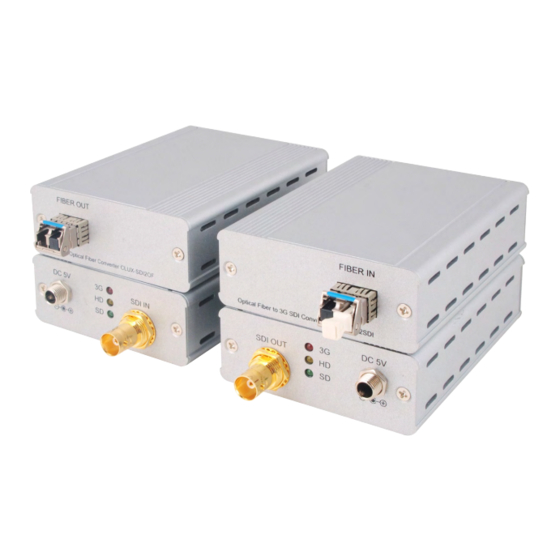

1. INTRODUCTION The SDI to Optical Fiber Extender is a pair of tool to extend your SDI signals over Optical Fiber for long distance transmission up to 10km. Signals from 50MB/s to 3Gb/s without loss or compression with thinner, lighter cables for easy installations. 2. -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter DC 5V: This slot is to plug with the 5V DC power supply adaptor and connect it to an AC wall outlet. 3G / HD / SD LED: These LEDs will illuminate according to the input SDI signal of 3G/ HD/SD format. -
Page 7: Receiver
6.2 Receiver SDI OUT: This slot is to connect with SDI monitor or display for SDI video and audio output display. 3G / HD / SD LED: These LEDs will illuminate according to the output SDI signal of 3G/ HD/SD format. The device will detect the signal automatically. DC 5V: This slot is to plug with the 5V DC power supply adaptor and connect it to an AC wall outlet. -
Page 8: Specifications
7. SPECIFICATIONS Transmitter Input Ports 1 x SDI Output Ports 1 x Single-Mode Fiber Optical with LC connector Receiver Input Ports 1 x Single-Mode Fiber Optical with LC connector Output Ports 1 x SDI SDI I/O Cable Distance 3G up to 100M (BELDEN 1694A) HD up to 200M (BELDEN 1694A) SD up to 300M (BELDEN 1694A) Optical Fiber Cable Distance... -
Page 9: Connection And Installation
8. CONNECTION AND INSTALLATION SNG Camcorder SDI camera SDI Cable 300M Optical Cable 10km SDI Cable 300M SDI Monitor... -
Page 10: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbps ≈ 3G Light-Emitting Diode Serial Digital Interface Satellite News Gathering... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
