Page 1: Operation Manual

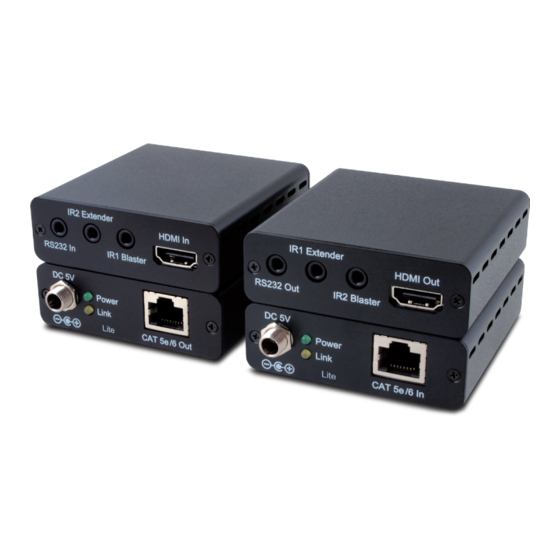

CH-506TXL & RXL HDBaseT™ Lite HDMI over Single CAT5e/6/7 Extender Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 D-Sub 9-Pin Definitions .....5 6.4 IR Cable Pin Assignment....5 7. -
Page 6: Introduction
1. INTRODUCTION This HDBaseT™ Lite HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 60m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR. 2. -
Page 7: Features
5. FEATURES • HDMI including 3D and 4k×2k (Ultra HD) support, HDCP and DVI compliant • Supports HDCP repeater and CEC functions • Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60 m/196 ft (1080p@60 Hz/8-bit), 40m (3D) or 20m (4k×2k) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels Front Rear DC 5V IR2 Extender HDMI In Power Link RS232 In IR1 Blaster Lite CAT 5e /6 Out RS232 In: Connect to a PC/laptop or RS-232 enabled device (with supplied 3.5 mm mini-jack to D-sub 9-pin adaptor) for the transmission of RS-232 commands. -
Page 9: Receiver Front And Rear Panels
6.2 Receiver Front and Rear Panels Front Rear DC 5V IR1 Extender HDMI Out Power Link RS232 Out IR2 Blaster Lite CAT 5e /6 In RS232 Out: Connect to the device that is to be controlled (with the supplied 3.5mm mini-jack to D-sub 9-pin adaptor) by RS-232 commands. -
Page 10: D-Sub 9-Pin Definitions
6.3 D-Sub 9-Pin Definitions DEFINE TX/RX TxD/RxD RxD/TxD 6.4 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 11: Connection Diagram
7. CONNECTION DIAGRAM RS-232 Equipped PC or Notebook DVD/Blu-ray Player HDMI Input 1.5m 60° IR Blaster 1 RS-232 60° IR2 Extender IR Extender 2 HDMI In RS232 In IR1 Blaster DC 5V Power Link CAT 5e /6 Out Power Supply CAT5e/6/7 Cable (60m) Power Supply... -
Page 12: Specifications
8. SPECIFICATIONS Video Bandwidth 300 MHz/10.2 Gbps Transmitter Input Ports 1×HDMI, 1×IR Extender, 1×RS-232 Output Ports 1×CAT5e/6/7, 1×IR Blaster Receiver Input Ports 1×CAT5e/6/7, 1×IR Extender Output Ports 1×HDMI, 1×IR Blaster, 1×RS-232 CAT5e/6/7 Cable Up to 60 m Distance HDMI Cable Input 10 m@8-bit, 6 m@12-bit Distance HDMI Cable Output... -
Page 13: Acronyms
CAT5e/6/7 Cable Specification: LENGTH BANDWIDTH DATA RATE SUPPORTED VIDEO HD Video Up to Up to Up to 60 m 225 MHz 5.3 Gbps Up to 1080p@60 Hz/36-bit, 3D (data rate lower than 5.3 Gbps or bandwidth below 225 MHz). Ultra HD Video Up to Greater Greater... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
