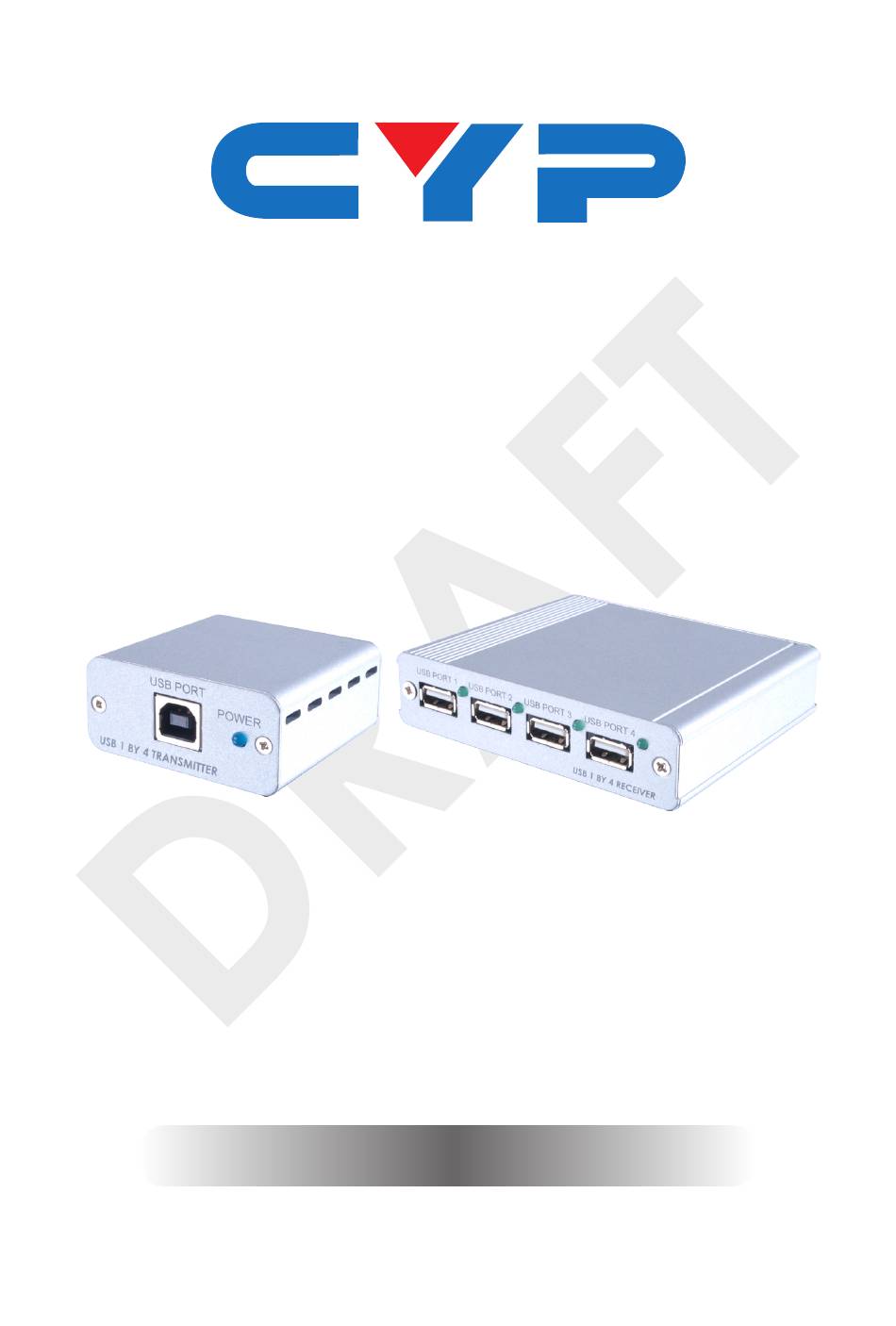

- Page 1 CA-USBLT & CA-USBL70R USB over CAT5e/6 Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Transmitter .........3 6.1.1 Front Panel ........3 6.1.2 Rear Panel ........3 6.2 Receiver ..........4 6.2.1 Front Panel ........4 6.2.2 Rear Panel ........4... -
Page 6: Introduction
1. INTRODUCTION With USB being the standard connection for consumer electronic products, there has long been a need for something to let us operate our many devices over long distances. The USB over CAT5e/6 Transmitter and Receiver boxes developed for this purpose as they can operate in both the home and commercial markets. -
Page 7: Features
5. FEATURES • Supports USB2.0 high-speed and USB 1.1(full-speed, low-speed) devices • Operate with USB 2.0 high speed host controllers and USB 1.1 classic hosts • True hot plug and play without driver installation • Supports all major operating systems including Windows®, Mac OS®, and Linux •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter 6.1.1 Front Panel USB PORT POWER USB 1 BY 4 TRANSMITTER USB PORT: This slot is to connect with PC/Laptop with a USB A to B type cable when sending signals or controlling the output of four USB devices. -
Page 9: Receiver
6.2 Receiver 6.2.1 Front Panel USB PORT 1 USB PORT 2 USB PORT 3 USB PORT 4 USB 1 BY 4 RECEIVER USB OUT 1~4 & LED: These slots are to connect with USB devices such as keyboard, mouse, printer, webcam or etc. with USB cable. The LED will illuminate when the device is plugged. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM CAT5/6 (70 meter) USB PORT POWER USB 1 BY 4 TRANSMITTER RJ45 OUT POWER DC 5V RJ45 IN USB PORT 1 USB PORT 2 USB PORT 3 USB PORT 4 USB 1 BY 4 RECEIVER Flash USB Mouse USB Keyboard Hard Drive... -
Page 11: Specifications
8. SPECIFICATIONS Transmitter Input port 1 x USB (B Type) Output port 1 x RJ45 Receiver Input port 1 x RJ45, Output ports 4 x USB (A Type) ESD Protection Human body model: ±8kV (air-gap discharge) ±6kV (contact discharge) Power Supply 5V / 2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-DCT23...
