Summary of Contents for CYP CH-506TXPLBD

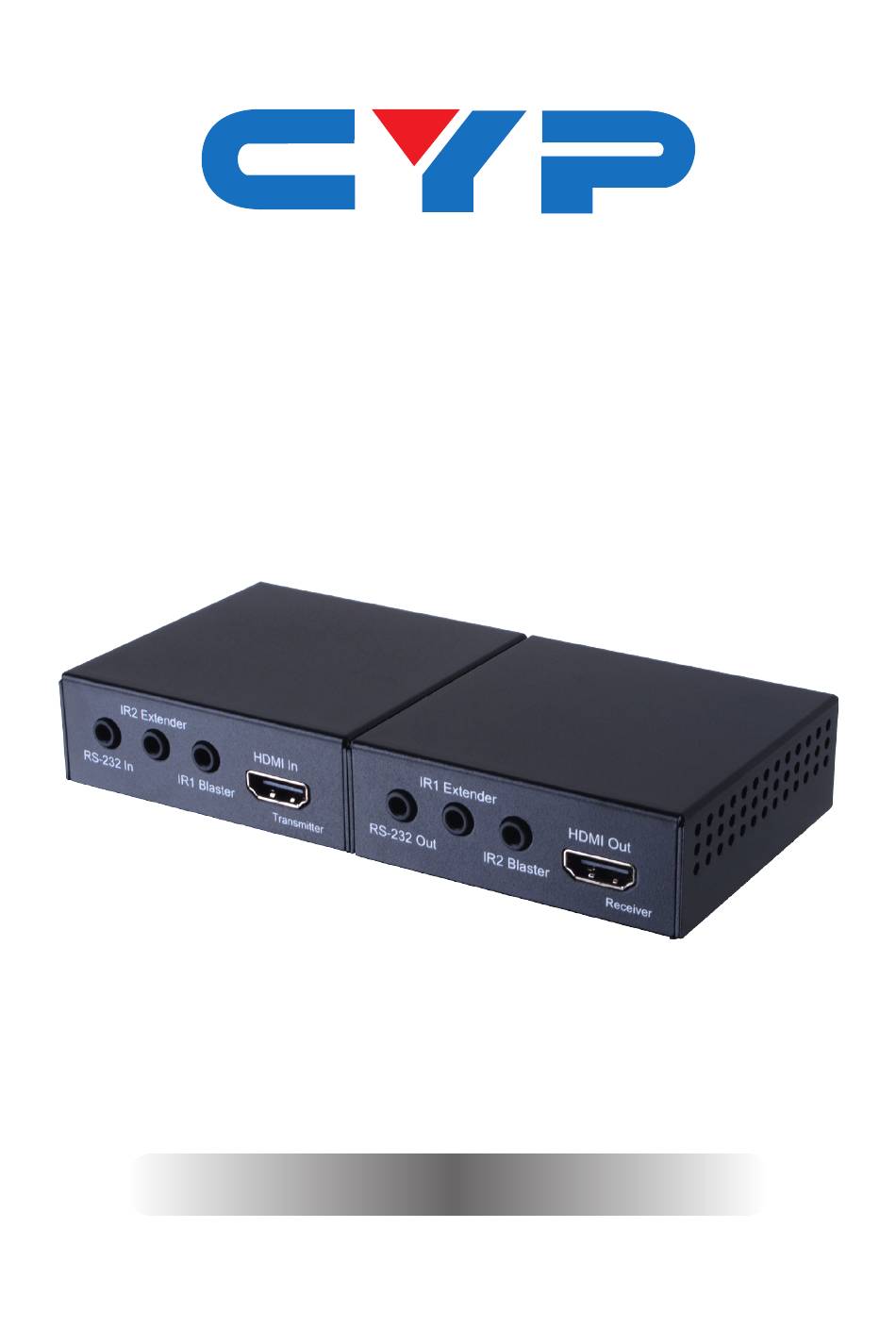

- Page 1 CH-506TXPLBD & RXPLBD HDMI to CAT5e/6/7 Extender Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......... 1 5. Features ............2 6. Operation Controls and Functions .... 3 6.1 Transmitter Front and Rear Panels ..3 6.2 Receiver Front and Rear Panels ..4 6.3 IR Pin Assignment ........ -
Page 6: Introduction
1. INTRODUCTION The HDBaseT-Lite HDMI over single CAT5e/6/7 with bidirectional IR, RS-232 & bidirectional PoC Transmitter and Receiver set can make your home or office set-up more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoC function and added benefit of controls through the built- in RS-232 and IR ports. -
Page 7: Features
5. FEATURES • Compatible with HDCP and DVI • Supports HDMI 3D and 4K x 2K features • Supports HDBaseT-Lite Technology • Supports HD resolutions up to 1080p@60Hz/36-bit • Supports distance up to 60 meters through CAT5e/6/7 cable • Supports bidirectional IR and PoC •... -
Page 8: Operation Controls And Functions

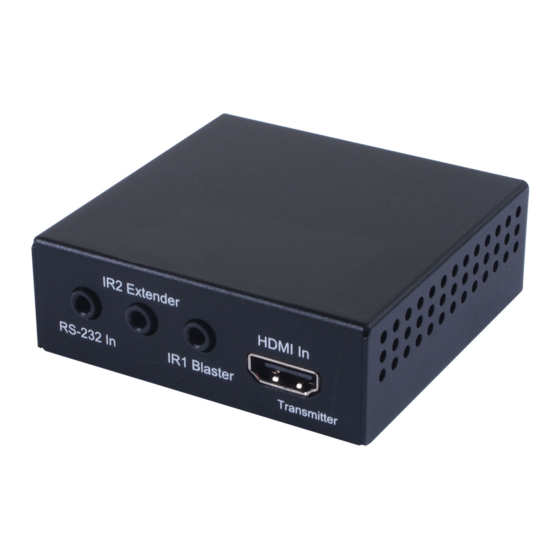

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter Front and Rear Panels IR2 Extender HDMI In Power Link RS-232 In IR1 Blaster CAT 5e /6/7 Out Transmitter DC 24V Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 9: Receiver Front And Rear Panels
HDMI In Connect with source equipment such as DVD/Blu-ray player. 6.2 Receiver Front and Rear Panels IR1 Extender HDMI Out Power Link RS-232 Out IR2 Blaster CAT 5e /6/7 In Receiver DC 24V Plug the 24V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 10: Ir Pin Assignment
HDMI Out Connect to a HDMI equipped TV/monitor for display of the HDMI input source signal. 6.3 IR Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding... -
Page 11: D-Sub 9 Pin Definitions
6.4 D-Sub 9 Pin Definitions Define TX / RX TxD/RxD RxD/TxD... -
Page 12: Specifications
7. SPECIFICATIONS Video Bandwidth 340MHz/10.2Gbps Transmitter Inputs 1 x HDMI, 1 x IR Extender, 1 x RS-232 Outputs 1 x RJ45, 1 x IR Blaster Receiver Inputs 1 x RJ45, 1 x IR Extender Outputs 1 x HDMI, 1 x IR Blaster, 1 x RS-232 ESD Protection Human Body Model: ±8kV (air-gap discharge) - Page 13 CAT5e/6/7 Cable Specification Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) lower than 5.3 Gbps or below 225 MHz TMDS clock).
-
Page 14: Connection And Installation
8. CONNECTION AND INSTALLATION DVD or Blu-ray Player RS-232 RS-232 HDMI Equipped 1.5m Adaptor PC or 60° Notebook IR Blaster 60° IR Extender Power Supply IR2 Extender HDMI In RS-232 In IR1 Blaster Transmitter Power Link CAT 5e /6/7 Out Single CAT5e/6 Cable... -
Page 15: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM CAT5e Category 5 Cable CAT6 Category 6 Cable CAT7 Category 7 Cable Consumer Electronics Control Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface Infrared... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CH506TXPLBD...
