Page 1: Operation Manual

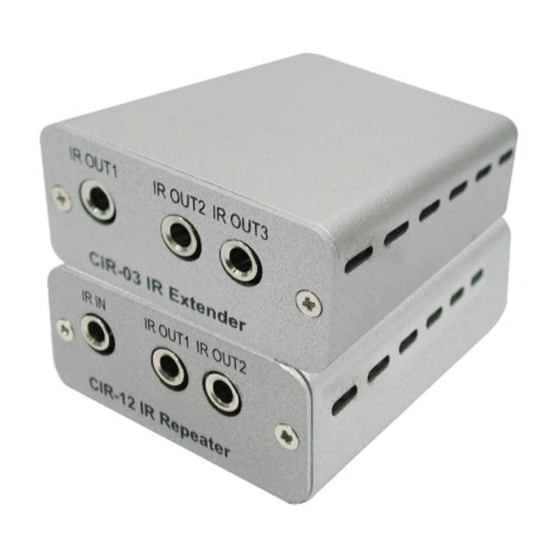

CIR-03 Infra-red Extender Box & CIR-12 Infra-red Repeater Operation Manual Operation Manual... - Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 2 6. Operation Controls and Functions ..3 6.1 Front Panel ..........3 6.2 Rear Panel ...........4 7. IR Pin Definition ........5 8. -
Page 6: Introduction
• Infrared Extender Box (CIR-03) • Infrared Repeater Box (CIR-12) • 1 × IR Eye Receiver cable (CIR-12) • 5 × IR Eye Blaster cables (3 for CIR-03, 2 for CIR-12) • 5 V DC power supply adaptor (for CIR-12) • Operation Manual 4. -
Page 7: Features
5. FEATURES Supports up to five(5) outputs (3 from CIR-03, 2 from CIR-12) • Control source devices anywhere within 250 m, can be run • through walls and ceilings Transmits infrared signals only • It allows the use of existing remote controls •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel IR OUT1 IR OUT2 IR OUT3 IR IN IR OUT1 IR OUT2 CIR03 IR Extender CIR12 IR Repeater IR OUT1, 2 and 3 Connect your IR Eye Blaster cables (up to 2 m long) to the IR OUT outputs to control source devices. -
Page 9: Rear Panel
6.2 Rear Panel DC 5V IR CAT5 IR CAT5 Connect CAT 5 cable to next Infrared Extender Box with IR receiver. Power Plug the 5 V DC power supply into the unit and connect the adaptor to an AC wall outlet. IR Extender IR Repeater DC 5V... -
Page 10: Ir Pin Definition
7. IR PIN DEFINITION IR Blaster Power 5 V IR Blaster Signal IR Signal IR Receiver Power 5 V Grounding 8. IR CONNECTOR PIN DEFINITION 8.1 IR Phone Jack Pin Definition SCHEMATIC 1. Ring Spring 2. Tip Spring 3. Earth Spring 1 2 3... -
Page 11: Ir In Pin Definition
8.2 IR IN Pin Definition ASSIGNMENT 1 (RING SPRING) POWER 5 V 2 (TIP SPRING) IR SIGNAL 3 (EARTH SPRING) 8.3 IR OUT Pin Definition ASSIGNMENT 1 (RING SPRING) IR BLASTER SIGNAL 2 (TIP SPRING) POWER 5 V 3 (EARTH SPRING) IR BLASTER SIGNAL 8.4 RJ45 Pin Definition ASSIGNMENT... -
Page 12: Connection Diagram
Front Panel DVD Player CIR12 IR Repeater DC 5V Rear Panel IR CAT5 IR CAT5 IR CAT5 30° CIR-03 Rear Panel DC 5V IR CAT5 Set-top Box Front Panel IR OUT1 IR OUT2 IR OUT3 CIR03 IR Extender Blu-ray Player... -
Page 13: Specifications
10. SPECIFICATIONS Input Port 1 × IR receiver (CIR-12) Output Ports 1 × CAT5 (CIR-03K, CIR-12) 5 × IR extender (3 × CIR-03, 2 × CIR-12) Power Supply 1 × 5 V/1 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±10 kV (air-gap... - Page 14 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
