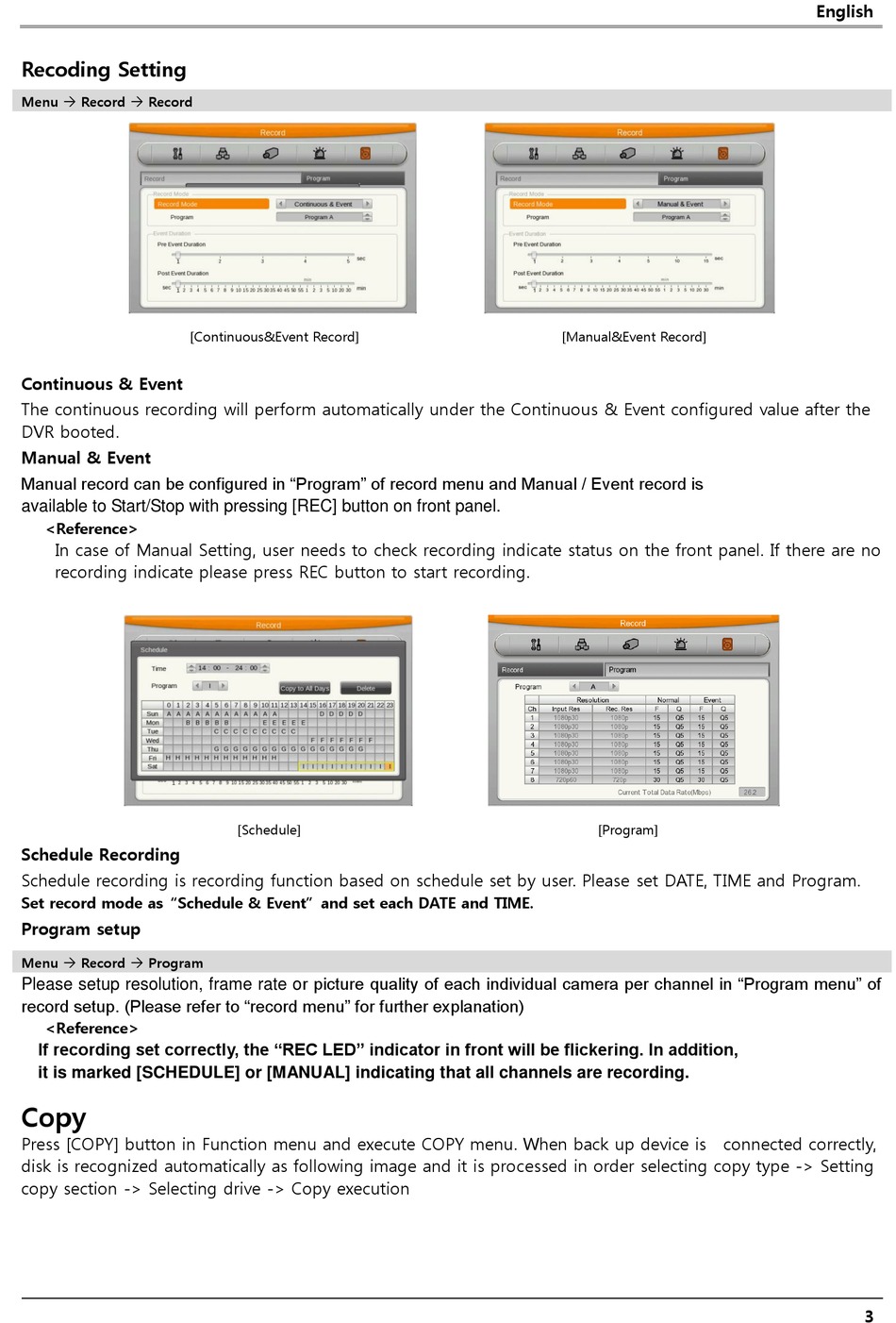

Recoding Setting
Menu  Record  Record
[Continuous&Event Record]
Continuous & Event
The continuous recording will perform automatically under the Continuous & Event configured value after the
DVR booted.
Manual & Event
Manual record can be configured in "Program" of record menu and Manual / Event record is
available to Start/Stop with pressing [REC] button on front panel.
<Reference>
In case of Manual Setting, user needs to check recording indicate status on the front panel. If there are no
recording indicate please press REC button to start recording.

Schedule Recording

Schedule recording is recording function based on schedule set by user. Please set DATE, TIME and Program.
Set record mode as "Schedule & Event" and set each DATE and TIME.

Program setup

Menu  Record  Program
Please setup resolution, frame rate or picture quality of each individual camera per channel in "Program menu" of
record setup. (Please refer to "record menu" for further explanation)
<Reference>
If recording set correctly, the "REC LED" indicator in front will be flickering. In addition,
it is marked [SCHEDULE] or [MANUAL] indicating that all channels are recording.

Copy

Press [COPY] button in Function menu and execute COPY menu. When back up device is connected correctly,
disk is recognized automatically as following image and it is processed in order selecting copy type -> Setting
copy section -> Selecting drive -> Copy execution
[Schedule]
[Manual&Event Record]
[Program]
English
3
