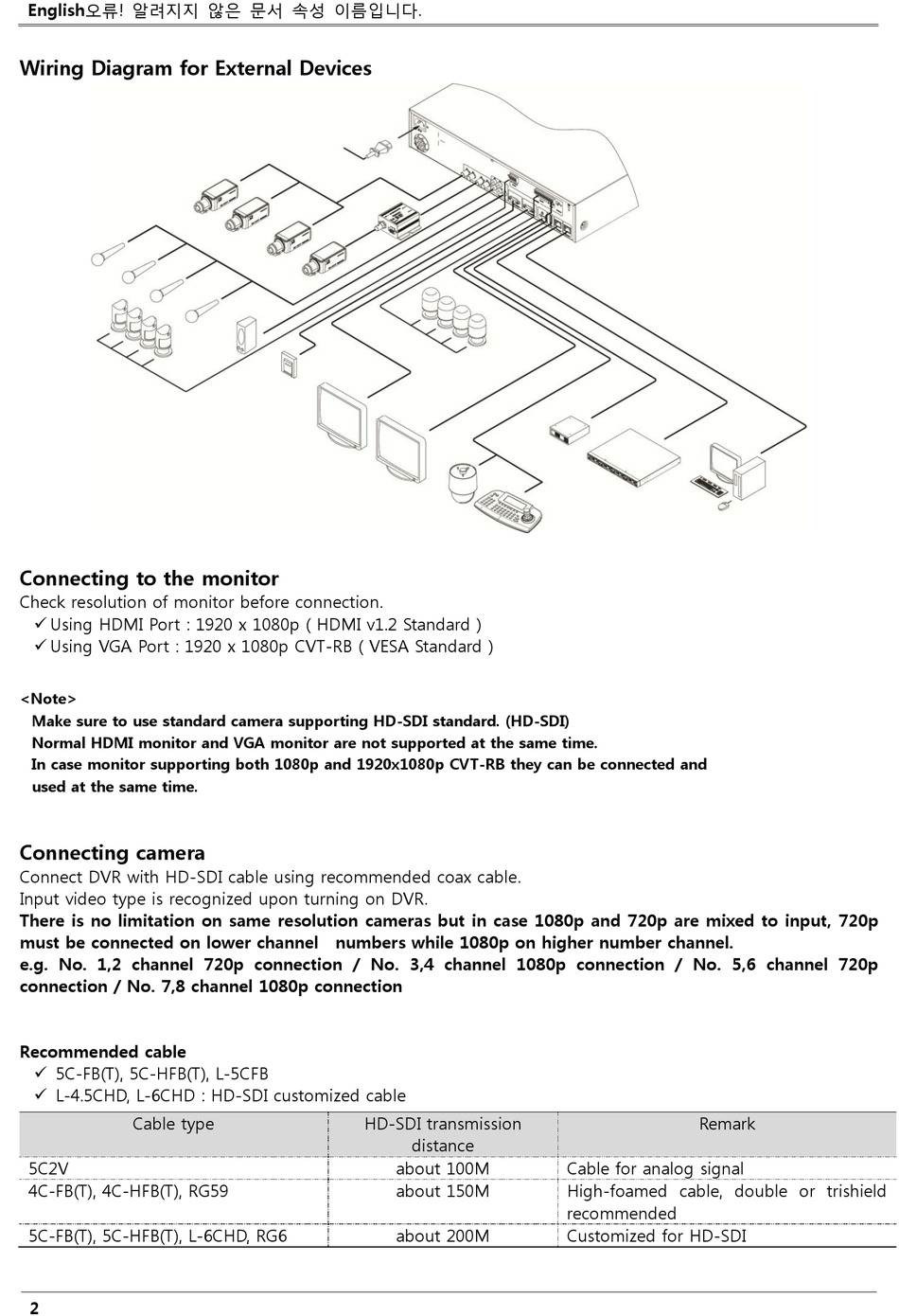

Wiring Diagram for External Devices

Connecting to the monitor

Check resolution of monitor before connection.
 Using HDMI Port : 1920 x 1080p ( HDMI v1.2 Standard )
 Using VGA Port : 1920 x 1080p CVT-RB ( VESA Standard )
<Note>
Make sure to use standard camera supporting HD-SDI standard. (HD-SDI)
Normal HDMI monitor and VGA monitor are not supported at the same time.
In case monitor supporting both 1080p and 1920x1080p CVT-RB they can be connected and
used at the same time.

Connecting camera

Connect DVR with HD-SDI cable using recommended coax cable.
Input video type is recognized upon turning on DVR.
There is no limitation on same resolution cameras but in case 1080p and 720p are mixed to input, 720p
must be connected on lower channel numbers while 1080p on higher number channel.
e.g. No. 1,2 channel 720p connection / No. 3,4 channel 1080p connection / No. 5,6 channel 720p
connection / No. 7,8 channel 1080p connection

Recommended cable

 5C-FB(T), 5C-HFB(T), L-5CFB
 L-4.5CHD, L-6CHD : HD-SDI customized cable
Cable type
5C2V
4C-FB(T), 4C-HFB(T), RG59
5C-FB(T), 5C-HFB(T), L-6CHD, RG6
2
HD-SDI transmission
distance
about 100M
about 150M
about 200M
Remark
Cable for analog signal
High-foamed cable, double or trishield
recommended
Customized for HD-SDI
