Page 1: User Manual
User Manual HandyTone-488 Analog Telephone Adaptor For SW Release Version 1.0.2.6 Grandstream Networks, Inc. www.grandstream.com... -
Page 2: Table Of Contents
Access the Web Configuration Menu ................15 6.2.2 End User Configuration ....................15 6.2.3 Advanced User Configuration..................20 6.2.4 Saving the Configuration Changes................27 6.2.5 Rebooting the HandyTone-488 from Remote ..............28 ..............28 ONFIGURATION THROUGH A ENTRAL ERVER SOFTWARE UPGRADE......................30 TFTP ....................30 PGRADE THROUGH RESTORE FACTORY DEFAULT SETTING ...............31... -
Page 3: Welcome
HandyTone-488 is fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market. Grandstream HandyTone-488 is a new addition to the popular HandyTone product family. It is an enhanced model compared to the award-winning HandyTone-486 in that it allows call origination and termination from/to the PSTN network (via FXO port) remotely and automated emergency call routing through PSTN network. -
Page 4: Installation

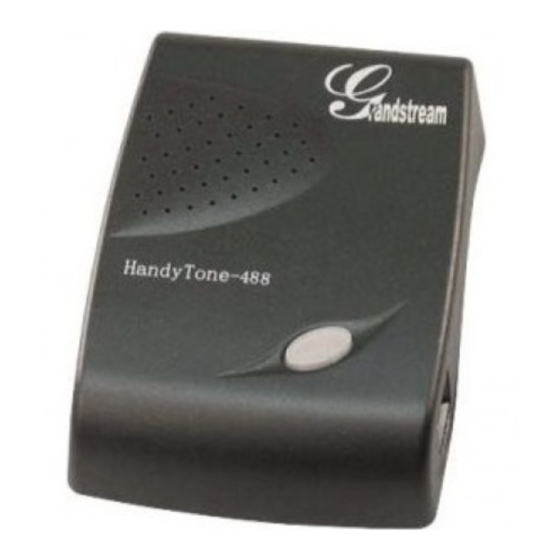

HandyTone-488 User Manual Grandstream Networks, Inc. Installation HandyTone-488 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total solution for networks providing VoIP services. The HandyTone-488 VoIP functionalities are available via a regular analog telephone. The following photo illustrates the appearance of a HandyTone-488. - Page 5 HandyTone-488 has one FXS port and one FXO port. The PHONE port next to the LAN port is a FXS port. The LINE port on the side of the HandyTone-488 is a FXO port. Both the FXS port and the FXO port can have a separate SIP account.
-
Page 6: What Is Included In The Package
3) One Ethernet cable Safety Compliances The HandyTone-488 is compliant with various safety standards including FCC/CE and C-tick. Its power adaptor is compliant with UL standard. The HandyTone-488 should only operate with the universal power adaptor provided in the package. Warranty Grandstream has a reseller agreement with our reseller customer. -
Page 7: Product Overview
HandyTone-488 User Manual Grandstream Networks, Inc. Product Overview Key Features • Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP, DNS, DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc. • Built-in router, NAT, Gateway and DMZ port forwarding •... -
Page 8: Hardware Specification
HandyTone-488 User Manual Grandstream Networks, Inc. Hardware Specification The table below lists the hardware specification of HandyTone-488. Model HandyTone-488 LAN interface 1xRJ45 10Base-T WAN interface 1xRJ45 10Base-T FXS telephone port 1xFXS FXO port 1xFXO Button Green and red color Universal Switching... -
Page 9: Basic Operations
Grandstream Networks, Inc. Basic Operations Get Familiar with Voice Prompt HandyTone-488 has stored a voice prompt menu for quick browsing and simple configuration. To enter this voice prompt menu, simply press the button or “***” from the analog phone. Menu... -
Page 10: Make Phone Calls
HandyTone-488 User Manual Grandstream Networks, Inc. Make Phone Calls 5.2.1 Calling phone or extension numbers To make a phone or extension number call: a) Dial the number directly and wait for 4 seconds (default “No Key Entry Timeout”). Or b) Dial the number directly, and press # (assuming that “Use # as dial key” is selected in web configuration). -
Page 11: Blind Transfer
HandyTone-488 User Manual Grandstream Networks, Inc. Examples: If the target IP address is 192.168.0.160, the dialing convention is Voice Prompt with option 47, then 192168000160 followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this case, the default destination port 5060 is used if no port is specified. -
Page 12: 3-Way Conferencing
HandyTone-488 User Manual Grandstream Networks, Inc. Note: When intended Transfer failed, if A hangs up, the HandyTone-488 will ring user A again to remind A that B is still on the call, by pressing FLASH or Hook again will restore the conversation between A and B. -
Page 13: Route Calls To Pstn
PSTN port. Call Features 5.3.1 Call Features Table Following table shows the call features of HandyTone-488. Call Features Block Caller ID (for all subsequent calls) Send Caller ID (for all subsequent calls) -
Page 14: Pstn Pass Through
When HandyTone-488 is out of power or loses registration or if the network connection is down, the RJ 11 line jack on the side of HandyTone-488 will function as a pass through jack. Users will be able to use the same analog phone for PSTN calls. -
Page 15: Configuration Guide
6.1.2 STATIC IP Mode Follow section 5.1 with voice menu option 01 to enable HandyTone-488 to use STATIC IP mode, then use option 02, 03, 04 to set up HandyTone-488’s IP, Subnet Mask, Gateway respectively. Configuring HandyTone-488 with Web Browser HandyTone-488 series ATA has an embedded Web server that will respond to HTTP GET/POST requests. - Page 16 The password is case sensitive and the factory default password for End User is “123”. After a correct password is entered in the login screen, the embedded Web server inside the HandyTone-488 will respond with the Configuration page which is explained in details below. Grandstream Device Configuration...
- Page 17 Route Call to PSTN: Forward to (VoIP calls will be forwarded to the specified PSTN PSTN: number) (PSTN calls will be forwarded to the specified VoIP Forward to VoIP: number) Cancel Update Reboot All Rights Reserved Grandstream Networks, Inc. 2004...
- Page 18 DMZ IP: Forward all WAN IP traffic to a specific IP address if no matching port is used by HandyTone-488 itself or in the defined port forwarding. Allow users to forward a matching (TCP/UDP) port to a specific LAN IP Port Forwarding: address with a specific (TCP/UDP) port.
- Page 19 System Up Time: 2 day(s) 3 hour(s) 23 minute(s) Registered: Yes PPPoE Link Up: disabled detected NAT type is full cone All Rights Reserved Grandstream Networks, Inc. 2004 MAC Address The device ID, in HEX format. This is a very important ID for ISP troubleshooting.
-
Page 20: Advanced User Configuration
Grandstream Device Configuration Password Login All Rights Reserved Grandstream Networks, Inc. 2005 Advanced User configuration includes not only the end user configuration, but also advanced configuration such as SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous configuration. Following is a snap shot of the advanced configuration page. - Page 21 HandyTone-488 User Manual Grandstream Networks, Inc. Register Expiration: (in minutes. default 1 hour, max 45 days) 5060 local SIP port: (default 5060) 5004 local RTP port: (1024-65535, default 5004) Enable Call Yes (if Yes, Call Forwarding & Call-Waiting-Disable are supported...
- Page 22 HandyTone-488 User Manual Grandstream Networks, Inc. current setting is " G729" choice 4: current setting is " G726-32" choice 5: current setting is " iLBC" choice 6: Voice Frames per (up to 10/20/32/64 for G711/G726/G723/other codecs respectively) G723 rate: 6.3kbps encoding rate 5.3kbps encoding rate...
- Page 23 Yes (WAN side access to http server will be rejected if set to No) access: Cancel Update Reboot All Rights Reserved Grandstream Networks, Inc. 2004 Admin Password This contains the password to access the Advanced Web Configuration page. This field is case sensitive. SIP Server SIP Server’s URI or IP address...
- Page 24 HandyTone-488 User Manual Grandstream Networks, Inc. Local SIP port This parameter defines the local SIP port the HandyTone ATA will listen and transmit. The default value for FXS port is 5060. The default value for FXO port is 5062. Local RTP port This parameter defines the local RTP-RTCP port pair the HandyTone ATA will listen and transmit.
- Page 25 HandyTone-488 User Manual Grandstream Networks, Inc. Voice Frames per This field contains the number of voice frames to be transmitted in a single packet. When setting this value, the user should be aware of the requested packet time (used in SDP message) as a result of configuring this parameter.
- Page 26 HandyTone-488 User Manual Grandstream Networks, Inc. Early Dial Default is No. Use only if proxy supports 484 response Dial Plan Prefix Sets the prefix added to each dialed number No Key Entry Default is 4 seconds. Timeout Use # as This parameter allows users to configure the “#”...
-
Page 27: Saving The Configuration Changes
6.2.4 Saving the Configuration Changes Once a change is made, users should click on the “Update” button in the Configuration page. The HandyTone-488 will then display the following screen to confirm that the changes have been saved. -
Page 28: Rebooting The Handytone-488 From Remote
Click to relogin All Rights Reserved Grandstream Networks, Inc. 2004 At this point, the user can relogin to the HandyTone-488 after waiting for about 30 seconds. Configuration through a Central Server Grandstream HandyTone ATAs can be automatically configured from a central provisioning system. - Page 29 HandyTone-488 User Manual Grandstream Networks, Inc. “000b82xxxxxx” is the MAC address of the HandyTone ATA. For more information regarding configuration file format, please refer to the related Grandstream documentation. The configuration file can be downloaded via TFTP or HTTP from the central server. A service...
-
Page 30: Software Upgrade
TFTP checking is only performed during the initial power up. If the configured TFTP server is found and a new code image is available, the HandyTone-488 will attempt to retrieve the new image files by downloading them into the HandyTone-488’s SRAM. During this stage, the HandyTone-488’s LED will blink until the checking/downloading process is completed. -
Page 31: Restore Factory Default Setting
NOTES: • Be advised by default the HandyTone-488 WAN side HTTP access is disabled. After the factory reset, the ONLY way to get access to the configuration page is connecting your computer to the LAN port of HandyTone-488.
