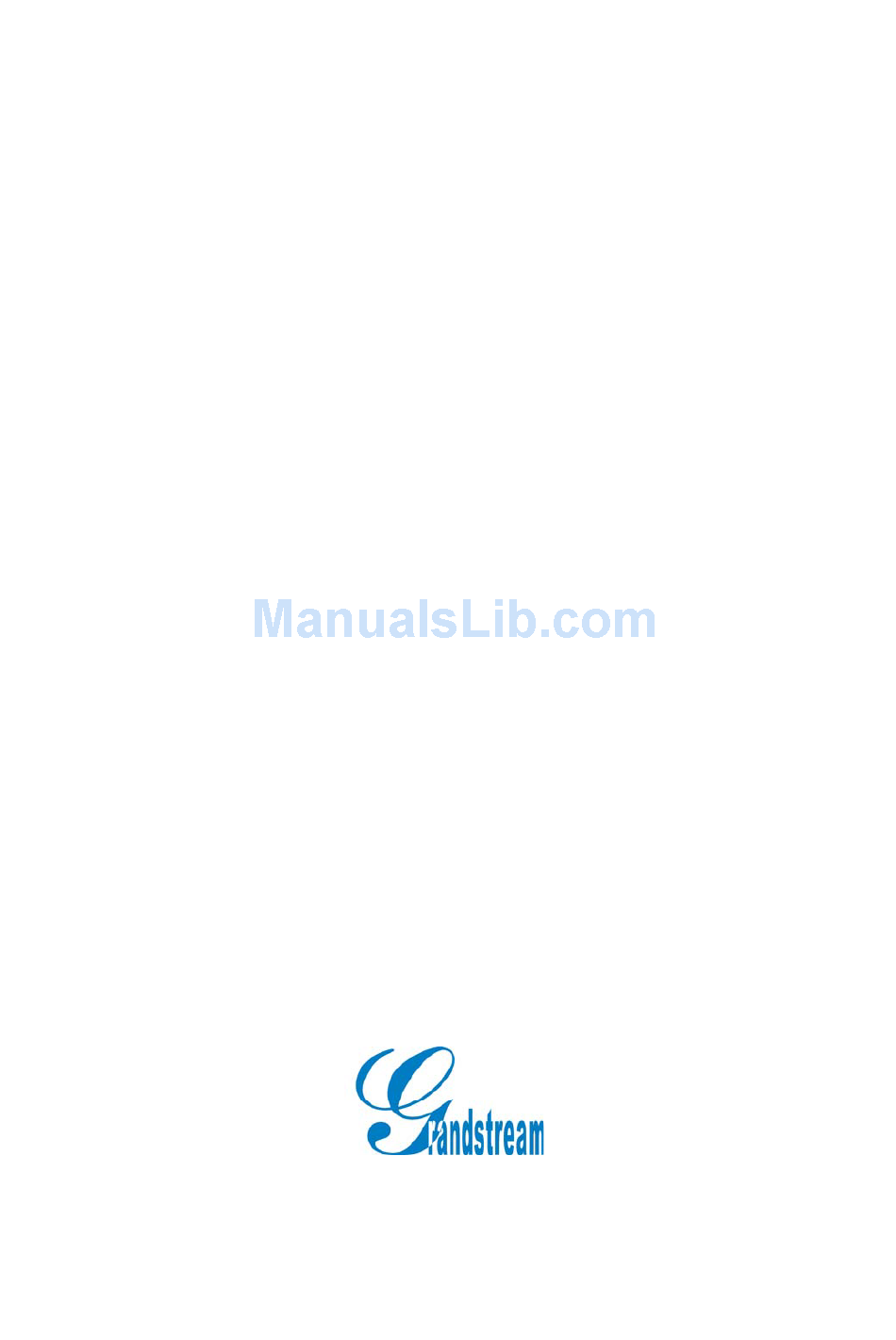

User Manual HandyTone-286 Analog Telephone Adaptor Version 1.00 Grandstream Network, Inc. www.grandstream.com... -
Page 2: Table Of Contents
HandyTone User Manual Grandstream Networks, Inc Table of Contents WELCOME..........................- 3 - INSTALLATION ........................- 4 - ..................- 5 - HAT IS NCLUDED IN THE ACKAGE ......................- 5 - AFETY OMPLIANCES PRODUCT OVERVIEW ......................- 6 - .........................- 6 - EATURES .....................- 7 -... -
Page 3: Welcome
Congratulations on becoming an owner of HandyTone 286! You made an excellent choice and we hope you will enjoy all its capabilities. Grandstream's award-wining HandyTone 286 is innovative Analog Telephone Adaptor that offers a rich set of functionality and superb sound quality at ultra-affordable price. -
Page 4: Installation

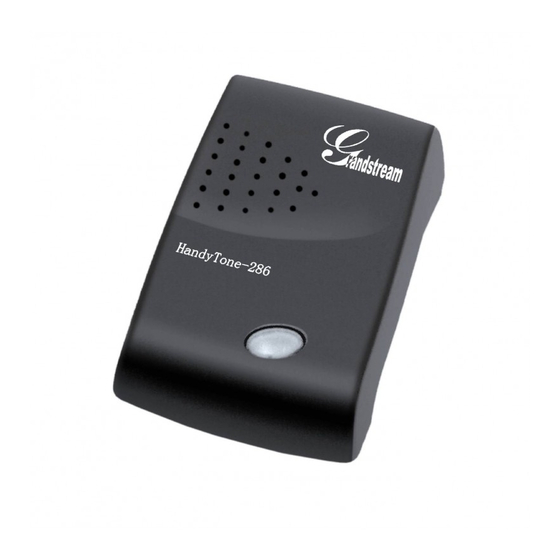

HandyTone User Manual Grandstream Networks, Inc 2 Installation HandyTone Analog Telephone Adaptor is designed to work with an ordinary analog telephone. The following photo illustrates the appearance of a HandyTone 286. BUTTON RED LED GREEN LED RJ45 RJ11 10M Ethernet... -
Page 5: What Is Included In The Package
HandyTone ATA. Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty. - 5 -... -
Page 6: Product Overview
HandyTone User Manual Grandstream Networks, Inc 3 Product Overview 3.1 Key Features • Support SIP 2.0, TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP, DNS, DHCP, NTP/SNTP, TFTP protocols • Support IETF STUN. • Interoperable with various 3rd party SIP end user device, Proxy / Registrar / Server, and gateway products. -
Page 7: Hardware Specification
HandyTone User Manual Grandstream Networks, Inc 3.2 Hardware Specification The table below describes the difference among these models. Model HandyTone 286 LAN interface 1xRJ45 10Base-T Button GREEN & RED color Universal Input: 100-240VAC 50-60 Hz Switching Output: +5VDC, 1200mA, UL certified... -
Page 8: Basic Operations
HandyTone User Manual Grandstream Networks, Inc 4 Basic Operations 4.1 Get Familiar With Key Pad And Voice Prompt HandyTone has stored voice prompt menu for quick browsing and simple configuration. To enter this voice prompt menu, simple press the button. After figuring out its IP address, HandyTone can be configured thru web interface just like BT-100 IP telephone. - Page 9 HandyTone User Manual Grandstream Networks, Inc ‘*’ functions similar to ‘↓’ key of BT-100 phone to select the next menu option ‘#’ returns back to main MENU ‘9’ is similar to ENTER key in many cases to confirm an option All entered digit sequences have known lengths - 2 digits for menu option and 12 digits for IP address.
-
Page 10: Make Phone Calls
HandyTone User Manual Grandstream Networks, Inc 4.2 Make Phone Calls 4.2.1 Calling phone or extension numbers There are currently two method to make a extension number call: 1) Dial the extension number directly and wait for 5 seconds. 2) You can dial the numbers directly, and press #(assuming that “use #” as dial key is selected in web configuration). - Page 11 HandyTone User Manual Grandstream Networks, Inc . (dot character) _ (underscore character) - (hyphen character) : (column character) - 11 -...
- Page 12 HandyTone User Manual Grandstream Networks, Inc The rule of thumb to remember these encoding is: “a” is the first letter on button “1” so its encoding is “11”. “b” is the 2 letter on button “1” and its encoding is “12”. “c” is the 3 letter on button “1”...
-
Page 13: Configuration Guide
HandyTone-IP-Address is the IP address of the HandyTone ATA. Once this request is entered and sent from a Web browser, the HandyTone ATA will respond with the following login screen: Welcome to Grandstream IP Phone Password Login - 13 -... -
Page 14: Configuration Menu
HandyTone User Manual Grandstream Networks, Inc The password is case sensitive and the factory default password is lower case ‘admin’. 5.2.2 Configuration Menu After the correct password is entered in the login screen, the embedded Web server inside the HandyTone ATA will respond with the Configuration Menu screen which is explained in details below. - Page 15 This field contains the password used for SIP authentication. It is SIP Password used together with the above SIP Login ID Grandstream IP Phone Configuration MAC Address: 00.0B.82.00.00.01 Software Version: Program--1.0.3.78 Bootloader--1.0.0.7 HTML--1.0.0.17 Admin Password: (password to configure this IP phone)
- Page 16 HandyTone User Manual Grandstream Networks, Inc Authenticate Password: John Doe Name: (optional, e.g., John Doe) Advanced Options: Preferred Vocoder: current setting is "PCMU" (in listed order) choice1: current setting is "PCMA" choice2: current setting is "G723" choice3: current setting is "G729"...
- Page 17 HandyTone User Manual Grandstream Networks, Inc Send Flash Event: Yes (Flash will be sent as a DTMF event if set to Yes) time.nist.gov NTP Server: (URI or IP address) Time Zone: current setting is "GMT-5:00 (US Eastern Time, New York)"...
- Page 18 HandyTone User Manual Grandstream Networks, Inc This field contains the number of voice frames to be transmitted in a Voice Frames single packet. When setting this value, the user should be aware of per TX the requested packet time (used in SDP message) as a result of configuring this parameter.
- Page 19 HandyTone User Manual Grandstream Networks, Inc This parameter controls whether the HandyTone ATA will attempt Early Dial to send an early INVITE each time a key is pressed when a user dials a number. If set to “Yes”, an INVITE is sent using the dial-number collected thus far;...
- Page 20 HandyTone User Manual Grandstream Networks, Inc NAT Traversal This parameter defines whether the HandyTone ATA NAT traversal mechanism will be activated or not. If activated (by choosing “Yes”) and a STUN server is also specified, then the HandyTone ATA will behave according to the STUN client specification.
-
Page 21: Saving The Configuration Changes
Once a change is made, the user should press the “Update” button in the Configuration Menu. The HandyTone ATA will then display the following screen to confirm that the changes have been saved. Grandstream IP Phone Configuration Update Status Your configuration changes have been saved. They will take effect on next reboot. -
Page 22: Rebooting The Handytone Ata From Remotely
At this point, the user can relogin to the HandyTone ATA after waiting for about 30 seconds. 5.3 Configuration through a Central Server Grandstream HandyTone ATAs can be automatically configured via a central provisioning system called Grandstream Automated Provisioning System (GAPS). With GAPS, a service provider or an enterprise with large deployment of HandyTone ATAs can easily manage the configuration and service provisioning of individual devices remotely and automatically via a central server. -
Page 23: Software Upgrade
LAN. It is generally recommended to conduct TFTP upgrade in a controlled LAN environment if possible. For users who do not have local TFTP server, Grandstream provides a NAT-friendly TFTP server on the public Internet for users to download the latest firmware upgrade automatically. Please check the Service or Support section of Grandstream’s Web site to obtain this TFTP server IP address.
