User Manual

HandyTone-486
Analog Telephone Adaptor
User Manual 1.0 Version
Grandstream Networks, Inc.
www.grandstream.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HandyTone-486 and is the answer not in the manual?

Questions and answers

Related Manuals for Grandstream Networks HandyTone-486

Summary of Contents for Grandstream Networks HandyTone-486

  • Page 1: User Manual

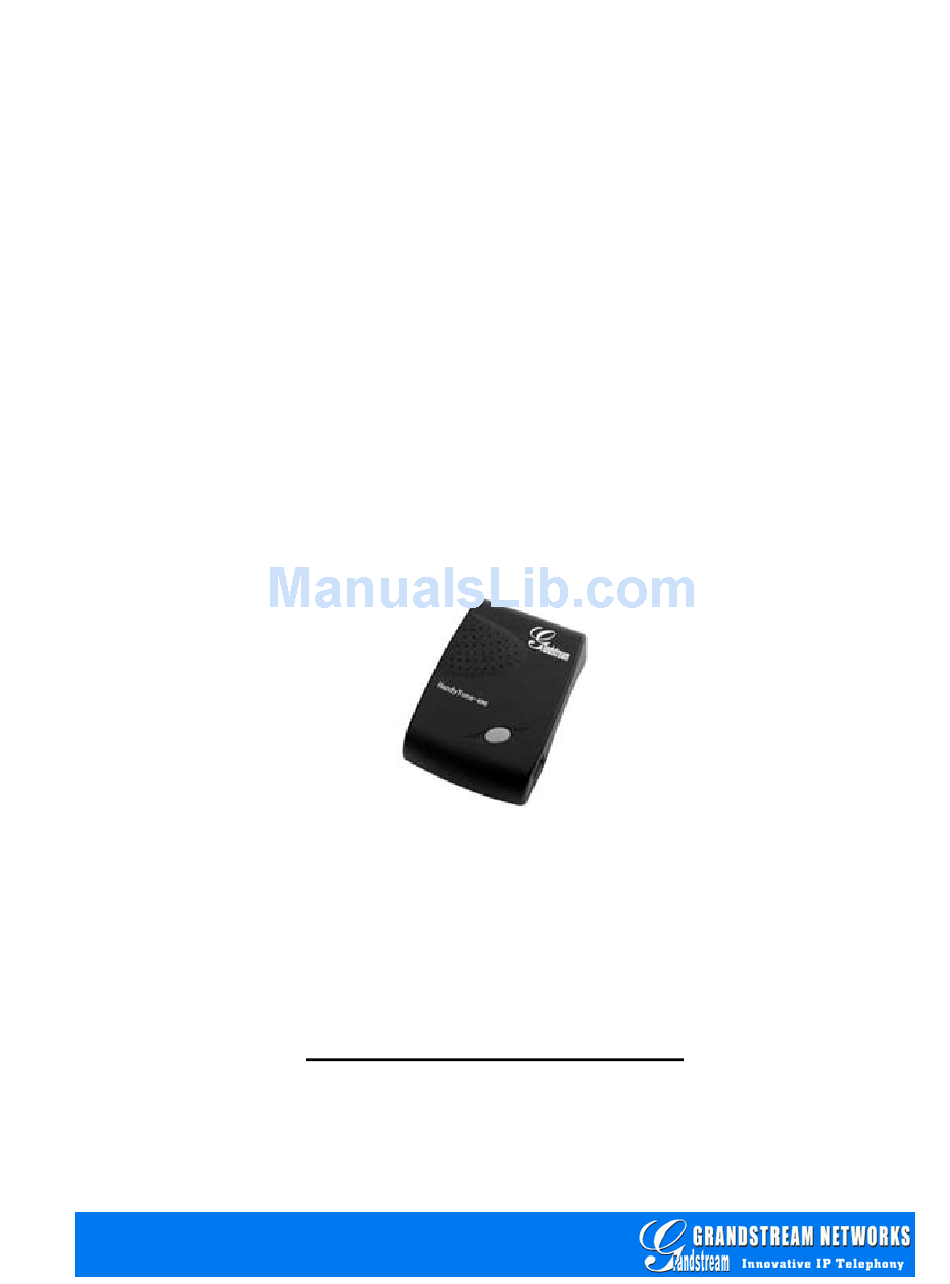

    User Manual HandyTone-486 Analog Telephone Adaptor User Manual 1.0 Version Grandstream Networks, Inc. www.grandstream.com...

  • Page 2: Table Of Contents

    HandyTone-486 User Manual Grandstream Networks, Inc. Table of Contents WELCOME......................3 INSTALLATION ....................4 WHAT IS INCLUDED IN THE PACKAGE ............5 ..................5 AFETY OMPLIANCES PRODUCT OVERVIEW..................6 ....................6 EATURES ................7 ARDWARE PECIFICATION BASIC OPERATIONS..................8 ..........8...

  • Page 3: Welcome

    The HandyTone-486 is fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market. Grandstream HandyTone-486 has been awarded the Best of Show product in 2004 Internet Telephony Conference and Expo.

  • Page 4: Installation

    HandyTone-486 User Manual Grandstream Networks, Inc. Installation HandyTone-486 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total solution for networks providing VoIP services. The HandyTone-486 VoIP functionalities are available via a regular analog telephone. The following photo illustrates the appearance of a HandyTone-486.

  • Page 5: What Is Included In The Package

    HandyTone-486 and will void the manufacturer warranty. Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.

  • Page 6: Product Overview

    HandyTone-486 User Manual Grandstream Networks, Inc. Product Overview Key Features • Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP, DNS, DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc. • Built-in router, NAT, Gateway and DMZ port forwarding •...

  • Page 7: Hardware Specification

    HandyTone-486 User Manual Grandstream Networks, Inc. Hardware Specification The table below describes the difference among these models. Model HandyTone-486 LAN interface 1xRJ45 10Base-T WAN interface 1xRJ45 10Base-T FXS telephone port 1xFXS PSTN port 1x life line port Button Green and red color...

  • Page 8: Basic Operations

    Grandstream Networks, Inc. Basic Operations Get Familiar with Key Pad and Voice Prompt HandyTone-486 has stored a voice prompt menu for quick browsing and simple configuration. To enter this voice prompt menu, simply press the button or *** from the analog phone.

  • Page 9: Make Phone Calls

    HandyTone-486 User Manual Grandstream Networks, Inc. Make Phone Calls 5.2.1 Calling phone or extension numbers There are currently two methods to make a extension number call: a) Dial the numbers number directly and wait for 4 (default) seconds. b) Dial the numbers directly, and press # (assuming that “use #” as dial key is selected in web configuration).
  • Page 10 HandyTone-486 User Manual Grandstream Networks, Inc. The follow is a table of the encoding scheme for the most commonly used characters: . (dot character) _ (underscore character) - (hyphen character) : (column character)

  • Page 11: Call Features

    “#” key if it is configured as a send key or wait for 5 seconds. Call Features 5.3.1 Call Features Table Following table shows the call features of HandyTone-486. Call Features Do not disturb, it will give caller busy tone when called.

  • Page 12: Pstn Pass Through

    Grandstream Networks, Inc. 5.3.2 PSTN Pass Through When HandyTone-486 is out of power, the RJ 11 line jack on the HandyTone-486 side will function as a pass through jack, user will be able to use the same analog phone for PSTN calls.

  • Page 13: Configuration Guide

    Follow section 5.1 with voice menu option 01 to enable HandyTone-486 to use DHCP. 6.1.2 STATIC IP Mode Follow section 5.1 with voice menu option 01 to enable HandyTone-486 to use STATIC IP mode, then use option 02, 03, 04 to set up HandyTone’s IP, Subnet Mask, Gateway respectively.

  • Page 14: Configuration Menu

    Configuration Menu After the correct password is entered in the login screen, the embedded Web server inside the HandyTone-486 will respond with the Configuration Menu screen which is explained in details below. The definitions for all the configuration parameters in the Configuration Menu are following a...
  • Page 15 HandyTone-486 User Manual Grandstream Networks, Inc. Grandstream HandyTone-486 Configuration MAC Address: 00.0B.82.00.XX.XX Product Model: HT486 Program--1.0.X.X Bootloader—1.0.0.XX HTML--1.0.0.XX VOC-- Software Version: 1.0.0.5 ***** Admin Password: (password to configure this IP phone) WAN IP Address: dynamically assigned DHCP (default) PPPoE (will attempt PPPoE if DHCP fails and following is non-blank)
  • Page 16 HandyTone-486 User Manual Grandstream Networks, Inc. This contains the password to access the Web Configuration Menu. Admin This field is case sensitive. Password There are 2 modes under which the HandyTone ATA can operate: WAN IP Address - If DHCP mode is enabled, then all the field values for the Static IP mode are not used (even though they are still saved in the Flash memory.) The HandyTone ATA will acquire its IP address from the first...
  • Page 17 HandyTone-486 User Manual Grandstream Networks, Inc. Advanced Options: Advanced Options: Preferred Vocoder: choice 1: (in listed order) choice 2: choice 3: choice 4: choice 5: choice 6: choice 7: choice 8: G723 rate: 6.3kbps encoding rate 5.3kbps encoding rate iLBC frame size:...
  • Page 18 HandyTone-486 User Manual Grandstream Networks, Inc. No Key Entry (in seconds, default is 4 seconds) Timeout: Use # as Dial Key: Yes (if set to Yes, "#" will function as the "(Re-)Dial" key) 5060 local SIP port: (default 5060) 5004...
  • Page 19 HandyTone-486 User Manual Grandstream Networks, Inc. The BudgeTone HandyTone ATA supports up to 6 different vocoder Preferred types including G.711 A-/U-law，G.723.1, G.726, G.728, G.729A/B, Vocoder iLBC. Depending on the product model, some of these vocoders may not be provided in standard release.
  • Page 20 HandyTone-486 User Manual Grandstream Networks, Inc. Default is No. If set to Yes the Use DNS SRV: If the HandyTone ATA has an assigned PSTN telephone number, User ID is Phone then this field will be set to “Yes”. Otherwise, set it to “No”. If Number “Yes”...
  • Page 21 HandyTone-486 User Manual Grandstream Networks, Inc. This parameter defines whether the HandyTone ATA NAT traversal NAT Traversal mechanism will be activated or not. If activated (by choosing “Yes”) and a STUN server is also specified, then the HandyTone ATA will behave according to the STUN client specification.
  • Page 22 HandyTone-486 User Manual Grandstream Networks, Inc. Send Flash Event This parameter allows the user to control whether to send an SIP NOTIFY message indicating the Flash event, or just to switch to the voice channel when the user presses the Flash key.
  • Page 23 "UDP Only" WAN port LAN IP LAN port Protocol Shows the IP address at the WAN side of the HandyTone-486. WAN IP Address Allow the user to set a specific MAC address. Set in Hex format Cloned WAN MAC Address: Sets the LAN subnet mask.

  • Page 24: Saving The Configuration Changes

    Status Your configuration changes have been saved. They will take effect on next reboot. Click to view your changes The user is recommended to power cycle the HandyTone-486 after seeing the above message. 6.2.4 Rebooting the HandyTone-486 from remotely The administrator of the HandyTone-486 can remotely reboot the HandyTone ATA by pressing the “Reboot”...
  • Page 25 HandyTone ATA even if the HandyTone ATA is behind a NAT. Grandstream provide licensed provisioning system(GAPS series, stand for Grandstream Automated Provisioning System) that can be used to support automated configuration of HandyTone ATA. To enable this feature on the HandyTone ATA, the user just needs to enter the IP address of the GAPS server in the TFTP server field of the configuration screen.

  • Page 26: Software Upgrade

    LAN. It is generally recommended to conduct TFTP upgrade in a controlled LAN environment if possible. For users who do not have local TFTP server, Grandstream provides a NAT-friendly TFTP server on the public Internet for users to download the latest firmware upgrade automatically.
