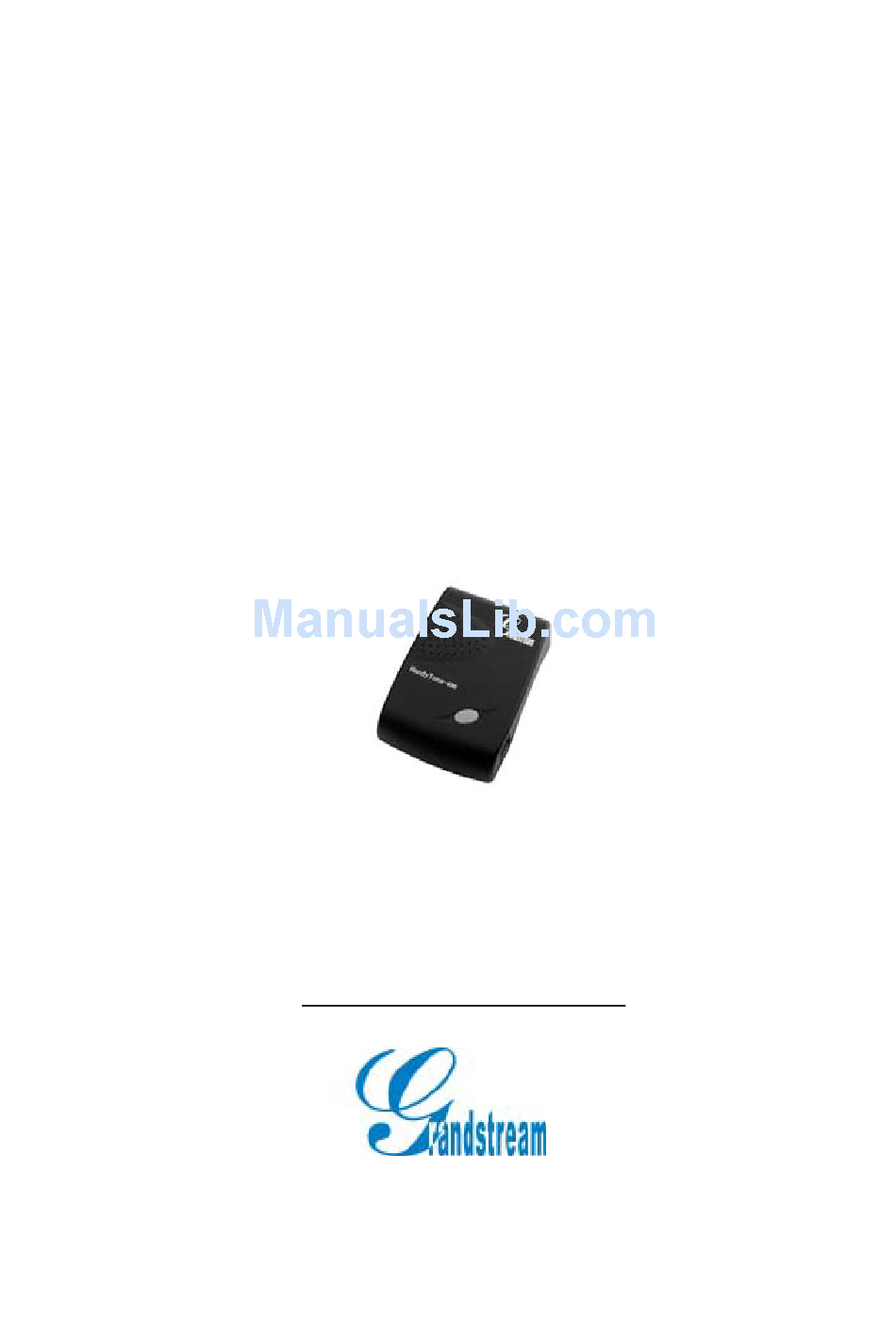

User Manual

HandyTone-286 Rev 3.0
Analog Telephone Adaptor
For Firmware Version 1.0.8.32
Grandstream Networks, Inc.
www.grandstream.com

Advertisement

Table of Contents
loading

Related Manuals for Grandstream Networks HT-286

Summary of Contents for Grandstream Networks HT-286

  • Page 1: User Manual

    User Manual HandyTone-286 Rev 3.0 Analog Telephone Adaptor For Firmware Version 1.0.8.32 Grandstream Networks, Inc. www.grandstream.com...

  • Page 2: Table Of Contents

    AD AND OICE ROMPT ... 10 ... 14 NDICATION -286 IP THROUGH OICE -286 WITH ROWSER ... 34 ENTRAL ERVER TFTP/HTTP... 35 ... 36 OWNLOAD REFIX AND Grandstream Networks, Inc ... 9 ... 16 ROMPT ... 16 ... 36 OSTFIX...
  • Page 3 HandyTone -286 User Manual ANAGING IRMWARE AND RESTORE FACTORY DEFAULT SETTING... 37 GLOSSARY OF TERMS... 388 Grandstream Networks, Inc ONFIGURATION OWNLOAD ... 36...

  • Page 4: Welcome

    Congratulations on becoming an owner of HandyTone-286. You made an excellent choice and we hope you will enjoy all its capabilities. Grandstream's award-wining HandyTone-286 is innovative Analog Telephone Adaptor that offers a rich set of functionality and superb sound quality at ultra-affordable price. They are fully compatible with SIP industry standard and can interoperate with many other SIP compliant devices and software on the market.

  • Page 5: Installation

    HandyTone -286 User Manual Grandstream Networks, Inc Installation HandyTone-286 is a VoIP Analog Telephone Adaptor designed to work with an ordinary analog telephone. The following photo illustrates the appearance of a HandyTone-286. BUTTON/ RED LED/ GREEN LED RJ11 RJ45 Telephone...

  • Page 6: What Is Included In The Package

    Warranty Grandstream has a reseller agreement with our reseller customer. End users should contact the company from whom you purchased the product for replacement, repair or refund. If you purchased the product directly from Grandstream, contact your Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number.

  • Page 7: Product Overview

    • Support firmware upgrade via TFTP or HTTP • Support SIP Session Timer • Support Syslog (on Rev.2.0) • Ultra compact (wallet size) and lightweight design, great companion for travelers • Compact, lightweight Universal Power adaptor Product Overview Grandstream Networks, Inc...

  • Page 8: Hardware Specification

    Temperature Humidity Compliance HandyTone-286 1xRJ45 10Base-T GREEN & RED color Input: 100-240VAC Output: +5VDC, 1200mA UL certified 65mm (W) 93mm (D) 27mm (H) 0.57 lbs (0.26kg) 32 - 104 0 - 40 10% - 95% (non-condensing) FCC/CE/C-Tick Grandstream Networks, Inc...

  • Page 9: Basic Operations

    Enter 12 digit new IP address. The current Config Server Path IP address is announced. Enter 12 digit new IP address. Upgrade protocol for firmware and configuration update. Enter “9” to toggle between: - TFTP - HTTP Grandstream Networks, Inc...

  • Page 10: Make Phone Calls

    To dial a PSTN number such as 6266667890, you might need to enter in some prefix number followed by the phone number. Please check with your VoIP service provider to get the information. If Grandstream Networks, Inc Firmware version information.

  • Page 11: Direct Ip Calls

    While in conversation, pressing the “flash” button on the attached phone will put the remote end on hold. Pressing the “flash” button again will release the previously held party and the bi-directional media will resume. 5.2.4 Call Waiting Grandstream Networks, Inc...

  • Page 12: Call Transfer

    3. If C answers the call, A and C are in conversation. Then A can hang up to complete transfer. 4. If C does not answer the call, A can press “flash” back to talk to B. NOTE: Grandstream Networks, Inc...

  • Page 13: 3-Way Conferencing

    Block Caller ID (for all subsequent calls) Send Caller ID (for all subsequent calls) Block Caller ID (per call) Send Caller ID (per call) Disable Call Waiting (for all subsequent calls) Enable Call Waiting (for all subsequent calls) Grandstream Networks, Inc...

  • Page 14: Fax

    When in conversation without an incoming call, this action will switch to a new channel for a new call. Button flashes every 2 seconds (if DHCP is configured) Button flashes every 2 seconds (if SIP server is Grandstream Networks, Inc...
  • Page 15 GREEN LED mostly indicates normal working status Message Waiting Indication RINGING RINGING INTERVAL In Conversation Grandstream Networks, Inc configured) Button flashes every 2 seconds Red light steady on Button flashes every 2 seconds Button flashes at 1/10 second Button flashes every second...

  • Page 16: Configuration Guide

    • To type IP address into browser to get into the configuration page, please strip out the leading “0” as the browser will parse in octet. e.g.: if the IP address is: 192.168.001.014, please type in: 192.168.1.14. Configuration Guide http:// HandyTone-IP-Address Grandstream Networks, Inc...

  • Page 17: End User Configuration

    Registered: Yes PPPoE Link Up: disabled NAT: detected NAT type is full cone NAT Mapped IP: 123.45.6.789 Grandstream Device Configuration Login All Rights Reserved Grandstream Networks, Inc. 2005 Grandstream Device Configuration Program-- 1.0.8.19 Bootloader-- 1.0.8.11 HTML-- 1.0.8.19 VOC-- Grandstream Networks, Inc...
  • Page 18 This shows what kind of NAT the HandyTone-286 is behind. NAT Mapped IP WAN side mapped IP if HandyTone-286 is connected to a NAT router. All Rights Reserved Grandstream Networks, Inc. 2005 Grandstream Networks, Inc This is very important ID for ISP...

  • Page 19: Basic Settings

    Time Zone: GMT-5:00 (US Eastern Time, New York) Daylight Savings normal time) Time: Optional Rule: Grandstream Device Configuration (purposely not displayed for security protection) (default for HTTP is 80) dynamically assigned via DHCP (default) or PPPoE DHCP hostname: DHCP domain:...
  • Page 20 HandyTone -286 User Manual Grandstream Networks, Inc Update All Rights Reserved Grandstream Networks, Inc. 2005...
  • Page 21 (even though they are still saved in the Flash memory) and the IP phone will acquire its IP address from the DHCP server in the network. To use PPPoE feature please set the PPPoE account settings if the HT-286 is connected directly to a DSL modem. The HT-286 will attempt to establish a PPPoE session if any of the PPPoE fields is set.

  • Page 22: Advanced User Configuration

    Authenticate Password: protection) Name: Advanced Options: Preferred Vocoder: (in listed order) G723 rate: Grandstream Device Configuration (purposely not displayed for security sip.mycompany.com (e.g., sip.mycompany.com, or IP address) (e.g., proxy.myprovider.com, or IP address, if 123456789 (the user part of an SIP address)
  • Page 23 Yes (if set to Yes, "#" will function as the Dial key) 5060 (default 5060) 5004 (1024-65535, default 5004) Yes, STUN server is: (in seconds, default 20 seconds) (used in SIP/SDP message if specified) Grandstream Networks, Inc 802.1p priority value (URI or IP:port) (0-7)
  • Page 24 Yes (caller ID will be blocked if set to Yes) Use From Header 60 seconds Standard NONE (in seconds. default 180 seconds) (in seconds. default and minimum 90 seconds) No (Request for timer when making outbound calls) Grandstream Networks, Inc via SIP INFO Use Privacy Header...
  • Page 25 Always Skip the Firmware Check Yes (cfg file would be authenticated before acceptance Yes (configuration update via keypad is disabled if set 0dB default 0dB default Frequency 1 (Hz) Grandstream Networks, Inc HTTP fm.grandstream.com/gs Firmware File Postfix: Config File Postfix: 10080 minutes (default 7...
  • Page 26 A user can configure vocoders in a preference order that will be offered in SIP INVITE message. 1400 2600 Update All Rights Reserved Grandstream Networks, Inc. 2005 Grandstream Networks, Inc...
  • Page 27 IP address (Source IP in the IP header) that it is registered to. Default is messages from SIP proxy only Use DNS SRV This parameter controls whether the IP phone supports the DNS SRV route function. Grandstream Networks, Inc...
  • Page 28 HandyTone -286 User Manual Grandstream Networks, Inc User ID is phone If the HandyTone-286 has an assigned PSTN telephone number, then this field number will be set to “Yes”. Otherwise, set it to “No”. If “Yes” is set, a “user=phone”...
  • Page 29 This parameter sets the payload type for DTMF using RFC2833 Type Send Flash Event Default is NO. If set to yes, flash will be sent as DTMF event. FXS Impedance Selects the impedance of the analog telephone connected to the Phone port. Grandstream Networks, Inc...
  • Page 30 HandyTone -286 User Manual Grandstream Networks, Inc Caller ID Scheme Select the Caller ID Scheme to suit the standard of different area. • Bellcore (North America) • CID (Canada) • DTMF (Brazil) • DTMF (Denmark) • DTMF (Sweden) • ETSI-FSK (France, Germany, Norway, Taiwan, UK-CCA) •...
  • Page 31 Here [00:0b:82:00:a1:be][000] Ethernet link is up Session Expiration Grandstream implemented SIP Session Timer. The session timer extension enables SIP sessions to be periodically “refreshed” via a re-INVITE request. Once the session interval expires, if there is no refresh via a re-INVITE message, the session will be terminated.
  • Page 32 Allow conf SIP If set to Yes, these four fields: SIP User ID, Authenticate ID, Authenticate Account Password and Name will be included in Basic Settings configuration page. in Basic Settings Override MTU size Override the MTU size. Grandstream Networks, Inc...

  • Page 33: Saving The Configuration Changes

    Once done, the following screen will be displayed to indicate that rebooting is underway. Grandstream Device Configuration BASIC SETTINGS ADVANCED SETTINGS They will take effect on next reboot. All Rights Reserved Grandstream Networks, Inc. 2005 Grandstream Networks, Inc...

  • Page 34: Configuration Through A Central Server

    HandyTone ATAs can easily manage the configuration and service provision to individual devices remotely. Grandstream provides a licensed provisioning system called GAPS that can be used to support automated configuration of HandyTone ATA. GAPS (Grandstream Automated Provisioning System)

  • Page 35: Software Upgrade With Tftp

    For users who do not have a local firmware upgrade server, Grandstream provides a NAT-friendly TFTP server on the public Internet for firmware upgrade. Please check the Services section of Grandstream’s Web site to obtain our public TFTP server’s IP address.

  • Page 36: Configuration File Download

    Configuration File Download Grandstream SIP Device can be configured via Web Interface as well as via Configuration File through TFTP or HTTP. “Config Server Path” is the TFTP or HTTP server path for configuration file. It needs to be set to a valid URL, either in FQDN or IP address format. The “Config Server Path” can be same or different from the “Firmware Server Path”.

  • Page 37: Restore Factory Default Setting

    Restore the Factory Default Setting will DELETE all configuration information of the device. Please backup or print out all the settings before you approach to following steps. Grandstream will not take any responsibility if you lose all the parameters of setting and cannot connect to your service provider.

  • Page 38: Glossary Of Terms

    OSI network and OSI link layer. It is used when Analogue Telephone Adapter. Covert analogue telephone to be used in data network for VoIP, like Grandstream HT series products. CODEC Abbreviation for Coder-Decoder. It's an analog-to-digital (A/D) and digital-to-analog (D/A) converter for translating the signals from the outside world to digital, and back again.
  • Page 39 A FQDN consists of a host and domain name, including top-level domain. For example, www.grandstream.com second-level domain, and.com is the top level domain. Foreign eXchange Office is a fully qualified domain name. www is the host, grandstream is the Grandstream Networks, Inc Internet service that translates...
  • Page 40 Hyper Text Transfer Protocol; the World Wide Web protocol that performs the request and retrieve functions of a server Internet Protocol. A packet-based protocol for delivering data across networks. Grandstream Networks, Inc telephony to describe the process of removing telephone...
  • Page 41 Network Time Protocol, a protocol to exchange and synchronize time over networks The port used is UDP 123 Grandstream products using NTP to get time from Internet OBP/SBC Outbound Proxy or another name Session Border Controller. A device used in OBP/SBCs are put into the signaling and media path between calling and called party.
  • Page 42 (RFC3261). SIP is a text-based protocol suitable for integrated voice-data applications. SIP is designed for voice transmission and uses fewer resources and is considerably less complex than H.323. All Grandstream products are SIP based STUN Simple Traversal of UDP over NATs, is a multiple NATs) to find out its public address, the type of NAT it is behind and the internet side port associated by the NAT with a particular local port.
  • Page 43 VoIP encompasses many protocols. All the protocols do some form of signalling of call capabilities and transport of voice data from one point to another. e.g: SIP, H.323, etc. Grandstream Networks, Inc file transfer protocol, with the functionality of a...
