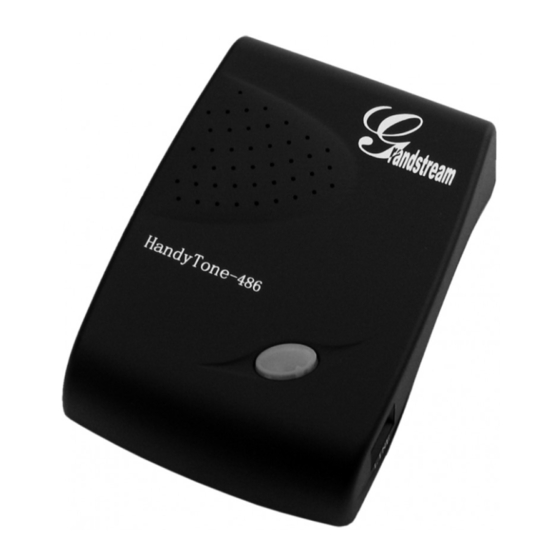

Grandstream Networks HANDYTONE-486 User Manual
Analog telephone adaptor for firmware version 1.0.8.32
Hide thumbs
Also See for HANDYTONE-486:
- User manual (34 pages) ,
- User manual (45 pages) ,
- User manual (26 pages)
Subscribe to Our Youtube Channel
Related Manuals for Grandstream Networks HANDYTONE-486
Summary of Contents for Grandstream Networks HANDYTONE-486
-
Page 1: User Manual
User Manual HandyTone-486 Analog Telephone Adaptor For Firmware Version 1.0.8.32 Grandstream Networks, Inc. www.grandstream.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 600030... -
Page 2: Table Of Contents
HandyTone-486 User Manual WELCOME... 4 INSTALLATION ... 5 WHAT IS INCLUDED IN THE PACKAGE ... 7 ... 7 AFETY OMPLIANCES ... 7 ARRANTY PRODUCT OVERVIEW ... 8 ... 8 EATURES ARDWARE PECIFICATION BASIC OPERATIONS ... 10 AMILIAR WITH ... 11... - Page 3 HandyTone-486 User Manual 6.2.4 Saving the Configuration Changes... 35 6.2.5 Rebooting the HandyTone-486 from remote ... 36 ONFIGURATION THROUGH A SOFTWARE UPGRADE ... 37 IRMWARE PGRADE THROUGH ONFIGURATION OWNLOAD IRMWARE AND ONFIGURATION ANAGING IRMWARE AND RESTORE FACTORY DEFAULT SETTING... 39 GLOSSARY OF TERMS...
-
Page 4: Welcome
HandyTone-486 User Manual Grandstream Networks, Inc. Welcome Congratulations on becoming an owner of HandyTone-486. You made an excellent choice and we hope you will enjoy all its capabilities. Grandstream's award-wining HandyTone-486 is an all-in-one VoIP integrated access device that features superb audio quality, rich functionalities, high level of integration, compactness and ultra- affordability. -
Page 5: Installation
HandyTone-486 User Manual HandyTone-486 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a total solution for networks providing VoIP services. The HandyTone-486 VoIP functionalities are available via a regular analog telephone. The following photo illustrates the appearance of a HandyTone-486. - Page 6 2. Connect a PSTN telephone line to LINE port (optional). 3. Insert the Ethernet cable into the WAN port of HandyTone-486 and connect the other end of the Ethernet cable to an uplink port (a router or a modem, etc.) 4.
-
Page 7: What Is Included In The Package
3) One Ethernet cable Safety Compliances The HandyTone-486 is compliant with various safety standards including FCC/CE and C-tick. Its power adaptor is compliant with UL standard. The HandyTone-486 should only operate with the universal power adaptor provided in the package. Warranty Grandstream has a reseller agreement with our reseller customer. -
Page 8: Product Overview
HandyTone-486 User Manual Key Features • Supports SIP 2.0(RFC 3261), TCP/UDP/IP, RTP/RTCP, HTTP, ICMP, ARP/RARP, DNS, DHCP (both client and server), NTP, PPPoE, STUN, TFTP, etc. • Built-in router, NAT, Gateway and DMZ port forwarding. Can also be configured to function as a two Ethernet ports bridge (NAT function is disabled) •... -
Page 9: Hardware Specification
Rev.2.0 is that a HandyTone-486 Rev.2.0 line port can function as PSTN pass through while a HandyTone-486 (Rev.1.0, old model, no longer shipped) line port is just a life line port and will bridge to PSTN only when the device is out of power. -
Page 10: Basic Operations
HandyTone-486 stores a voice prompt menu (Interactive Voice Response or IVR) for quick browsing and simple configuration. To enter this voice prompt menu, simply press the button on the HandyTone-486 or pick up the phone and dial “***”. The following table shows how to use the voice prompt menu to configure the device. -
Page 11: Make Phone Calls
HandyTone-486 User Manual Firmware Version Firmware Upgrade “Direct IP Calling” “RESET” “Invalid Entry” NOTES: • Once the LED button is pressed, it enters voice prompt main menu. If the button is pressed again while it is already in the voice prompt menu state, it jumps to “Direct IP Calling” option and dial tone plays in this state •... -
Page 12: Direct Ip Calls
HandyTone-486 User Manual rule to dial 16266667890 as if you were calling from a regular analog phone, followed by pressing the # or wait for 4 seconds. 5.2.2 Direct IP calls Direct IP calling allows two parties, that is, a HandyTone with an analog phone and another VoIP Device, to talk to each other in an ad hoc fashion without a SIP proxy. -
Page 13: Call Transfer
HandyTone-486 User Manual 5.2.5 Call Transfer 5.2.5.1 Blind Transfer Assuming that call party A and B are in conversation. A wants to Blind Transfer B to C: 1. A presses “FLASH” on the analog phone ( or Hook Flash for old model phones) to get a dial tone. -
Page 14: 3-Way Conferencing
To make a PSTN call, press the PSTN access code (*00 by default, or any number configured in web configuration page) to switch to PSTN line and get a dial tone, then dial the PSTN number. When HandyTone-486 is out of power, it will function as a jack. User can use the same analog phone for PSTN calls. -
Page 15: Fax
HandyTone-486 supports FAX in two modes: T.38 (Fax over IP) and fax pass through. T.38 is the preferred method because it is more reliable and works well in most network conditions. If the service provider supports T.38, please use this method by selecting Fax mode to be T.38. -
Page 16: Led Light Pattern Indication
LED Light Pattern Indication Following are the LED light pattern indications. RED LED always indicates not abnormal status DHCP Failed or WAN No Cable HandyTone-486 fails to register Firmware Upgrading Device Malfunctions GREEN LED mostly indicates normal working status Message Waiting Indication... -
Page 17: Configuration Guide
6.1.2 STATIC IP Mode Follow section 5.1 with voice menu option 01 to enable HandyTone-486 to use STATIC IP mode, then use option 02, 03, 04, 05 to set up IP address, Subnet Mask, Gateway, and DNS server respectively. 6.1.3 Firmware Server IP Address Follow section 5.1 with voice menu option 13 to configure the IP address of the firmware server. -
Page 18: Configuring Handytone-486 With Web Browser
“0”s as the browser will parse in octet. e.g.: if the IP address is: 192.168.001.014, please type in: 192.168.1.14. 6.2.2 End User Configuration Once this request is entered and sent from a Web browser, the HandyTone-486 will respond with the following login screen: VoIPon www.voipon.co.uk sales@voipon.co.uk... - Page 19 HandyTone-486 User Manual Grandstream Device Configuration Password All Rights Reserved Grandstream Networks, Inc. 2005 The password is case sensitive with a maximum length of 25 characters. The factory default password for End User and administrator is “123” and “admin” respectively. Only administrator can get access to “ADVANCED SETTINGS”...
- Page 20 HandyTone-486 User Manual IP Address: Subnet Mask: Default Router: DNS Server 1: DNS Server 2: Time Zone: GMT-5:00 (US Eastern Time, New York) Daylight Yes Optional Rule: Savings Time: PSTN Access Code: NAT/Bridge/DHCP Server Information & Configuration: Device Mode: NAT Router...
- Page 21 HandyTone-486 User Manual End User This field contains the password to access the Web Configuration Menu. The Password password is case sensitive with a maximum of 25 characters. This is the device’s internal HTTP server port. Default is 80. Web Port...
- Page 22 PSTN Access Code Line port of ATA and make outgoing calls. Device Mode Default is NAT router mode. HandyTone-486 Rev.2.0 can be configured in Bridge mode so the device functions as a bridge. WAN Side HTTP Default is “No”. The access to configuration page via WAN port is disabled.
- Page 23 DMZ IP: Forward all WAN IP traffic to a specific IP address if no matching port is used by HandyTone-486 itself or in the defined port forwarding. Port Forwarding: Allow user to forward a matching (TCP/UDP) port to a specific LAN IP address with a specific (TCP/UDP) port.
-
Page 24: Advanced User Configuration
HandyTone-486 User Manual Total SIP Message Received: Total RTP Packet Sent: 0 Total RTP Packet Received: 0 Total RTP Packet Loss: 0 All Rights Reserved Grandstream Networks, Inc. 2005 MAC Address The device ID, in HEX format. troubleshooting. WAN IP Address This field shows WAN port IP address. - Page 25 HandyTone-486 User Manual To login to the Advanced User Configuration page, please follow the instructions in section 6.2.1 to get to the following login page. The password is case sensitive and the factory default password for Advanced User is “admin”.
- Page 26 HandyTone-486 User Manual Voice Frames per TX: Fax Mode: Layer 3 QoS: Layer 2 QoS (VoIP): 802.1Q/VLAN Tag Layer 2 QoS (PC): 802.1Q/VLAN Tag Allow incoming SIP messages from SIP proxy only: Use DNS SRV: User ID is phone number:...
- Page 27 HandyTone-486 User Manual Enable Call Features: locally) Use Bell-style 3-way Conference: Disable Call-Waiting: Send DTMF: DTMF Payload Type: Send Flash Event: 800 ms Onhook Threshold: FXS Impedance: 600 Ohm (North America) Caller ID Scheme: Bellcore (North America) Onhook Voltage: Polarity Reversal: time.nist.gov...
- Page 28 HandyTone-486 User Manual and Provisioning: Automatic Upgrade: Firmware Key: Authenticate Conf File: Lock keypad update: Allow conf SIP Account in Basic Settings: Override MTU Size: Volume Amplification: TX Call Progress Tones: Dial Tone Recall Dial Tone Message Waiting Confirmation Audible Ringing...
- Page 29 HandyTone-486 User Manual Admin Password Administrator password. Only administrator can configure the “Advanced Settings” page. Password field is purposely left blank for security reason after user clicks UPDATE button. This field is case sensitive and the maximum password length is 25 characters.
- Page 30 HandyTone-486 User Manual Voice Frames per This field contains the number of voice frames transmitted in a single packet. When setting this value, the user should be aware of the requested packet time (used in SDP message) as a result of configuring this parameter. This parameter...
- Page 31 HandyTone-486 User Manual Early Dial Default is “No”. Use only if proxy supports 484 response. Allow outgoing call Default is “No”. When set to “Yes”, the device still has a dial tone and allows without user make outgoing calls even if the device is not registered to the SIP proxy.
- Page 32 HandyTone-486 User Manual Offhook This parameter allows a user to configure a User ID or extension number to be automatically dialed upon offhook. Please note that only the user part of a SIP Auto-Dial address needs to be entered here. The HandyTone ATA will automatically append the “@”...
- Page 33 HandyTone-486 User Manual Send Anonymous If this parameter is set to “Yes”, user ID will be sent as anonymous, essentially blocks the Caller ID from displaying. Anonymous Method Allows displayed Caller ID to be taken from Privacy Header or From Header.
- Page 34 HandyTone-486 User Manual Session Expiration Grandstream implemented SIP Session Timer. The session timer extension enables SIP sessions to be periodically “refreshed” via a re-INVITE request. Once the session interval expires, if there is no refresh via a re-INVITE message, the session will be terminated.
-
Page 35: Saving The Configuration Changes
Saving the Configuration Changes Once a change is made, users should click on the “Update” button in the Configuration page. The HandyTone-486 will then display the following screen to confirm that the changes have been saved. Grandstream Device Configuration STATUS BASIC SETTINGS ADVANCED SETTINGS Your configuration changes have been saved. -
Page 36: Rebooting The Handytone-486 From Remote
6.2.5 Rebooting the HandyTone-486 from remote The user/administrator of the HandyTone-486 can remotely reboot the HandyTone-486 by pressing the “Reboot” button at the bottom of the configuration page. Once done, the following screen will be displayed to indicate that rebooting is underway. -
Page 37: Software Upgrade
HandyTone-486 User Manual Software upgrade can be done via either TFTP or HTTP. The corresponding configuration settings are in the ADVANCED SETTINGS configuration page. Firmware Upgrade through TFTP/HTTP To upgrade via TFTP or HTTP, the “Firmware Upgrade and Provisioning upgrade via” field (IVR option 17) needs to be set to TFTP or HTTP, respectively. -
Page 38: Configuration File Download
“cfg000b820102ab”. The configuration file name should be in lower cases. Firmware and Configuration File Prefix and Postfix Starting from firmware version 1.0.7.11 for HandyTone-486 Rev 2.0, adding prefix and postfix for both firmware and configuration file is supported. Firmware Prefix and Postfix allows device to download the firmware name with the matching Prefix and Postfix. -
Page 39: Restore Factory Default Setting
The device will reboot automatically and restore to factory default setting. NOTE: • Please be aware by default the HandyTone-486 WAN side HTTP access is disabled. After a factory reset, the device’s web configuration page can be accessed only from its LAN port, please refer to instructions in section 6.2.1 for details. -
Page 40: Glossary Of Terms
HandyTone-486 User Manual ADSL Asymmetric Digital Subscriber Line: Modems attached to twisted pair copper wiring that transmit from 1.5 Mbps to 9 Mbps downstream (to the subscriber) and from 16 kbps to 800 kbps upstream, depending on line distance. Automatic Gain Control, is an... - Page 41 HandyTone-486 User Manual divided into 24 time slots of 10ms, and twelve full-duplex accesses per carrier, for a total of 120 possible combinations. A DECT base station (an RFP, Radio Fixed Part) can transmit all 12 possible accesses (time slots) simultaneously by using different frequencies or using only one frequency.
- Page 42 HandyTone-486 User Manual Foreign eXchange Station An FXS device has hardware to generate the ring signal to the FXO extension (usually an analog phone). An FXS device will allow any FXO device to operate as if it were connected to the phone company.
- Page 43 HandyTone-486 User Manual format and compression/translation of the signal into Internet protocol (IP) packets for transmission over the Internet or other packet-switched networks; the process is reversed at the receiving end. The terms IP Telephony and Internet Telephony are often used to mean the same;...
- Page 44 HandyTone-486 User Manual i.e. the phone service we use for every ordinary phone call, or called POT (Plain Old Telephone), or circuit switched network. RTCP Real-time Transport Control Protocol, defined in Transport Protocol (RTP), It partners RTP in the delivery and packaging of multimedia data, but does not transport any data itself.
- Page 45 HandyTone-486 User Manual another. UDP does not provide the reliability and ordering guarantees that datagrams may arrive out of order or go missing without notice. However, as a result, UDP is faster and more efficient for many lightweight or time-sensitive purposes.
