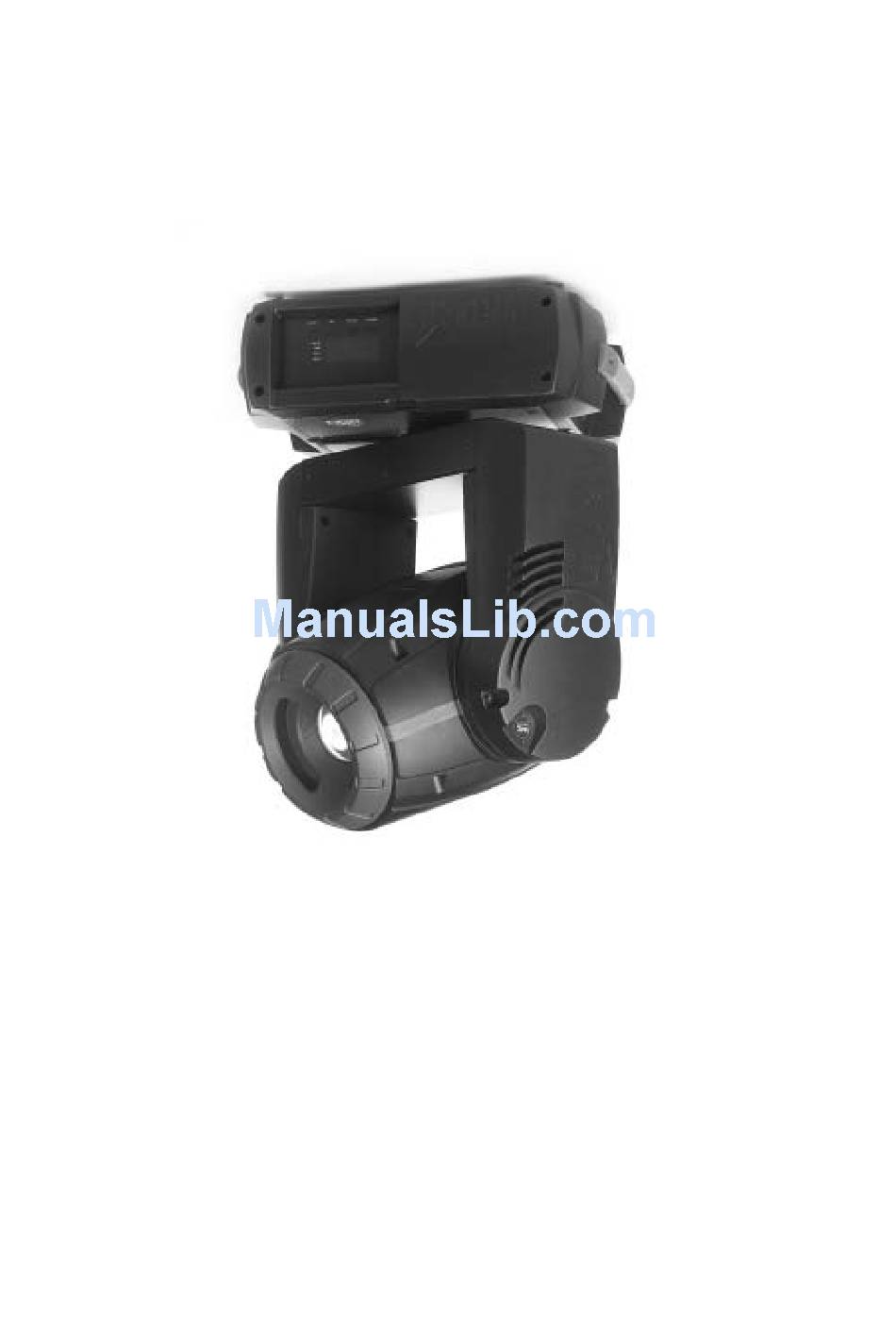

  • Page 1 MAC 250 Krypton user manual...
  • Page 2 128.5° 128.5° © 2001-2002 Martin Professional A/S, Denmark. All rights reserved. No part of this manual may be reproduced, in any form or by any means, without permission in writing from Martin Professional A/S, Denmark. Printed in Denmark. P/N 35000126 Rev. A...

  • Page 3: Table Of Contents

    MAC 250 Krypton safety information ........

  • Page 4: Introduction

    This manual is preliminary and describes the specified functionality. Some of the described features are not present in the initial release of the MAC 250 Krypton software. Please check the Martin web site at http://www.martin.dk for the latest product software and documentation.
  • Page 5 • Never place filters or other materials over the lens. • Do not modify the fixture or install other than genuine Martin parts. • Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F). Protection from injury due to falls •...

  • Page 6: Setup

    C O M P A T I B L E L A M P S A Philips MSD 250/2 lamp is included. The MAC 250 Krypton lamp options are shown in the table below. Installing any other lamp may damage the fixture.

  • Page 7: Ac Power

    Important! Verify that power supply settings match the local AC supply before use. The MAC 250 Krypton is factory configured for 230 V / 50 Hz operation. If your AC power supply is different, the fixture must be configured for the local voltage and frequency. Always use the settings that are closest to your AC supply.

  • Page 8: Installation

    L O C A T I O N A N D O R I E N T A T I O N The MAC 250 Krypton may be installed in any orientation. It can be fastened directly to a suitable surface, hung with a rigging clamp, or placed directly on a level surface.

  • Page 9: Connecting The Serial Data Link

    The MAC 250 Krypton includes an omega clamp mounting bracket to which 1 or 2 rigging clamps (not included) can be bolted. The clamp mounting bracket fastens to the base as shown with 1/4-turn fasteners. Figure 3: Clamp mounting bracket Warning! Attach an approved safety cable to the attachment point provided in the base.
  • Page 10 • Never use a “Y” connector to split the link. To split the serial link into branches use a splitter such as the Martin 4-Channel Opto-Isolated RS-485 Splitter/Amplifier. • Do not overload the link. Up to 32 devices may be connected on a serial link.

  • Page 11: Control Panel

    Tailoring performance M O V E M E N T The MAC 250 Krypton provides the three menus with options for optimizing movement to suit different applications. • , the pan and tilt invert menu, allows you to swap the pan and tilt channels ( >...

  • Page 12: Information Readouts

    ( ). Reset this counter after I N FO >T I ME > L H R> R SE T installing a new lamp. Press [up] for 5 seconds while displayed to reset. MAC 250 Krypton...

  • Page 13: Test And Service Utilities

    L A M P S T R I K E S Read the total number of lamp strikes ( ), and the number of lamps strikes IN F O> TI M E> L S T >T OT L since the counter was last reset ( ).
  • Page 14 U P L O A D M O D E The upload mode command ( ) prepares the fixture for a software update. This command is U TI L >U P Ld not necessary, however, as upload mode is engaged automatically by the uploader. MAC 250 Krypton...

  • Page 15: Dmx-512 Control

    DMX-512 CONTROL The MAC 250 Krypton is compatible with USITT DMX512 controllers. The full protocol is available in “DMX protocol” on page 27. The fixture has two DMX operating modes, 16-bit and 16-bit Extended. 16-bit Extended mode uses 17 DMX channels, three more than the 14 DMX channels than standard 16-bit mode requires.

  • Page 16: Speed Control

    (PTSP in the control menu). Channel 14 (channel 17 in 16-bit Extended mode) provides tracking values that allow you to override the shortcuts setting (SCUT in the control menu). See the DMX table for details. MAC 250 Krypton...

  • Page 17: Optical Configuration

    PTICAL CONFIGURATION Gobos The MAC 250 Krypton accepts up to eight metal or glass gobos with an outside diameter of 22.5 mm and a maximum image diameter of 17 mm. S T A N D A R D G O B O C O N F I G U R A T I O N The MAC 250 Krypton provides 7 gobos as shown below.
  • Page 18 5 Squeeze the ends of the retention spring together and remove. Push the gobo out from the back and remove. 6 Orient the gobo as shown in “Gobo orientation” on page 19 and insert the replacement gobo into the holder. Secure the gobo with the retention spring. MAC 250 Krypton...
  • Page 19 7 Insert the gobo holder back in the gobo wheel using a small flathead screwdriver to lift the retaining blades. 8 Replace the cover before applying power. G O B O O R I E N T A T I O N Figure 4 shows the correct orientation for different gobo types.

  • Page 20: Color Filters

    Color filters S T A N D A R D C O N F I G U R A T I O N The MAC 250 Krypton provides 12 dichroic color filters as shown below. Position Color Yellow 603 Blue 104...

  • Page 21: Prism

    4 Turn the color wheel to access the desired color filter. Press the filter forwards slightly to release it and then grasp it by the edges and remove. 5 To insert a filter, slide it under the retention spring until it snaps into place.
  • Page 22 5 Using a Philips screwdriver, remove the half-circle shaped plate that holds the prism into place (as indicated in this illustration). 6 Remove the rubber belt to free the prism and replace it with a compatible rotating prism (contact your Martin dealer for a list of available prisms).
  • Page 23 7 Replace the rubber drive belt over the rotating prism and screw the half-circle shaped plate into place. The prism should be able to rotate freely. 8 Reinsert the prism module into the fixture, reattach the leads (these are numbered) to the PCBs, and screw the retaining plates into place.

  • Page 24: Service

    ERVICE The MAC 250 Krypton requires regular maintenance to keep performing at their peak. Excessive dust, grease, and smoke fluid buildup degrades performance and causes overheating and damage that is not covered by the warranty. The maintenance schedule will depend on the application and should be discussed with your Martin distributor.

  • Page 25: Lubrication

    Lubrication Use only silicone lubricant, Martin P/N 37302003 (500 ml) or P/N 37302004 (200 ml, in applicator bottle). No other lubricant is approved for use. When applying lubricant, always remove excess and do not get oil on other parts. 1 Check the focus mechanism and apply a drop of lubricant to the 3 metal slides if movement is rough.

  • Page 26: Updating Software

    Updating software The latest MAC 250 Krypton firmware is available from the support area of the Martin web site at www.martin.dk. It can be installed via the serial data link using a supported Martin uploader such as the MP-2, or via a LightJockey 4064 ISA DMX interface.

  • Page 27: Dmx Protocol

    PROTOCOL 16 Bt 16 Ex (16 Bit Mode) (16 Bit Extended) Value Percent Function Shutter, Strobe, Reset, Lamp On/Off 0 - 19 0 - 7 Shutter closed 20 - 49 8 - 19 Shutter open Strobe, fast → slow If DMX Reset is disabled in the menu, 50 - 72 20 - 28 a reset command can only be...
  • Page 28 Left → right (128 = neutral) 0 - 255 0 - 100 Pan Fine (Lowest Significant Byte) Left → right 0 - 255 0 - 100 Tilt Left → right (128 = neutral) 0 - 255 0 – 100 MAC 250 Krypton...
  • Page 29 Tilt Fine (Lowest Significant Byte) Left → right 0 - 255 0 – 100 Pan/Tilt Speed 0 - 2 0 - 1 Tracking Fast → slow 3 - 245 1 - 96 246 - 248 96 - 97 Tracking, PTSP NORM (menu override) 249 - 251 98 - 98 Tracking, PTSP FAST (menu override)

  • Page 30: Control Menu

    SC UT Effect wheels do not cross open position OF F 0-100% dI CU DI M 1 Tungsten DI M 2 Return all personality settings (not calibrations) to factory dF S E FA CT LO A D defaults MAC 250 Krypton...
  • Page 31 Hours of operation since counter reset. To reset, display TI ME / L HR RS E T IN F O counter and press [up] for 5 seconds. Total hours of operation with lamp on since fabricated TO T L Lamp hours since counter reset. To reset, display counter RS E T and press [up] for 5 seconds.
  • Page 32 CW F Clockwise rotation, fast CCWF Counter-clockwise rotation, fast CW M Clockwise rotation, medium CCWM Counter-clockwise rotation, medium CW S Clockwise rotation, slow CCWS Counter-clockwise rotation - slow 0-255 Clockwise rotation of gobo wheel. Slow - fast. MAC 250 Krypton...
  • Page 33 PRIS Prism in MA N (cont.) Prism out Clockwise rotation - fast CCWF Counter-clockwise rotation - fast Clockwise rotation - medium CCWM Counter-clockwise rotation - medium Clockwise rotation - slow CCWS Counter-clockwise rotation - slow 0-255 Focus, Infinity-Near 0-255 Pan, Left-Right TILT 0-255 Tilt, Up-Down...

  • Page 34: Error Messages

    • Contact service technician. dRER ...if there is a drive current error. • Contact service technician. dPER ...if there is a display programming • Contact service technician. error. Table 5: Error messages MAC 250 Krypton...

  • Page 35: Troubleshooting

    2 and 3 in the fixture that behaves erratically. Shutter closes suddenly. The color wheel, gobo wheel, or a • Contact Martin technician for service if the prob- gobo has lost its index position and the lem persists. fixture is resetting the effect.

  • Page 36: Circuit Board Connections

    IRCUIT BOARD CONNECTIONS MAC 250 Krypton...

  • Page 37: Specifications - Mac 250 Krypton

    DMX Channels..................14/17 Specifications - MAC 250 Krypton...
  • Page 38 Measurement source................Philips MSD 250/2 Beam Diam eter as function of distance 7.00 6.00 5.00 4.00 3.00 2.00 1.00 0.00 Distance [m ] MAC 250 Krypton...
  • Page 39 Intensity as function of distance 1000000 100000 10000 1000 Distance [m] Polar Plot 140000 120000 100000 80000 60000 40000 20000 Be am Angle [°] Specifications - MAC 250 Krypton...
