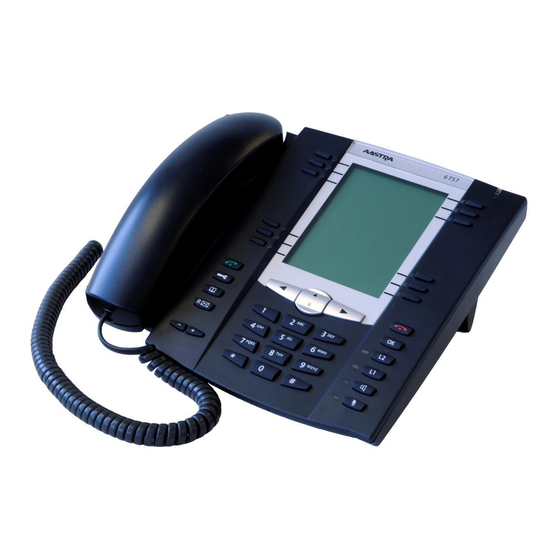

Aastra Model 6757i IP Phone

User Guide

Release 3.2.2
Service Pack 3 Hot Fix 1
41-001385-00 Rev 01 – 06.2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6757i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aastra 6757i

  • Page 1: User Guide

    Aastra Model 6757i IP Phone User Guide Release 3.2.2 Service Pack 3 Hot Fix 1 41-001385-00 Rev 01 – 06.2013...
  • Page 2: Software License Agreement

    Software in object form solely with the Equipment for which the Software was intended. This Product may integrate programs, licensed to Aastra by third party Suppliers, for distri- bution under the terms of this agreement. These programs are confidential and proprietary, and are protected as such by copyright law as unpublished works and by international treaties to the fullest extent under the applicable law of the jurisdiction of the Customer.
  • Page 3: Table Of Contents

    UI................14 Phone Options via the Aastra Web UI .
  • Page 4: Content

    Content Restarting Your Phone ..................50 Phone Lock.
  • Page 5 Content Making Calls ....................116 Dialing a Number .
  • Page 6 Content Preferred Line and Preferred Line Timeout..............174 Message Waiting Indicator .
  • Page 7 Content Limited Warranty (Australia Only) ..............Warranty-2 Repair Notice.
  • Page 8: Welcome

    About this Guide This guide explains how to use the basic features of your new 6757i phone. Not all features listed are available by default. Contact your system or network administrator to find out which features and services are available to you on your system.
  • Page 9: Requirements

    Aastra Telecom. Contact your Administrator for more information. Installation and Setup If your System Administrator has not already setup your 6757i phone, please refer to the Aastra 6757i Installation Guide for basic installation and physical setup information. For more advanced administration and configuration information, System Administrators should refer to the Aastra Models 9000i and 6700i Series SIP IP Phones Administrator Guide.
  • Page 10: Getting Started

    Getting Started The 6757i must be set up and be configured prior to its first use. This section describes phone behavior and start up screens you may see when the phone is first plugged in, or when it is restarted.
  • Page 11 Getting Started The 6757i phone then checks settings and looks for new configuration and firmware updates for the phone from a server. If a new update is found, the phone displays the message “Updating Configuration”. This may take a few moments while the phone downloads the latest updates.
  • Page 12: Network Connected/Network Disconnected

    Getting Started When the configuration update is complete, the phone displays the following screens and then displays the Idle screen. Network Done Services Icom Callers John Smith Sat Jan 1 12:18am Idle Screen Network Connected/Network Disconnected If your phone is successful when connecting to the network the following screen displays before changing to the Idle screen.
  • Page 13: Idle Screen

    "Network Connected" prompt for a few seconds. However, if changes have been made to your phone’s network settings, you may need to restart your phone. For more information about connecting your phone, see the Aastra 6757i IP Phone Installation Guide, the section "Con- necting to the Network and to Power".
  • Page 14 Getting Started By default, the top softkeys 1 through 4 are configured for Services, Directory, Callers List, and Intercom, respectively. You can configure the 6 top keys with up to 10 functions, and the 6 bottom softkeys with up to 20 functions as required. Services Intercom Directory...
  • Page 15 Getting Started You can configure up to 10 functions on the top set of softkeys. If you have additional functions configured on the top softkeys that do not display on the main idle screen, a "More" displays at the top right of the screen. Pressing the More softkey toggles between the first screen and a second screen of softkeys configured on your phone.
  • Page 16 Getting Started A More softkey also displays at the bottom right of the screen if you have configured softkeys other than the default softkeys. For example, if you configure a bottom softkey for speed dialing to Home, and then you pickup the handset, the screen displays the Dial, Conf, and Xfer default softkeys with a More softkey.
  • Page 17: Ip Phone Keys

    Key Panel The following sections describe the various 6757i phone key functions on both the symbol and text hardware platforms, and how they help you make and manage your calls and caller information. Images of the symbol keys and the symbol hardware platform are used throughout this document.
  • Page 18: Key Descriptions

    IP Phone Keys Key Descriptions The following table identifies the keys on the key panel of your 6757i IP phone that you can use for handling calls. Text Keys Symbol Keys Key Description* Goodbye Key - Ends an active call. The Goodbye key also exits an open list, such as the Options List, without saving changes.
  • Page 19 For more information about programming the softkeys to perform specific functions, see the Aastra Model 6757i IP Phone User Guide. *See the Aastra 6757i IP Phone User Guide for more information about each of these keys. 41-001385-00 Rev 01 – 06.2013...
  • Page 20: Keypad Keys

    IP Phone Keys Keypad Keys The 6757i has a keypad with digits from 0 through 9, a “*” key, and a “#” key. Keys 2 through 9 contain the letters of the alphabet. The 6757i phone keypad includes the following:...
  • Page 21: Methods For Customizing Your Phone

    Using the Options key on the IP Phone • Using the Aastra Web UI in an Internet browser window from your PC. Phone Options via the IP Phone UI You can customize your phone by pressing the Options key and accessing the IP Phone UI.
  • Page 22 Methods for Customizing Your Phone Note: *The "Administrator Menu" options are Administrator level functions only, and are not accessible by the user. These options should only be set up and changed by your System Administrator. Simplified Options Menu Your System Administrator may configure a simplified options menu for your phone. The following table indicates the options that may appear on your phone if the simplified options menu is applied.
  • Page 23: Phone Options Via The Aastra Web Ui

    In addition to the IP Phone UI options, you can also customize additional options on the IP Phone using the Aastra Web UI. In order to access your phone using the Aastra Web UI, you need to know your phone’s IP address. To find your phone’s IP address, see “Finding Your Phone’s IP Address”...
  • Page 24 Methods for Customizing Your Phone The Network Status window displays for the IP phone you are accessing. You can logout of the Aastra Web UI at any time by clicking Log Off. 41-001385-00 Rev 01 – 06.2013...
  • Page 25 Expansion Modules - Allows you to configure an additional 36 softkeys with a M670i Expansion Module, or an additional 60 softkeys with a M675i Expansion Module if an it is attached to the phone. This option displays on the side menu of the Aastra Web UI only if an Expansion Module is attached.
  • Page 26 Ring Tones (global and per-line basis) • Time and Date Settings • Language Settings Account Configuration - Allows you to configure “Do Not Disturb” (DND) and “Call Forwarding” (CFWD) by account. You can have multiple accounts on the 6757i. 41-001385-00 Rev 01 – 06.2013...
  • Page 27: Phone Status

    Phone Status You can view the status of your phone using the IP Phone UI or the Aastra Web UI. Phone Status via IP Phone UI The "Phone Status" option on the IP phone displays the status of your phone to the LCD display.
  • Page 28: Finding Your Phone's Ip Address

    If you want to access your phone’s options using an Internet browser, you need to enter the IP address of the phone in the browser to open the Aastra Web UI. Use the following procedure to find your phone’s IP address.
  • Page 29: Phone Status Via The Aastra Web Ui

    This Status window is view only. It displays the status of your phone which includes the following: • Network Status • Hardware Information • Firmware Information • SIP Status SIP Account Status The IP Phones show the SIP registration status on the IP Phone’s Status screen in the Aastra Web UI. 41-001385-00 Rev 01 – 06.2013...
  • Page 30 Phone Status The following table describes the status conditions that can display for the account. Status Condition Description Registered Displays this status on accounts that HAVE been registered with the SIP proxy server. Example: Backup Registrar Line SIP Account Status Used? 650@proxy.com:5060 Registered...
  • Page 31: Customizing Your Phone

    Customizing Your Phone The following paragraphs describe the options available from either the IP Phone UI, the Aastra Web UI, or both, and pro- vide procedures applicable to the option. Ring Tones and Tone Sets You can configure ring tones and ring tone sets on the IP phone.
  • Page 32 • ring cadence pattern You configure global ring tones and tone sets using the Aastra Web UI and the IP Phone UI. Configuring Ring Tones and Tone Sets IP Phone UI Use the following procedures to configure ring tones and tone sets on the IP phone.
  • Page 33 UK, and US. Default is US. Press Done. The ring tone and tone set you select is immediately applied to the IP phone. Aastra Web UI Click on Basic Settings->Preferences->Ring Tones. For global configuration: In the "Ring Tones" section, select a country from the "Tone Set" field.
  • Page 34: Contrast Level

    Customizing Your Phone Contrast Level The "Contrast Level" option on the IP phone allows you to set the amount of light that illuminates the LCD display. Use this option to set the preference of contrast level. You can set the contrast level using the IP Phone UI only. Setting Contrast Level IP Phone UI Press...
  • Page 35: Backlight

    Customizing Your Phone Backlight The "Backlight" option on the IP phone allows you to set the backlight status on the LCD display to the following: • Off - Backlight is always OFF. • Auto (Default)- Automatically turns ON the backlight when the phone is in use, and then automatically turns OFF the backlight when the phone is idle after a specified length of time.
  • Page 36 Customizing Your Phone If you selected "Auto", press the Advanced softkey. Backlight Auto Advanced - Cancel - Done - Using the keypad, enter the amount of seconds you want the phone to stay backlit when the phone is idle. Valid values are 1 to 120 seconds (2 minutes).
  • Page 37: Live Dialpad

    Live Dialpad* The "Live Dialpad" option on the IP phone turns the Live Dial Pad mode ON or OFF. With live dial pad ON, the 6757i IP phone automatically dials out and turns ON Handsfree mode as soon as a dial pad key or softkey is pressed. With live dial...
  • Page 38: Set Audio

    Phone UI only. Audio Mode The 6757i allows you to use a handset, a headset, or handsfree mode to handle incoming and outgoing calls. The audio mode option provides different combinations of these three methods to provide maximum flexibility in handling calls.
  • Page 39 Customizing Your Phone Select Audio Mode. Set Audio 1. Audio Mode 2. Headset Mic Volume 3. DHSG - Select Done - Select the audio mode you want to use on your phone. Default is Speaker. Valid values are: • Speaker (Default) •...
  • Page 40 Customizing Your Phone 10.Select DHSG. Set Audio 1. Audio Mode 2. Headset Mic Volume 3. DHSG - Select Done - 11.Select the DHSG is OFF or DHSG is ON option. Default is DHSG is OFF. DHSG DHSG is OFF DHSG is ON Cancel - Done - 12.Press Done to save your selection.
  • Page 41: Time And Date

    • Time Servers Note: Only the Time and Date Formats and Time Servers can be set using the Aastra Web UI Configuring Time and Date Use the following procedures to configure the time and date settings on the IP phone.
  • Page 42 Customizing Your Phone Using the keys on the keypad, enter a time to set on the IP phone. Use the "Backspace" key to move back a space and delete a character. Use the "AM/PM" softkey to specify either AM or PM for the time setting.
  • Page 43 Customizing Your Phone Using the keys on the keypad, enter a date to set on the IP phone. Use the "Backspace" key to move back a space and delete a character. Set Date Enter Date (y-m-d): 2000-01-02 - Backspace Cancel - Enter - Press Enter to save the setting.
  • Page 44 Customizing Your Phone Set Time Zone Select Preferences. Select Time and Date. Select Time Zone. Time and Date 1. Time Format 2. Daylight Savings 3. Date Format 4. Time Zone 5. Time Server 1 6. Time Server 2 7. Time Server 3 8.
  • Page 45 Customizing Your Phone Daylight Savings Time Select Preferences. Select Daylight Savings. Time and Date 1. Time Format 2. Daylight Savings 3. Date Format 4. Time Zone 5. Time Server 1 6. Time Server 2 7. Time Server 3 8. Set Time 9.
  • Page 46 Customizing Your Phone Set Time Servers With a valid time server enabled your IP phone will synchronize the time displayed with the specified configuration server. The phone will use the time from Time Server 1 unless it is not configured or unavailable, in which case it will move on to Time Server 2, and if necessary Time Server 3 Select Preferences.
  • Page 47 Customizing Your Phone Aastra Web UI Click on Basic Settings->Preferences->Time and Date Setting. In the “Time Format” field, select the time format you want to use on your phone. Valid values are: • 12h (12 hour format) (default) • 24h (24 hour format) Note: The time and time format you configure display on the phone’s idle screen.
  • Page 48 Language The IP phones support several different languages. You can have the IP Phone UI and the Aastra Web UI display in a spe- cific language as required. When you set the language to use, all of the display screens (menus, services, options, config- uration parameters, etc.) display in that language.
  • Page 49 IP phone by your System Administrator. English is the default language and cannot be changed or removed. Click Save Settings.. The change is dynamic. The Aastra Web UI displays all screens in the language you selected. 41-001385-00 Rev 01 – 06.2013...
  • Page 50 Russian, and Nordic). Inputting textual or character information into the IP Phone UI can be done using the keypad on the phone. You enable the Language Input feature using the Aastra Web UI or the IP Phone UI. You can then use text and characters in a specific language when performing inputs on the phone.
  • Page 51 Customizing Your Phone Spanish Uppercase Characters Lowercase Characters 1.:;=_,-'&() 1.:;=_,-'&() ABC2ÁÀÇ abc2áàç DEF3ÉÈ def3éè GHI4ÏÍ ghi4ïí JKL5 jkl5 MNO6ÑÓÒ mno6ñóò PQRS7 pqrs7 TUV8ÚÜ tuv8úü WXYZ9 wxyz9 * <SPACE> * <SPACE> #/\@ #/\@ German Uppercase Characters Lowercase Characters 1.:;=_,-'&() 1.:;=_,-'&() ABC2ÄÀ abc2äà...
  • Page 52 Customizing Your Phone Portuguese Uppercase Characters Lowercase Characters 1.:;=_,-'&() 1.:;=_,-'&() ABC2ÁÀÂÃÇ abc2áàâãç DEF3ÉÊ def3éê GHI4Í ghi4í JKL5 jkl5 MNO6ÓÔÕ mno6óôõ PQRS7 pqrs7 TUV8ÚÜ tuv8úü WXYZ9 wxyz9 * <SPACE> * <SPACE> #/\@ #/\@ Russian Uppercase Characters Lowercase Characters 1.:;=_,-'&() 1.:;=_,-'&() АБВГ2ABC aбвг2abc ДЕЁЖЭ3DEF Дeëжз3def...
  • Page 53 You can configure the language you use for inputting on the phone by setting the Input Language option. The default input language setting is English. You can change this setting using the IP Phone UI or the Aastra Web UI.
  • Page 54 All languages may not be available for selection. The available input languages are dependant on the configuration enabled by your System Administrator. Click Save Settings. The change is dynamic. The Aastra Web UI and IP Phone UI allow you to enter text and characters in the language you selected.
  • Page 55: User Password

    If you change the password Then you need to using the IP Phone UI, use that new password to log into the Aastra Web UI. using the Aastra Web UI, use that new password when changing the user password via the IP Phone UI.
  • Page 56: Resetting A User Password

    If you forget your password, you can reset it and enter a new password. The reset user password feature resets the pass- word to the factory default which is blank (no password). You can reset a user password using the Aastra Web UI only. Note: Valid values when creating or changing a password are 0 to 4294967295 (integers only;...
  • Page 57: Restarting Your Phone

    116. In the Aastra Web UI, the Operation->Phone Lock path also allows you to perform the following: • Reset a user password. Clicking on the “Reset” key in the “Reset User Password” field displays a screen that allows you to enter and save a new user password.
  • Page 58 Options List. At the prompt, "To unlock the phone", enter your user password and press Enter. The phone unlocks Aastra Web UI Click on Operation->Phone Lock. Lock the Phone In the "Lock the Phone?" field, click Lock.
  • Page 59: Defining An Emergency Dial Plan

    A police and/or fire emergency number in Asia, Europe, Middle East, and South America. You can set the emergency dial plan using the Aastra Web UI. Define an Emergency Dial Plan Use the following procedure to specify the numbers to use on your phone for dialing emergency services in your area.
  • Page 60: Line Keys And Softkeys

    Keys Multiple Line and Call Appearances The 6757i has 4 hard line/call appearance keys each with a corresponding status light. These line/call appearance keys and lights can represent physical lines, calls for your extension or calls from a group that your extension is part of.
  • Page 61: Softkeys

    If a M670i or M675i Expansion Module(s) is attached to the phone, you can configure up to an additional 36 softkeys on each M670i Expansion Module and up to 60 softkeys on each M675i Expansion Module. (The 6757i IP Phone allows up to 3 expansion modules on each phone).
  • Page 62 Description Flash Indicates the key is set to generate a flash event when it is pressed on the 6757i. The IP phone generates flash events only when a call is connected and there is an active RTP stream (for example, when the call is not on hold).
  • Page 63: State-Based Softkeys (Bottom Keys Only)

    Line Keys and Softkeys State-Based Softkeys (Bottom Keys only) On the 6757i bottom softkeys, you can configure a specific state to display when a softkey is being used. None None None None None None Softkeys (state-based) The following table describes the states available to configure for the softkeys.
  • Page 64 Key Display Behavior On the 6757i IP Phone, you can configure up to 20 functions on the bottom softkeys. If you have no softkeys configured on the IP Phone, and you assign softkey functions to higher number keys in the Aastra Web UI, the key functions auto- matically appear in the first available position on the LCD display.
  • Page 65 Line Keys and Softkeys The following illustrations show the configuration of Key 12 and how that key displays on the phone. John Smith Key 12 displays in Sat Jan 1 12:18am softkey position 1 on the phone - LAB 41-001385-00 Rev 01 – 06.2013...
  • Page 66: Line Key

    Line Key You can set a softkey to act as a line/call appearance key on the 6757i. The This key acts as a line that behaves the same as a hard line key (L1, L2, L3, and L4). For more information about the behavior of line keys, see “Multiple Line and Call...
  • Page 67 Configuring a Line Key You can set a key as an additional line on the 6757i. The key acts as a line that behaves the same as a hard line key. For more information about the behavior of line keys, see “Multiple Line and Call Appearances”...
  • Page 68: Speed Dial Key

    The normal function of the speed dial option allows you to dial a number quickly by pressing a key configured for speed dialing. You can program the keys on the 6757i to speed dial outside numbers, dial directly to another person’s line or extension, or set up to quickly access features such as Caller ID (*69), Voicemail.
  • Page 69 Line Keys and Softkeys Press-and-Hold to Create a Speed Dial (applicable to softkeys, keypad keys, expansion module keys) IP Phone UI Pressing and holding down a softkey, keypad key, or expansion module key on the phone initiates a speed dial feature. Note: When creating a speed dial key from the IP Phone UI, you must select a softkey, keypad key, or expansion module key that has no preassigned function (key must be set to None.)
  • Page 70 Line Keys and Softkeys In the "Line:" field, select a line to apply to the speed dial key. Enter Name: John Smith Enter Number: 555-6789 Line: 1 - Save - Backspace Change - Cancel - - 123 This is the line that the phone opens to dial the number after you press the speed dial key. By default, the phone uses Line 1 for the speed dial key.
  • Page 71 Line Keys and Softkeys In the "Enter Name:" field, enter a name to apply to the speed dial key. Use the keypad keys to enter the name. Continue to press the keypad keys to access the next letter for that key (i.e. press 2 three times to access C).
  • Page 72 Line Keys and Softkeys Creating a Speed Dial Key Using the Softkeys or Expansion Module Keys Aastra Web UI Use the following procedure to set a key to function as a speed dial. The procedure shows the softkey screens as an example.
  • Page 73 Line Keys and Softkeys Creating Speed Dial Key Using “Keypad Speed Dial” in the Aastra Web UI Aastra Web UI Click on Operation->Keypad Speed Dial. Select from "Key 1" through "Key 9". In the input box, enter the phone number, extension, or speed dial prefix to apply to this Digit key. If you enter a speed dial prefix, you must enter the "+"...
  • Page 74: Editing Speed Dial Keys

    Operation->Expansion Module Keys • Using the IP Phone UI at the path: – Options->Preferences->Speed Dial Edit The following illustration shows the path in the 6757i IP Phone UI for editing a speed dial key. Preferences Enter Name: 1. Tones John Smith 2.
  • Page 75 Line Keys and Softkeys Editing a Speed Dial on a Softkey or Expansion Module Key Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Select the key configured for speed dial. In the "Value" field, edit the phone number, extension, or speed dial prefix to apply to this hard key. If you enter a speed dial prefix, you must enter the "+"...
  • Page 76: Do Not Disturb" (Dnd) Key

    If the phone shares a line with other phones, only the phone that has DND configured is affected. You can set DND on the keys using the Aastra Web UI only. DND is not configurable from the IP phone UI.
  • Page 77 Line Keys and Softkeys Configuring a DND Key Aastra Web UI Use the following procedure to set a key to function as "Do Not Disturb". The procedure shows the softkey screens as an example. Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>.
  • Page 78: Busy Lamp Field (Blf) Key

    On the 6757i, the busy and idle indicators show on the IP phone screen display next to the key programmed for BLF functionality. When the monitored user is idle, an icon with the handset on-hook shows next to the BLF key. When the monitored user is on an active call, a small telephone icon is shown with the handset off-hook.
  • Page 79: Blf/List Key

    A receptionist has a 6757i running Broadsoft firmware that subscribes to a list of extensions from the BroadWorks Applica- tion Server. On the 6757i, the key LEDs illuminate either flashing, solid, or turn off depending on the state of those exten- sions.
  • Page 80 Configuring a BLF/List Key The BLF List function can be configured on the 6757i using the Aastra Web UI only. If you set a key to use BLF/List, you must also enter a BLF List URI at Operation->Softkeys and XML->Services. The BLF List URI is the name of the BLF list defined on the BroadSoft BroadWorks Busy Lamp field page for your particular user.
  • Page 81: Automatic Call Distribution (Acd) Key

    Automatic Call Distribution (ACD) Key (for Sylantro Servers) The 6757i and any attached Expansion Modules support Automatic Call Distribution (ACD) for Sylantro servers. The ACD feature allows the Sylantro server to distribute calls from a queue to registered IP phone users (agents).
  • Page 82 It is recommended you configure no more than a single ACD softkey or expansion module key per IP phone. Configuring an Automatic Call Distribution (ACD) Key Aastra Web UI Use the following procedure to configure ACD on the 6757i IP Phone. The procedure shows the softkey screens as an example. Click on Operation->Softkeys and XML.
  • Page 83 The table below shows the status of the LED as they may appear on your IP phone. Status: Logged In and Phone Model Status: Unavailable Logged Out Available 6757i Solid Red LED Blinking Red LED No LED icon Blinking...
  • Page 84 Line Keys and Softkeys Check with your Administrator to verify the queue linked to your ACD Key. Press the ACD Key on your IP phone. The LCD displays the label of the ACD queue you are accessing. Services Icom Callers Mon Jan 2 10:37am Support The "User ID"...
  • Page 85 Line Keys and Softkeys To allow your phone to be available in the queue, press the Available softkey. The following screen displays. Services Icom Callers ACD: Support Unavailable Log Out If your IP phone status is set to “Available” then the server begins to distribute phone calls from this queue to your IP phone.
  • Page 86: Directed Call Pickup/Group Call Pickup Keys

    The DCP/GCP feature allows you to intercept - or pickup - a call on a monitored extension. You can configure this feature using the Aastra Web UI to create a DCP or GCP softkey on the IP phone. When you configure a DCP softkey, you specify the extension that you want to monitor.
  • Page 87 Click Save Settings. Configuring Group Call Pickup (GCP) Key Aastra Web UI Use the following procedure to configure Group Call Pickup on the 6757i IP Phone. The procedure shows the softkey screens as an example. Note: A ring group must be configured on the server in order for a GCP key to function.
  • Page 88 Line Keys and Softkeys Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys. In the “Type” field, select Directed Call Pickup. In the "Label"...
  • Page 89 Line Keys and Softkeys Using Directed Call Pickup/Group Call Pickup Use the following procedure for the DCP/GCP feature on your phone. IP Phone UI Note: Before using the DCP/GCP feature on your phone, you must first configure the DCP or GCP Key. You must identify the extension(s) or phone number(s) you want to monitor when configuring the key.
  • Page 90: Xml Key

    XML Key The 6757i IP phone has a feature you can enable called "XML" (Extensible Markup Language). XML is a markup language much like HTML. Your System Administrator can create customized XML menu services and load them to your IP phone.
  • Page 91 Line Keys and Softkeys Configuring XML Services Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys.
  • Page 92 Click Save Settings. Configuring an XML Key Aastra Web UI Use the following procedure to configure an XML key on the 6757i IP Phone. The procedure shows the softkey screen as an example. Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>.
  • Page 93 Line Keys and Softkeys In the "Type" field, select "XML". In the "Label" field, enter a label to apply to this key. In the "Value" field, enter a URI(s) to apply to this key. Note: Contact your System Administrator for the appropriate value(s) to enter in the "Value" field. (Bottom Softkeys) In the state fields, check (enable) or uncheck (disable) the states you want to apply to this softkey.
  • Page 94 To exit from the "Services" menu, press the Services key again. From an XML Key Press the XML key on the 6757i phone. A "Custom Features" screen displays or the title you specified. Use the 5 and 2 to scroll through the customized features.
  • Page 95: Flash Key

    Flash Key You can set a key to generate a flash event when it is pressed on the 6757i. You do this by setting the key to "flash". The IP phone generates flash events only when a call is connected and there is an active RTP stream (for example, when the call is not on hold).
  • Page 96: Sprecode Key

    System Administrator for information about available services. Configuring a Sprecode Key Aastra Web UI Use the following procedure to configure a Sprecode key on the 6757i IP Phone. The procedure shows the softkey screen as an example. Click on Operation->Softkeys and XML.
  • Page 97: Park/Pickup Keys

    Park/Pickup Keys The 6757i phone has a park and pickup call feature that allows you to park a call and pickup a call when required. The IP phones support the Park/Pickup feature on the Asterisk, BroadWorks, Sylantro, and ININ servers.
  • Page 98 Line Keys and Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys. In the "Type" field, select Pickup In the "Label" field, enter a label for the pickup softkey. Click Save Settings.
  • Page 99 Line Keys and Softkeys Using the Park Call/Pickup Parked Call Feature Use the following procedure on the IP phone to park a call and pick up a parked call. Park a Call While on a live call, press the "Park" key. Perform the following for your specific server: For Asterisk Server Server announces the extension number where the call has been...
  • Page 100: Last Call Return (Lcr) Key (Sylantro Servers Only)

    Line Keys and Softkeys Last Call Return (lcr) Key (Sylantro Servers only) Using the Aastra Web UI, you can configure the "Last call return" (lcr) function on a key. This feature is for Sylantro servers only. How it works If you configure "lcr" on a key, and a call comes into your phone, after you are finished with the call and hang up, you can press the key configured for “lcr”...
  • Page 101: Call Forward Key

    Call Forward Key Using the Aastra Web UI, you can configure the Call Forward (CFWD) function on a softkey or expansion module key. Use call forwarding when you want a specific account on your phone to be forwarded to another number when your phone is in the busy state or the no answer state, or both.
  • Page 102: Blf/Xfer

    Line Keys and Softkeys Expansion Module Keys Select from “Key 1” through “Key 36” (M670i) Select from “Key 1” through “Key 60” (M675i) In the "Type" field, select Call Forward. Click Save Settings. BLF/Xfer The BLF key allows one or more extensions to be monitored, and once there is any state change with those extensions, the key shows the status of the monitored lines.
  • Page 103 Line Keys and Softkeys Configuring a BLF/Xfer Key Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys.
  • Page 104: Speeddial/Xfer

    Line Keys and Softkeys In the “Line” field, select the line for which you want to use the key functionality. Valid values are: • global • 1 through 9 Click Save Settings. Speeddial/Xfer The speed dial key allows a number to be dialed quickly by pressing one key configured for speed dialing. The Xfer key allows a call to be transferred to other recipients blindly or consultatively.
  • Page 105 Line Keys and Softkeys Configuring a Speeddial/Xfer Key Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys.
  • Page 106: Speeddial/Conf

    Speeddial/Conf The 6757i allows you to configure a softkey or expansion module key to be used as a speed dial conference key (Speed- dial/Conf key) while remaining in the current call. This key allows a user on a call to conference another party at a pre- defined number while remaining in the call.
  • Page 107 Line Keys and Softkeys Configuring a Speeddial/Conf Key Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys.
  • Page 108: Services Key

    1 through 9 Click Save Settings. Services Key By default, the 6757i has a Services key configured on key 1 of the Top keys. However, you can use any key to configure a "Services" key. Services The Services key accesses enhanced features and services provided by third parties. Using the "Services" key, you can: •...
  • Page 109 Line Keys and Softkeys Configuring a Services Key Aastra Web UI Use the following procedure to configure a Services key on the 6757i IP Phone. The procedure shows the top softkeys screen as an example. Note: By default, the Services key is Key 1 on the Top Softkeys.
  • Page 110: Directory Key

    Directory Key By default, the 6757i has a Directory key configured on key 2 of the top set of keys. However, using the Aastra Web UI, you can assign the Directory key to any key on the top or bottom keys on the phone. Pressing the Directory key displays the “Directory List”.
  • Page 111 Line Keys and Softkeys Configuring a Directory Key Aastra Web UI Use the following procedure to configure a Directory key on the 6757i IP Phone. The procedure shows the top softkeys screen as an example. Note: By default, the Directory key is Key 2 on the Top Softkeys.
  • Page 112: Callers List Key

    Callers List Key By default, the 6757i has a Callers List key configured on key 3 of the top set of keys. However, using the Aastra Web UI, you can assign the Callers List key to any key on the top or bottom keys on the phone. Pressing the Callers List key dis- plays the “Callers List”.
  • Page 113 Line Keys and Softkeys Configuring a Callers List Key Aastra Web UI Use the following procedure to configure a Callers List key on the 6757i IP Phone. The procedure shows the top softkeys screen as an example. Note: By default, the Callers List key is Key 3 on the Top Softkeys.
  • Page 114: Intercom Key

    Intercom Key By default, the 6757i has an Intercom key configured on key 4 of the top set of keys. However, using the Aastra Web UI, you can assign the Intercom key to any key on the top or bottom keys on the phone.
  • Page 115 Line Keys and Softkeys Configuring an Intercom Key Aastra Web UI Use the following procedure to configure a Callers List key on the 6757i IP Phone. The procedure shows the top softkeys screen as an example. Note: By default, the Intercom key is Key 4 on the Top Softkeys.
  • Page 116: Phone Lock Key

    You can configure a key on the IP Phone to use as a lock/unlock key. You assign the function of the key as “Phone Lock”. Configuring a Phone Lock Key Aastra Web UI Use the following procedure to configure a Phone Lock key on the 6757i IP Phone. The procedure shows the softkey screen as an example. Click on Operation->Softkeys and XML.
  • Page 117: Paging Key (Sends The Rtp Stream)

    Line Keys and Softkeys Using the Lock/Unlock Key on the IP Phone After configuring a key as a lock/unlock key, refer to the following procedure to use the key on the IP phone. Lock the Phone Press the LOCK key. The phone locks.
  • Page 118 Line Keys and Softkeys Configuring a Paging Key Aastra Web UI Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1” through “Key 10” on the Top keys. Select from "Key 1" through "Key 20" on the Bottom keys.
  • Page 119 Click Save Settings. Using the Paging Key The following procedure describes the use of the Paging key on the IP Phone. The procedure assumes you have already configured the Paging key using the Aastra Web UI. IP Phone UI Notes: 1.
  • Page 120: None Key

    Configuring a None Key Aastra Web UI Use the following procedure to configure a None key on the 6757i IP Phone. The procedure shows the softkey screen as an example. Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>.
  • Page 121: Empty Key

    "empty". The keys are added in order (from key 1 to key 20) after any hard-coded keys have been added. If a particular key is not defined, it is ignored. Configuring an Empty Key Aastra Web UI Use the following procedure to configure an Empty softkey on the 6757i phone. Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>. Softkeys Select from “Key 1”...
  • Page 122: Deleting A Key

    Line Keys and Softkeys Deleting a Key Aastra Web UI Use the following procedure to delete a key on the 6757i IP Phone. The procedure shows the softkey screen as an exam- ple. Click on Operation->Softkeys and XML. Click on Operation->Expansion Module <N>.
  • Page 123: Making Calls

    Making Calls This section describes ways to make calls on your 6757i phone, using your handset, speakerphone or headset. Dialing a Number First, take the phone off-hook by: • lifting the handset • pressing • pressing a line/call appearance key...
  • Page 124: Using Handsfree Speakerphone

    When handsfree is on, the speaker light turns on. Using a Headset The 6757i accepts headsets through the modular RJ22 jack on the back of the phone. Contact your telephone equip- ment retailer or distributor to purchase a compatible headset.
  • Page 125: Using Intercom

    Using Intercom On the 6757i, you can use the Icom key to automatically connect with a remote extension. By default, the Intercom key is configured as Key 4 on the top set of softkeys. Intercom...
  • Page 126: Redial

    When you hang up, the remote phone also hangs up. You can set specific incoming Intercom call features on the 6757i IP phone using the Aastra Web UI. The following table describes these features.
  • Page 127: Mute

    Making Calls Accessing the Redial List IP Phone UI If you are off-hook and press , the telephone automatically dials the last number you called. If you are not on the phone, press to display the most recently dialed number and use 2 and 5 to scroll through the list to view the other numbers.
  • Page 128: Receiving Calls

    Receiving Calls When a call is ringing at your extension, the inbound callers extension and name display to the screen. The line/call appearance light flashes quickly for the incoming call. John Smith Tue May 17 10:19am L1 Ring Keri March Answering an Incoming Call IP Phone UI To answer the call...
  • Page 129: Handling Calls

    Handling Calls When you are connected to a call, you can use the softkeys or hard keys on the phone to place a call on hold, transfer a call, or conference. Placing a Call on Hold You can place an active call on hold by pressing the Hold key.
  • Page 130: Transferring Calls

    Handling Calls Automatic Hold When juggling between calls, you do not have to press the hold key to go from one call to the next. The phone automat- ically puts your current call on hold as soon as you press a new line/call appearance key. If you have more than one call on hold, you can reconnect to a held call by pressing the line/call appearance key where that call is being held.
  • Page 131 Handling Calls Transferring Calls in Pre-Dial Mode Use the following procedure to transfer a call to another extension in pre-dial mode. Use the following illustration as a ref- erence. Transfer Key when handset is lifted Connect to Party 1 (if not already connected). Party 1 is the party you want to transfer. Press the Xfer key.
  • Page 132 Transferring Two Existing Calls The 6757i allows you to perform a transfer of a call when there are currently two active calls on the phone. For example, on your phone, there are two active calls - Call A and Call B. Call B is on hold. You can perform the following to transfer Call A to Call B: Press Xfer key.
  • Page 133: Conferencing Calls

    More Screen that displays when handset is lifted Local Conferencing The 6757i phone supports up to 3 parties (including yourself) in a conference call. This is called Local Conferencing and is the default method of conferencing on the 6757i. Note: Your System Administrator can set your Conference key to speed dial a specific number.
  • Page 134 Handling Calls Pre-Dial & Live Dial Mode By default, when users are initiating a conference call or transfer, they will not hear a dial tone before dialing begins (pre- dial mode). The phone does not automatically dial out the number until the user presses the “Conference” key. This allows the users to make changes to the dialing number before initiating the call.
  • Page 135 Handling Calls Press the Conf key again to add Party 3 to the conference. Party 1 (which is yourself ), Party 2, and Party 3 are all connected to a single conference. To drop a party from the conference, use the navigation key to select the party and press the Drop key. Using Local Conferencing in Live Dial Mode Use the following procedure to create a conference call using local conferencing in live dial mode.
  • Page 136 Centralized Conferencing (for Sylantro and Broadsoft Servers) The 6757i allows you to create multiple conferences with unlimited participants (depending on your server limitations) when your Administrator enables Centralized Conferencing. If your Administrator does not enable Centralized Conferencing, then the 6757i uses Local Conferencing by default.
  • Page 137 Setting Up Multiple Conferences (for Sylantro Server only) Note: The 6757i is limited to 9 conferences (a single conference each on lines 1 through 9). Start Conference 1 using the procedures in the previous section, “Setting Up a Conference and Adding Multiple Parties (for Sylantro and Broadsoft Servers)”...
  • Page 138: Ending Calls

    Press the Conf Key again to join the Parties to the active conference. Ending a Conference and Transferring Remaining Parties The 6757i allows a Host to drop from a 3-way conference and let the other two parties remain connected by pressing a Transfer key.
  • Page 139: Managing Calls

    Managing Calls The 6757i has several features that make it easier to manage calls, and to keep track of your caller history, as well as your business and personal contacts. These features include: • Directory List • Callers List •...
  • Page 140 Managing Calls 2 and 5 You can access entries by pressing to scroll through the list. To search for an entry by name, press the dial pad number corresponding to the first letter of the name (for example, press 7 for the letter P). Continue to press the dial pad number to access other letters on the same key (for example, 2 and 5 press 7 three times for ‘Ron’).
  • Page 141 Managing Calls Save Public Backspace Label Cancel Screen 2 Adding Names, Numbers, Labels IP Phone UI On Screen 1: • You can add names using the abc softkey. • You can add numbers (up to 7 numbers per name) using the numbers on the phone’s keypad. •...
  • Page 142 Managing Calls The following example shows the same Directory entry without a label. Steve Smith 905-760-9999 Line: 1 | Delete Dial Change Add Number LIst • You can use the Dial softkey to automatically dial the number in the Directory entry. •...
  • Page 143 Managing Calls Cell 783-444-5555 Line: 1 | Delete Dial Arrange Change Add Number List Arranging Multiple Screens You can use the Arrange softkey to move the number/label/line forward or backward between screens for the specified name. If there is a label assigned to the entry, the following screen displays after pressing the Arrange softkey. Office Home Cell...
  • Page 144 Managing Calls Deleting Entries from the Directory List You can delete entries from the Directory List in the following ways: • Delete a single name or number and all associated numbers and labels. • Delete specific numbers and labels from a single entry •...
  • Page 145 Managing Calls To delete all entries from the Directory List: Press the Directory key. Directory 97 items to view Press 1st letter DeleteList - - Add New Quit - At the “Directory List” top screen, press DeleteList. Saving Entries to the Directory List You can save entries (names and numbers) from other sources to your Directory using the following methods: •...
  • Page 146 Press Copy. The entry is saved in the Directory List. Downloading the Directory List to Your PC You can download the Directory List to your PC via the Aastra Web UI. The phone stores the directorylist.csv file to your PC in comma-separated value (CSV) format.
  • Page 147 Managing Calls Download the Directory List Use the following procedure to download the Directory List to your PC using the Aastra Web UI Aastra Web UI Click on Operation->Directory. In the Directory List field, click on Save As. A File Download message displays.
  • Page 148: Callers List

    Callers List The Callers list is a stored log of your incoming calls. The 6757i telephone stores information on up to 200 incoming calls in the Callers list. Your telephone logs the number and name (if available) of the caller, when they last called, and the number of times they tried to reach you.
  • Page 149 Managing Calls Access the Callers List IP Phone UI Use the following procedure to access the Callers List. Use the following illustration as a reference. Callers List Key Handsfree Press the Callers List key. Use the 2 and 5 keys to scroll through the line items in the Callers List. Note: To the left of a line item, a b icon displays with the handset ON or OFF the receiver.
  • Page 150 Managing Calls IP Phone UI Use the following procedure to edit the Callers List. Use the following illustration as a reference. Callers List Handsfree Press the Callers List Key. Press 2 and 5 to find the entry you want to edit. Press 2 to view the most recent call, or 5 to see the oldest call on your list.
  • Page 151 Download the Callers List to Your PC You can download the Callers List to your PC for viewing using the Aastra Web UI. When you download the Callers List, the phone stores the callerlist.csv file to your computer in comma-separated value (CSV) format.
  • Page 152: Account Configuration (Dnd And Call Forwarding)

    On the 6757i, you can set DND on the phone-side for a specific account or for all accounts on the phone. You can set three modes for DND using the Aastra Web UI at the path, Basic Settings->Preferences->General->DND Key Mode: Account, Phone (default), and Custom.
  • Page 153 DND key LED OFF when current account in focus has DND disabled. Note: If you make changes to the configuration for DND via the IP Phone UI, you must refresh the Aastra Web UI screen to see the changes. Configuring DND The following describes configuring DND on your phone.
  • Page 154 1. If there is only one account configured on the phone, then the mode setting is ignored and the phone behaves as if the mode was set to “Phone”. 2. Using the Aastra Web UI, if you change the DND Key Mode to “phone”, all accounts synchronize to the current setting of Account 1.
  • Page 155 2. If there is only one account configured on the phone, then the mode setting is ignored and the phone behaves as if the mode was set to “Phone”. 3 .Using the Aastra Web UI, if you change the DND key mode to “phone”, all accounts synchronize to the current setting of Account 1.
  • Page 156 Call Forward (CFWD) on the IP phone allows incoming calls to be forwarded to another destination. On the 6757i, you can set Call Forward (CFWD) on the phone-side for a specific account or for all accounts on the phone. You can set a CFWD mode using the Aastra Web UI at the path, Basic Settings->Preferences->General->Call Forward Key Mode: Account (default), Phone, and Custom.
  • Page 157 MWI LED OFF if CFWD All is disabled. Note: If you make changes to the configuration for CFWD via the IP Phone UI, you must refresh the Aastra Web UI screen to see the changes. 41-001385-00 Rev 01 – 06.2013...
  • Page 158 Configuring CFWD Using the Aastra Web UI Aastra Web UI Use the following procedure to configure CFWD using the Aastra Web UI. Note: (Optional) You can configure a Call Forward key on your phone to access the Call Forward menus if desired. If you do not configure a Call Forward key, you can still access the Call Forward menu from the IP Phone UI at the path, Options- >Call Forward.
  • Page 159 (All, Busy, and/or No Answer) for each account independently or all accounts. On the 6757i, you can set all accounts to All On, All Off, or copy the configuration for the account in focus to all other accounts using a CopytoAll softkey.
  • Page 160 Managing Calls Click on Basic Settings->Account Configuration. The illustration above shows 2 accounts configured on the phone. Accounts must be set up by your System Administrator. For each account, enable the CFWD state by placing a check mark in one or more of the following “State” fields: •...
  • Page 161 If you selected “Phone” mode, all accounts are set to the same CFWD configuration (All, Busy, and/or No Answer) as Account 1 on the phone. (In the Aastra Web UI, only Account 1 is enabled. All other accounts are grayed out but use the same configuration as Account 1.)
  • Page 162 Managing Calls CFWD in Account Mode Use the RIGHT and LEFT arrow keys to scroll through each account. Services Services Services Callers Callers Callers Screenname2 Screenname3 Screenname1 CFWD Busy CFWD All Tues Jan1 10:00am Tues Jan1 10:00am Tues Jan1 10:00am - Call Fwd - Call Fwd - Call Fwd...
  • Page 163 Managing Calls For the CFWD No Answer state, press the CHANGE key for the mode you selected in step 2. This displays the Call Forward State screen. In the following example, the CFWD All state is ON. Services Services Callers Callers Call Forward Call Forward...
  • Page 164 Managing Calls CFWD in Phone Mode Use the RIGHT and LEFT arrow keys to scroll through each account. Services Services Services Callers Callers Callers Screenname2 Screenname3 Screenname1 CFWD All CFWD All CFWD All Tues Jan1 10:00am Tues Jan1 10:00am Tues Jan1 10:00am - Call Fwd - Call Fwd - Call Fwd...
  • Page 165 Managing Calls In the CFWD No Answer state, press the CHANGE key for the mode you selected in step 2. This displays the Call Forward State screen. In the following example, the CFWD All state is ON. Services Services Callers Callers Call Forward Call Forward...
  • Page 166 Managing Calls CFWD in Custom Mode Use the RIGHT and LEFT arrow keys to scroll through each account. Services Services Services Callers Callers Callers Screenname2 Screenname3 Screenname1 CFWD Busy CFWD All Tues Jan1 10:00am Tues Jan1 10:00am Tues Jan1 10:00am - Call Fwd - Call Fwd - Call Fwd...
  • Page 167 Managing Calls Select a state for the selected account(s) using the UP and DOWN arrow keys You can enable/disable any or all of the following states for a specific account or for all accounts (with individual configurations): • All - Enables CFWD All for an account and forwards all incoming calls for that account, to the specified number. The phone number can be different between accounts.
  • Page 168 Managing Calls Press the CHANGE key for the mode you selected in step 4. This displays the Call Forward State screen. In the following example, the CFWD All state is ON. Services Services Callers Callers Call Forward Call Forward Mode NoAns Mode NoAns Change State:...
  • Page 169: Missed Calls Indicator

    Managing Calls Missed Calls Indicator The IP phone has a "missed calls" indicator that increments the number of missed calls to the phone. This feature is acces- sible from the IP phone UI only. The number of calls that have not been answered increment on the phone’s idle screen as "<number> New Calls". As the number of unanswered calls increment, the phone numbers associated with the calls are stored in the Callers List.
  • Page 170: Voicemail

    Managing Calls Voicemail The Voicemail feature on the 6757i IP phone allows you to use a line, configured with a phone number for dialing out, to connect to a voicemail server. For each assigned Voicemail number, there can be a minimum of 0 or a maximum of 1 Voicemail access phone number.
  • Page 171: Additional Features

    All of the main call handling and extension management features using star codes can be set on your phone by your Administrator. Contact your System Administrator for more information. If these have not been set up, you can dial any star code commands on the 6757i phone the same way you would on a reg- ular telephone.
  • Page 172: Display Dtmf Digits

    Display DTMF Digits A feature on the 6757i phone allows users to enable or disable DTMF (dual-tone multi-frequency) digits to display to the IP phone when using the keypad to dial, or when dialing from a softkey or expansion module key.
  • Page 173: Play Call Waiting Tone

    You can enable or disable the playing of a call waiting tone when a caller is on an active call and a new call comes into the phone. You can configure this feature using the Aastra Web UI. Configuring Call Waiting Tone Aastra Web UI Use the following procedures to configure a call waiting tone on the IP phone.
  • Page 174: Stuttered Dial Tone

    Stuttered Dial Tone You can enable or disable the playing of a stuttered dial tone when there is a message waiting on the IP phone. You can configure this feature using the Aastra Web UI. Configuring Stuttered Dial Tone Aastra Web UI Use the following procedures to configure stuttered dial tone on the IP phone.
  • Page 175: Xml Beep Support

    XML Beep Support Using the Aastra Web UI, you can enable or disable a beep to be audible when the phone receives an XML application using the "XML Beep Support" field at the path Basic Settings->Preferences->General. If you disable this feature, then no beep is heard when the XML application arrives to the phone.
  • Page 176: Status Scroll Delay

    Status Scroll Delay Using the Aastra Web UI, you can specify a scroll delay option that allows you to set the time delay, in seconds, between the scrolling of each status message on the phone. You can specify this setting in the "Status Scroll Delay (seconds)"...
  • Page 177: Switch Ui Focus To Ringing Line

    Switch UI Focus to Ringing Line You can configure a feature on the 6757i that controls the behavior of the phone when it receives an incoming call when it is already in a connected call. When a call comes into the phone, and the phone is already on a connected call, the phone switches focus to the ringing line to enable the user to see who is calling them.
  • Page 178: Call Hold Reminder During Active Calls

    When this feature is disabled, a ring splash is heard when the active call hangs up and there is still a call on hold. You can enable or disable this feature using the “Call Hold Reminder During Active Calls” in the Aastra Web UI.
  • Page 179: Call Hold Reminder (On Single Hold)

    (even when no other calls are active on the phone). When enabled, the phone initiates a reminder ring splash periodically for the single call on hold. When disabled, no reminder ring splash is audible. You can enable or disable this feature using the “Call Hold Reminder” parameter in the Aastra Web UI. Configuring “Call Hold Reminder”...
  • Page 180: Call Waiting Tone Period

    “Call Waiting Tone Period”. A value of “0” is the default and plays the call waiting tone only once on the active call. When the incoming caller hangs up, the call waiting tone stops on the existing active call. You can enable or disable this feature in the Aastra Web UI. Configuring “Call Waiting Tone Period”...
  • Page 181: Preferred Line And Preferred Line Timeout

    Preferred Line and Preferred Line Timeout The 6757i has a feature called “preferred line” and “preferred line timeout”. If you enable the preferred line parameter on your phone, after a call ends (incoming or outgoing), the display switches back to the preferred line. Next time you go off- hook to make another call, you pickup on the preferred line.
  • Page 182 Configuring “Preferred Line” and “Preferred Line Timeout” Using the Aastra Web UI Aastra Web UI Use the following procedure to configure the Preferred Line and Preferred Line Timeout feature using the Aastra Web UI. Click on Basic Settings->Preferences->General. In the “Preferred Line” field, select a preferred line to switch focus to after incoming or outgoing calls end on the phone.
  • Page 183: Message Waiting Indicator

    MWI LED on line 3 only, the LED illuminates if a voice mail is pending on line 3. If you configure the MWI LED for all lines, the LED illuminates if a voice mail is pending on any line on the phone (lines 1 through 9). You configure the MWI indicator using the Aastra Web UI. Configuring Message Waiting Indicator...
  • Page 184: Incoming Intercom Call Features

    You can change the behavior of how the phone handles incoming intercom calls by enabling/disabling specific parame- ters using the Aastra Web UI. The following table describes these features. Incoming Intercom Features in Aastra...
  • Page 185: Using Redial Key For "Last Number Redial

    Additional Features Configuring Incoming Intercom Settings Aastra Web UI Use the following procedure to configure incoming intercom call settings on the IP phone. Click on Basic Settings->Preferences->Incoming Intercom Settings. The "Auto-Answer" field is enabled by default. The automatic answering feature is turned on for the IP phone for answering Intercom calls.
  • Page 186: Group Rtp Paging

    SIP signalling. This is called Group Paging on the IP phones. You can specify up to 5 multicast addresses that the phone listens for on the network. This feature is configurable using the Aastra Web UI only.
  • Page 187: Shared Call Appearance (Sca) Call Bridging

    Additional Features Shared Call Appearance (SCA) Call Bridging Shared Call Appearance (SCA) is when incoming calls are presented to multiple phones simultaneously. For example, it is the ability to assign the boss' extension to a key on the secretary's phone. Calls can be transferred between two phones with the same extension key by simply putting the call on hold at one phone and picking it up on the other.
  • Page 188 Additional Features Line Keys and Idle Screens State Call LED Call Caller ID Non-Call LED Non-Call Caller ID Idle Seized Solid Green None Solid Red None Progressing (outgoing call) Green Called Party Solid Red None Alerting (incoming call) Blinking Unselected Red Active Solid Green Far-end...
  • Page 189: Available Features Enabled By Administrators

    Customizable Callers List Key and Services Key The 6757i IP Phone currently has a Callers List key and a Services key. Your System Administrator can specify an XML URI that creates a custom Callers List and Services application for your phone. When you press the Callers List key or the Serv- ices key, the phone accesses a custom XML URI Callers List, or a custom XML URI Service.
  • Page 190: Autodial (Hotline And Warmline)

    Centralized Conferencing The 6757i supports centralized conferencing for Sylantro and Broadsoft servers. This feature provides centralized confer- encing on the SIP server (versus localized, on the phone). Your System Administrator must enable this feature on your phone before you can use centralized conferencing.
  • Page 191: Answer And Ignore Softkeys For Xml Applications

    Playing a WAV File On Your Phone If enabled by your Administrator, the 6757i IP Phone can play a WAV file. A WAV file is an audio file format standard for stor- ing an audio bit stream on a system in raw, uncompressed format or compressed format to reduce the file size.
  • Page 192: Using The Keypad During Active Xml Applications

    Using the Keypad During Active XML Applications If enabled by your Administrator, the 6757i IP Phone can allow you to continue using your keypad keys during active XML applications on your phone. This feature is applicable only when your phone is in the connected state. By default, the phone suppresses dialpad events when an XML object is in focus, so your Administrators must enable the keypad to be used during active XML applications.
  • Page 193: Xml Applications And Off-Hook Interaction

    XML Override for a Locked Phone The 6757i has a feature that allows a locked phone to be overridden when an XML application is sent to the phone. This feature also allows you to still use softkeys/expansion module keys applicable to the XML application even though the phone is locked.
  • Page 194: Hold" Feature Enhancement (For Broadsoft Servers)

    Broadsoft Client Management System (CMS) If enabled by an Administrator, the 6757i has authentication support when using HTTP or HTTPS as download protocols (as per RFC 2617). When a phone is connected to a Broadsoft Server using the CMS tool, a LOGIN key displays. Pressing the LOGIN key displays a login screen with Username and Password.
  • Page 195: Display Of Call Destination Information

    By default, your phone displays call destination information if your phone is configured to forward calls to other destina- tions. The call destination information displays on multiple screens that scroll every 3 seconds. The following example shows call destination information on the 6757i IP Phone. Call Destination Information...
  • Page 196: Indication Of Terminated Calls

    An audible busy signal is also heard on the phone. The configuration of this feature can also include the maximum time interval that the busy signal is audible. Contact your System Administrator for more information. The following is the call terminated screen that displays on the 6757i if this feature is enabled on your phone: 6757i Call Terminated 41-001385-00 Rev 01 –...
  • Page 197 Available Features Enabled by Administrators The following table identifies when a call terminated screen displays on the phone for different scenarios. THEN 1 line active and far-end disconnects, the line in focus: displays disconnected screen. plays busy tone. displays "Call Terminated" message on the screen. the line not in focus: plays busy tone.
  • Page 198: Model M670I And M675I Expansion Modules

    Model M670i and M675i Expansion Modules The 6757i IP Phone offers optional M670i and M675i Expansion Modules that attach to the right side of the phone to provide additional softkeys. Note: A DHSG headset and an expansion module cannot be used concurrently as they both share the same headset port.
  • Page 199 Park Empty Pickup You can configure the keys using the Aastra Web UI at the path, Operation->Expansion Module <N> when an Expansion Module is attached to the 6757i IP Phone. Reference For more information about configuring the expansion module keys with these functions, see the “Softkeys”...
  • Page 200: Using The Expansion Modules

    Model M670i and M675i Expansion Modules Using the Expansion Modules M670i Expansion Module After configuring the softkeys on the M670i Expansion Module, you can record the name of the softkey on the paper labels provided with the Expansion Module. Press the softkey you want to use when applicable. Softkeys Lock Phone BLF Key...
  • Page 201 54. For more information about installing M670i and M675i modules on your phone, see the Aastra 6757i SIP IP Phone Installation Guide. Press-and-Hold to Create a Speed Dial Key You can press and hold an expansion module key to create a speed dial key and configure it the same way you configure a speed dial key on the phone.
  • Page 202: Troubleshooting Solutions

    Aastra PoE (Power over Ethernet) inline power supply, to provide power over Eth- ernet locally to your phone. See the section “Connecting to the Network and to Power” in the Aastra 6757i Installa- tion Guide for details.
  • Page 203 The phone displays the “No Service” message if the SIP settings have not been set up correctly. Contact your System Administrator for more information. How do I change my user password? You can change the user password from the IP phone UI or the Aastra Web UI. IP Phone UI Press on the phone to enter the Options List.
  • Page 204 At the path Options->Phone Lock on the IP Phone UI. • At the path Operations->Phone Lock on the Aastra Web UI. • At a configured key on the phone. For more information about configuring a Lock/Unlock key on your phone, see “Making Calls”...
  • Page 205 Press on the phone to enter the Options List. Enter your user password and press Enter.. The phone unlocks. Aastra Web UI Lock the Phone Click on Operation->Phone Lock. In the "Lock the Phone?" field, click Lock. The phone locks dynamically and displays the following message: "Phone is locked".
  • Page 206: Limited Warranty

    (1) year period from the date of original purchase (“Warranty Period”). If there is a defect or malfunction, Aastra shall, at its option, and as the exclusive remedy, either repair or replace the product at no charge, if returned within the Warranty Period.
  • Page 207: Limited Warranty (Australia Only)

    Part 5-4 of Schedule 2 to the Competition and Consumer Act 2010 (the ACL), the exercise of a right conferred by such a provision or any liability of Aastra in relation to a failure to com- ply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services.
  • Page 208: Warranty Repair Services

    Aastra in relation to a failure to comply with a guarantee that applies under Division 1 of Part 3-2 of the ACL to a supply of goods or services.
  • Page 209: Appendix A - Time Zone Codes

    Appendix A - Time Zone Codes The following table identifies the time zone name and time zone code to use on the IP phone. Time Zone Name/Time Zone Code Table Time Zone Name Time Zone Code AD-Andorra AE - Dubai AG-Antigua AI-Anguilla AL-Tirane...
  • Page 210 Appendix A - Time Zone Codes Time Zone Name Time Zone Code CA-Newfoundland CA-Atlantic CA-Eastern CA-Saskatchewan CA-Central CA-Mountain CA-Pacific CA-Yukon CH-Zurich CK-Rarotonga CL-Santiago CL-Easter CN-Beijing CO-Bogota CR-Costa Rica CU-Havana CY-Nicosia CZ-Prague DE-Berlin DK-Copenhagen DM-Dominica DO-Santo Domingo EE-Tallinn ES-Madrid ES-Canary FI-Helsinki FJ-Fiji FK-Stanley FO-Faeroe...
  • Page 211 Appendix A - Time Zone Codes Time Zone Name Time Zone Code LC-St Lucia LI-Vaduz LT-Vilnius LU-Luxembourg LV-Riga MC-Monaco MD-Chisinau MK-Skopje MQ-Martinique MS-Montserrat MT-Malta MU - Mauritius MX-Mexico City MX-Cancun MX-Merida MX-Monterrey MX-Mazatlan MX-Chihuahua MX-Hermosillo MX-Tijuana NI-Managua NL-Amsterdam NO-Oslo NR-Nauru NU-Niue NZ-Auckland NZ-Chatham...
  • Page 212 Appendix A - Time Zone Codes Time Zone Name Time Zone Code TR-Istanbul TT-Port of Spain TW-Taipei UA-Kiev US-Eastern US-Central US-Mountain US-Pacific US-Alaska US-Aleutian US-Hawaii UY-Montevideo VA-Vatican YU-Belgrade 41-001385-00 Rev 01 – 06.2013...
  • Page 213: Index

    ......................115 requirements of ....................2 dial plan, emergency ....................52 dial tones, stuttered ....................167 dialing Aastra Web UI pre-dialling a number ..................116 Operaton parameters ..................18 dialing a number ....................116 phone status ..................... 18 dialpad, live ........................ 30 about this guide ......................1...
  • Page 214 Index installation and setup ....................2 None key ........................113 intercom calls incoming call features ..................177 on-hold calls ......................122 Intercom key ......................107 Optional Accessories ....................11 Intercom key, softkey for ..................108 options intercom, outgoing calls using .................182 setting via the phone UI ................14 Intercom, using ......................118 setting via the Web UI ..................16 IP address, finding ..................21...
  • Page 215 Index time and date ......................34 time and date format ..................... 34 user password ......................48 transferring calls using your phone ....................53 blind ........................123 consultative ..................... 123 indication of ....................126 voicemail ......................121 pre-dial and live dial mode ................ 123 troubleshooting solutions .................195 warning tone, for Intercom ................
  • Page 216 While every effort has been made to ensure accuracy, Aastra Telecom Inc. will not be liable for technical or editorial errors or omissions contained within this documentation. The information contained in this documentation is subject to change without notice.

Table of Contents
