TTL Diagnostics Screen

WinView/32 provides a TTL Diagnostics screen (located in WinView/32 under
Setup|Diagnostics
Note: In WinView software versions prior to 1.6, Output Lines 5, 6, 7, and 8 are shown
checked in the default state, incorrectly indicating that their default state is logic 1 in the
MicroMAX.

Hardware Interface

A cable will be needed to connect the TTL In/Out connector to the experiment. The
design will vary widely according to each user's needs, but a standard 25-pin female type
D-subminiature connector will be needed to mate with the TTL In/Out connector at the
ST-133. The hardware at the other end of the cable will depend entirely on the user's
requirements. If the individual connections are made using coaxial cable for maximum
noise immunity (recommended), the center conductor of the coax should connect to the
proper signal pin and the cable shield should connect to the nearest available ground
(grounds are conveniently provided at pins 5, 8, 18 and 20). Connector hardware and
cables of many different types are widely available and can often be obtained locally,
such as at a nearby Radio Shack
although the items listed may be appropriate in many situations, they might not meet
your specific needs.
•
25-pin female type D-subminiature solder type connector (Radio Shack part no 276-
1548B).
•
RG/58U coaxial cable.
TTL Control
Assignment
IN 1 14
IN 3 15
IN 5 16
IN 7 17
GND 18
EN/CLK 19
(future use) 20
GND 21
OUT 1 22
OUT 3 23
OUT 5 24
OUT 7 25
Reserved

Table 12. TTL In/Out Connector Pinout

) that can be used to test and analyze the TTL In/Out lines.
Pin # Assignment
IN 2
IN 4
IN 6
IN 8
GND
Reserved
GND
OUT 2
OUT 4
OUT 6
OUT 8
GND
® store. A list of possibly useful items follows. Note that,
89

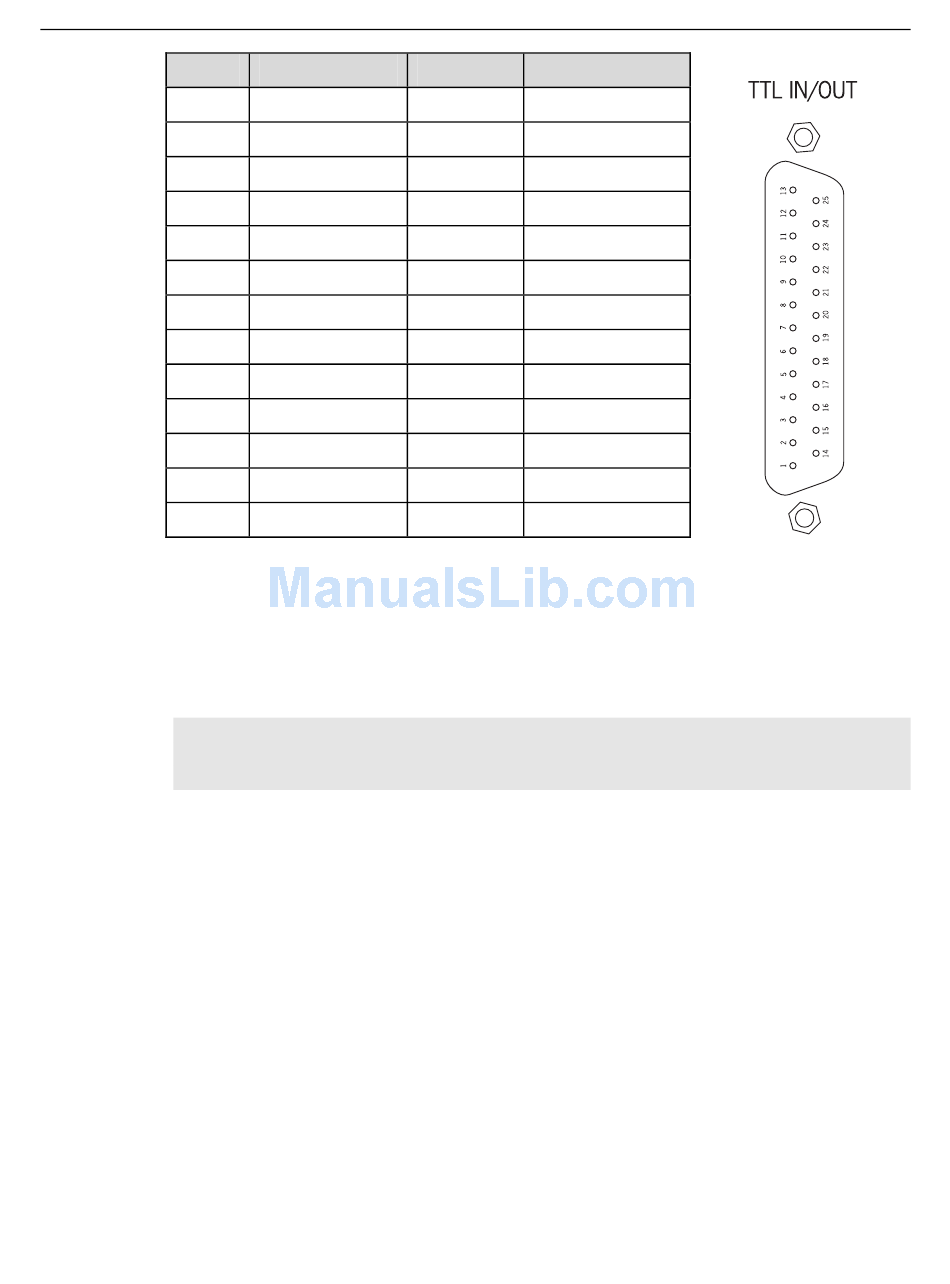

Figure 45. TTL In/Out
Connector
Hardware
