144

Acton (NTE with or without shutter)

Qty
1. 3
Assembly Instructions
1. Make sure that the shipping cover has been removed from the detector port on the
spectrometer.
2. Loosen the setscrews holding the Acton adapter in the spectrometer and remove the
adapter.
3. Remove the spacer plate from the adapter by removing the three (3) socket head
screws.

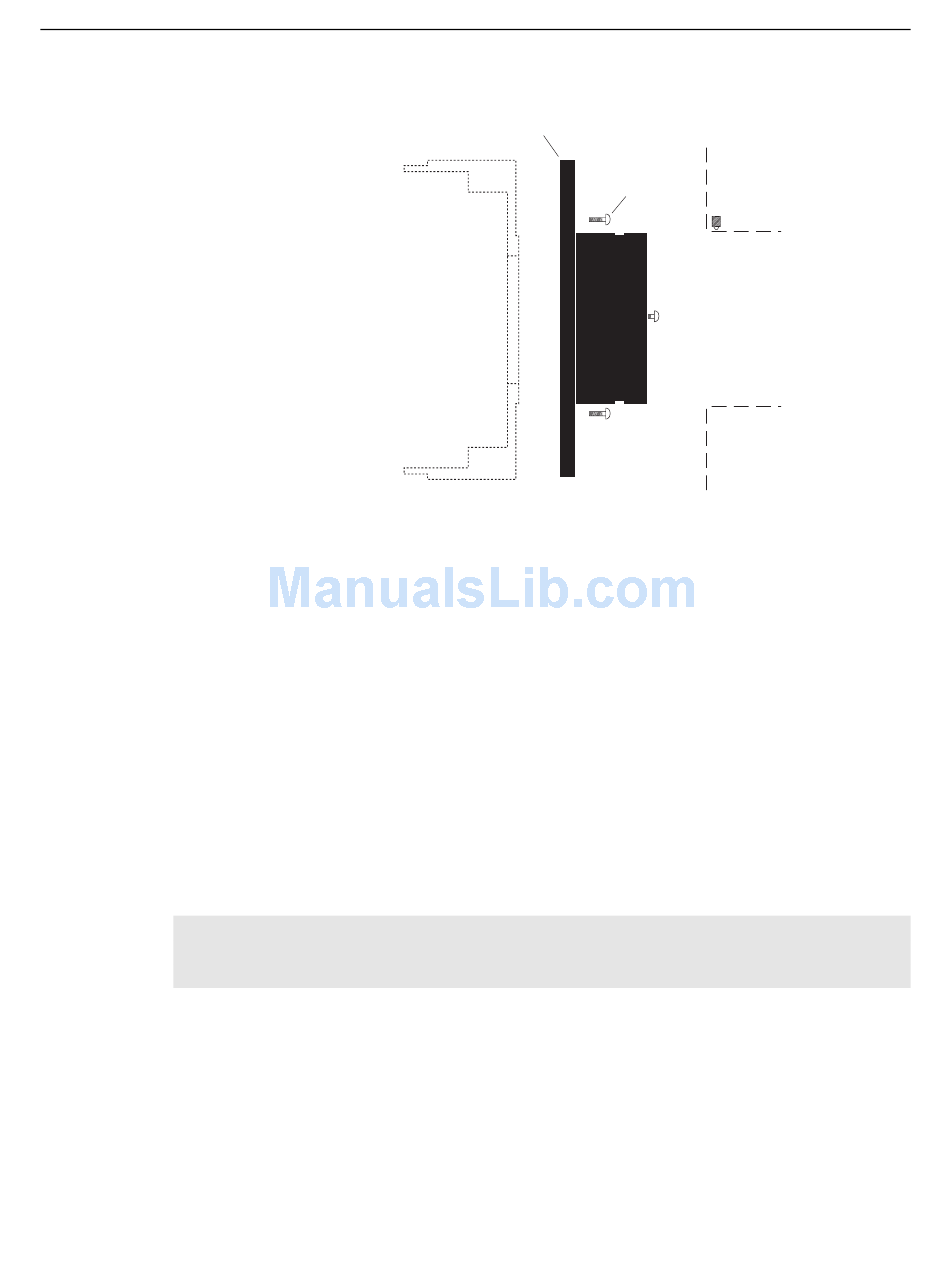

4. Mount the Acton adapter to the face of the detector drum housing (dashed outline in
illustration) with the three (3) 1/4" long button head screws.
5. Gently insert the adapter into the spectrometer and fasten with the setscrews.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the detector
back and forth when inserting into the spectrometer adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
MicroMAX System User Manual
Adapter (supplied with spectrometer)
Spacer Plate (removed)
P/N Description
Screw, 10-32 × 1/4, Button Head Allen Hex, Stainless Steel
2826-0127
1
Version 6.B
