Appendix F

Chromex 250 IS (NTE with or without shutter)

Qty
1.
2.
3.
4.
5.
Assembly Instructions

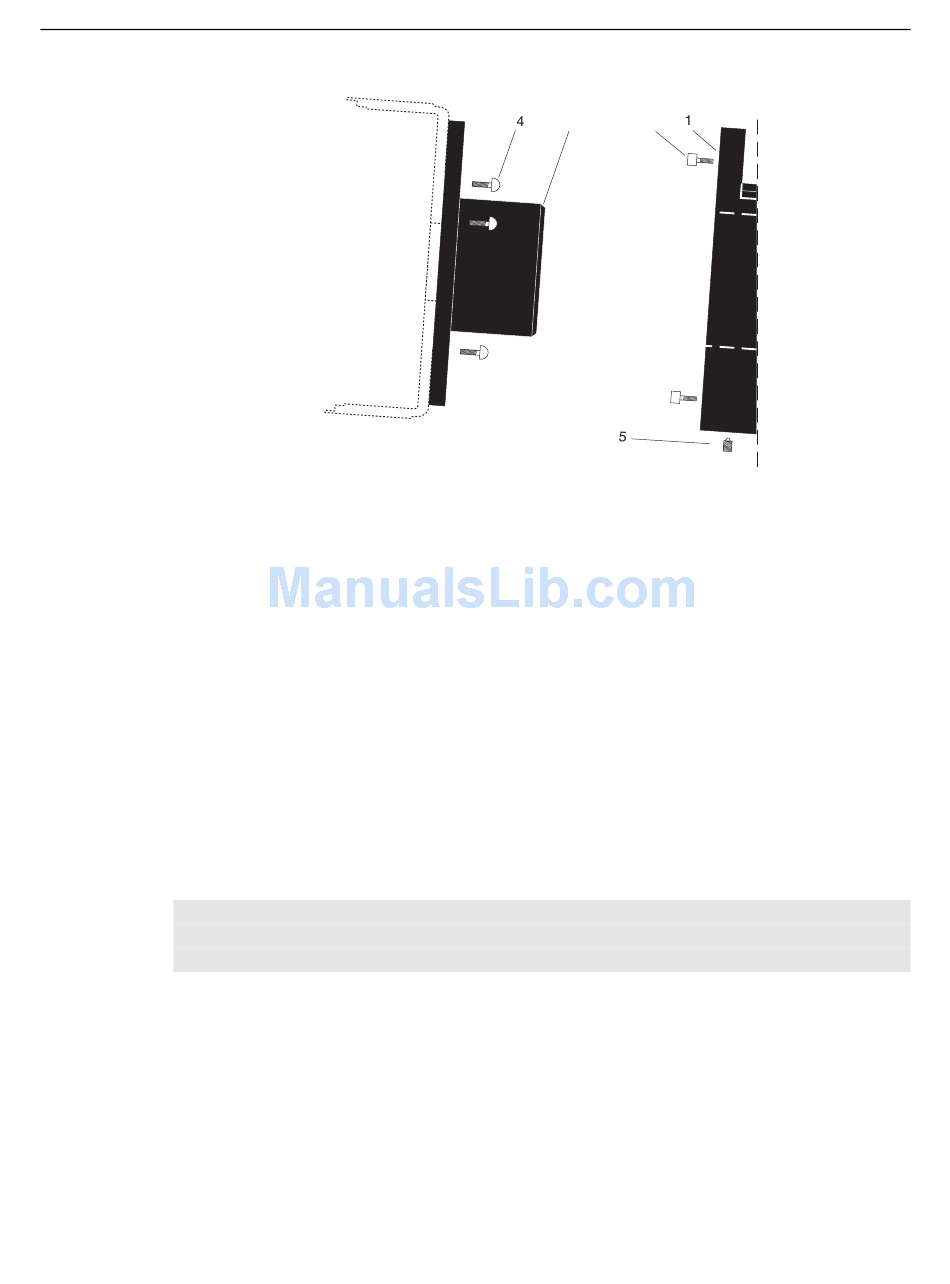

1. Attach part 1 to the spectrometer (dashed line in illustration) with the socket head
screws provided.
2. Attach part 3 to the camera with the three (3) 1/4" long button head screws provided.
3. Gently insert part 3 into part 1 and fasten with the setscrew.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the camera
back and forth when inserting into the spectrometer adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
Spectrometer Adapters
P/N Description
1 2517-0901 Plate, Adapter-Female
Screw, 10-32 × 3/4, Socket head, Stainless Steel, Hex, Black
4 2826-0283
1 2518-0107 Adapter-Male, HR320
Screw, 10-32 × 1/4, Button Head Allen Hex, Stainless Steel
3 2826-0127
Set Screw, 10-32 × 1/4, Stainless Steel, Allen Hex, Nylon Tip
1 2826-0082
3 2
145
