SPEX 500M (NTE with or without shutter)

Qty
1.
2.
3.
4.
5.

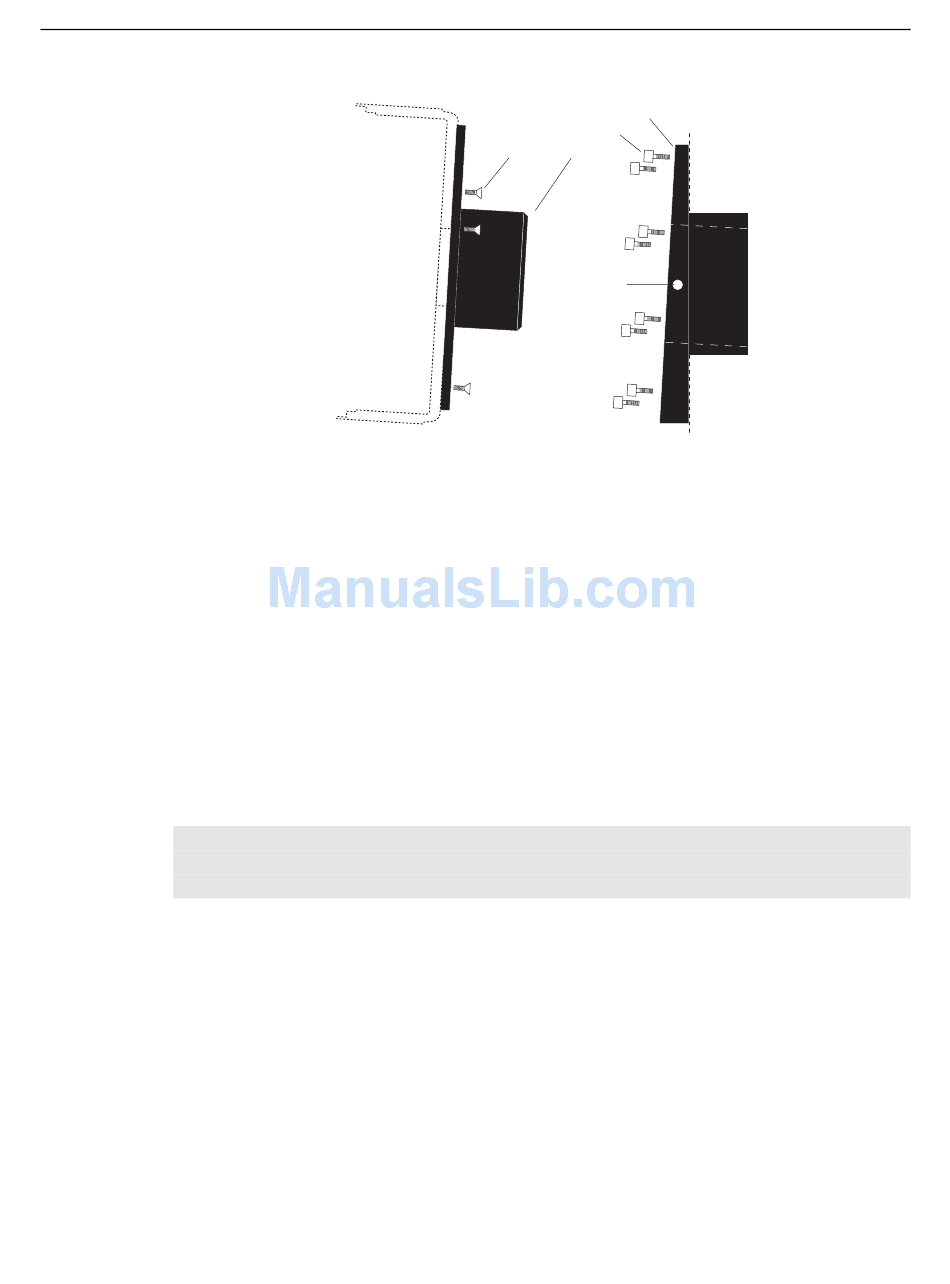

Assembly Instructions
1. Insert part 1 into the spectrometer wall (dashed line in illustration) and fasten with
the socket head screws provided.
2. Attach part 3 to the camera with the three (3) 1/4" long button head screws provided.
3. Gently insert part 3 into part 1 and fasten with the setscrews.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the camera
back and forth when inserting into the spectrometer adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
MicroMAX System User Manual
P/N Description
1 2517-0214 Adapter-Female, Spex 500m
Screw, 1/4-20 × 0.51, Low Socket Head Cap, Black
8 2826-0170
1 2518-0223 Adapter-Male, Spex 500m
Screw, 10-32 × 1/4, Flat Head Slot, Stainless Steel
3 2826-0134
Screw, 8-32 × 14, Set Allen Hex, Nylon
2 2826-0055
1
2
4 3
5
Version 6.B
