13. Turn on the computer and begin running WinView/32.
14. Enter the hardware setup information or load the defaults from the
controller.
15. Set the target array temperature.
16. When the system reaches temperature lock, begin acquiring data in
focus mode.
17. Adjust the focus for the image.
MicroMAX System User Manual
Action
Detector-Controller
Camera
Detector
Microscope
EXPERIMENT

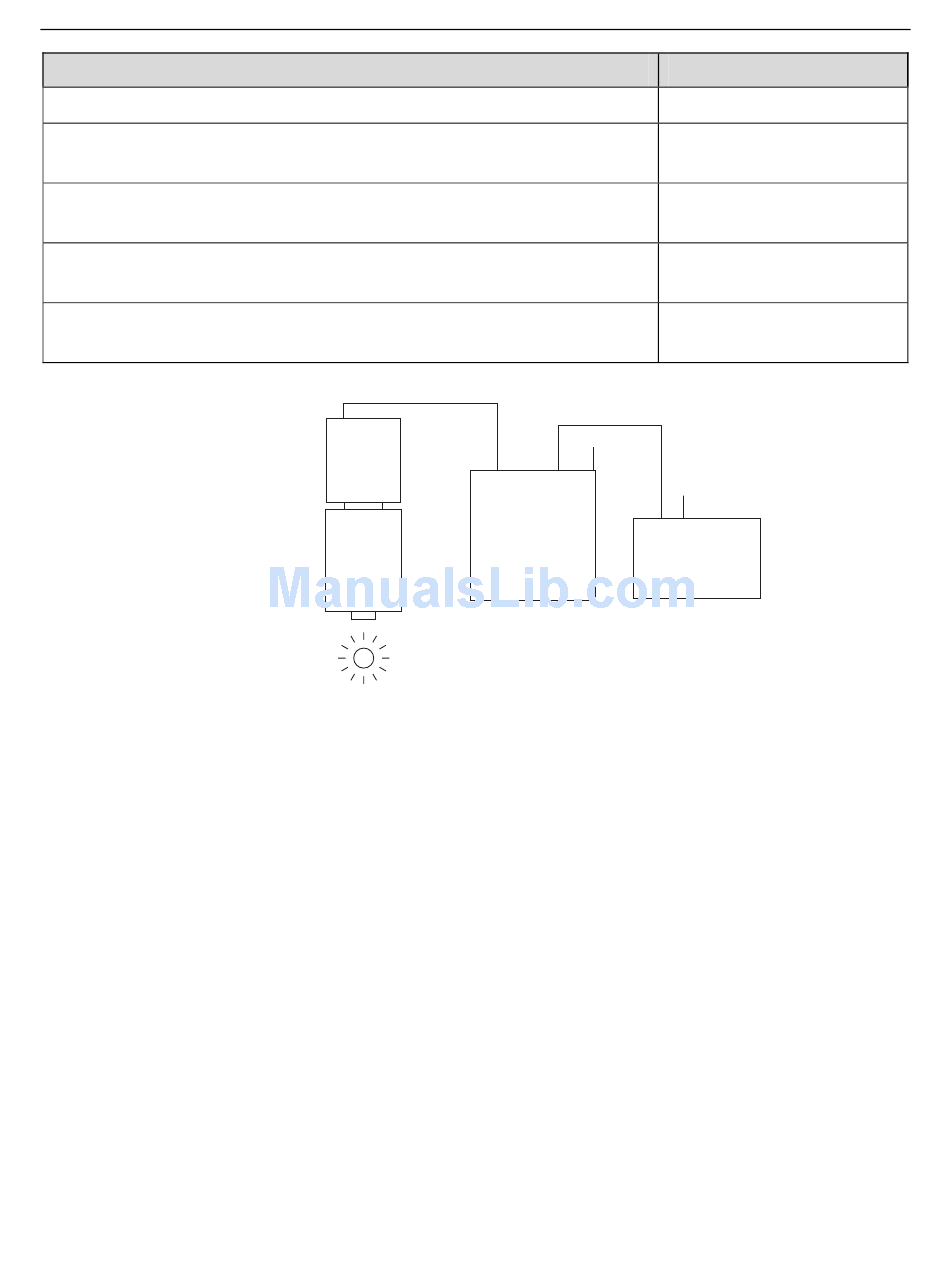

Figure 2. Standard System Diagram

WinView/32 manual
Chapter 4 Operation,
page 42 or page 46
Chapter 4 Operation,
page 36, 42, or 46
Chapter 4 Operation,
page 43 or page 48
Chapter 4 Operation,
page 43 or page 48
Interface cable
(TAXI or USB 2.0)
110/220
Serial Com
110/220
or USB 2.0
Controller
Computer
Version 6.B
Reference
