ISA HR 320 (NTE with or without shutter)

Qty
1.
2.
3.
4.
5.

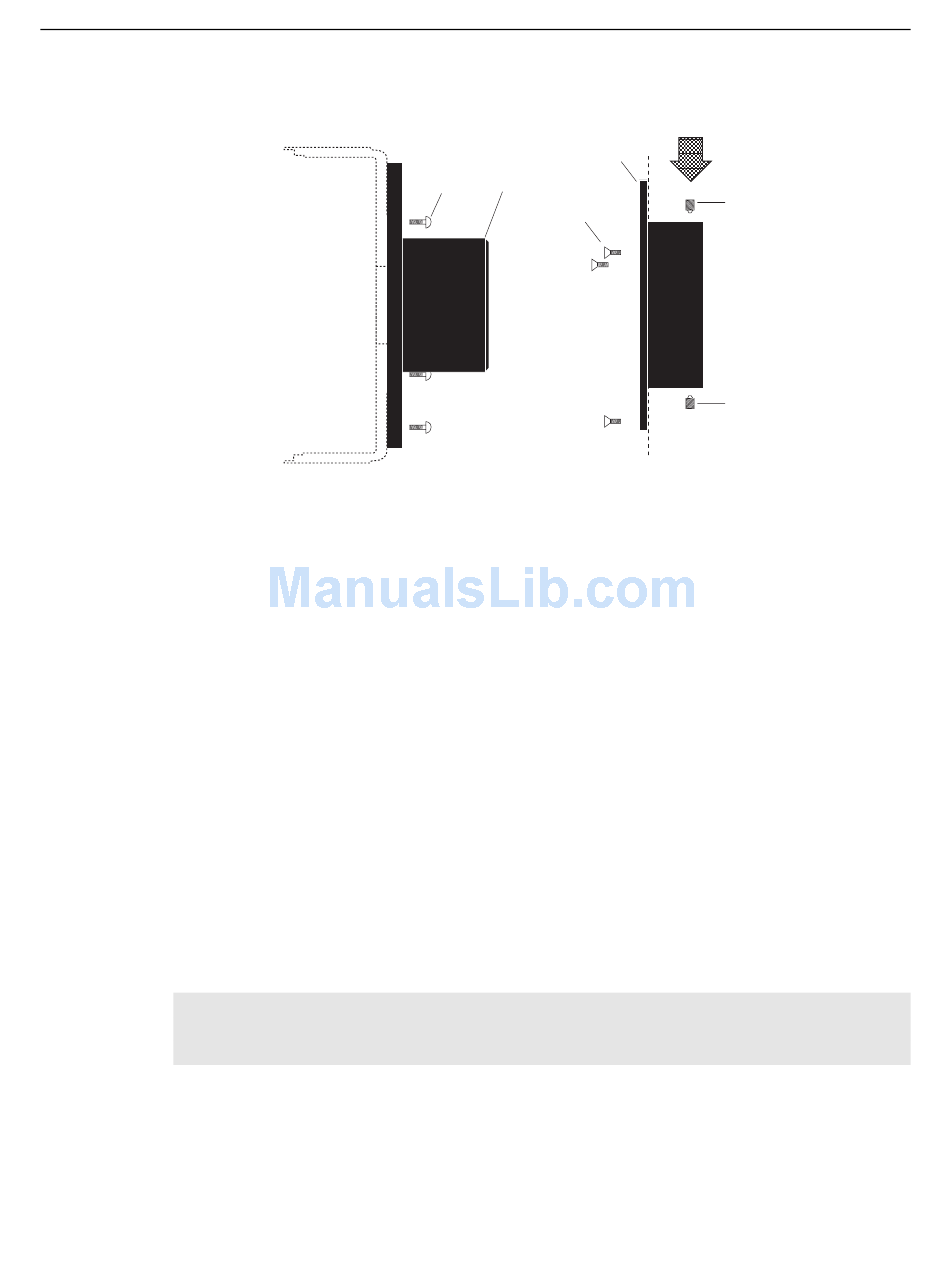

Assembly Instructions
1. Remove the spectrometer cover.
2. Insert part 1 into the spectrometer (dashed line in illustration), fasten with the flathead
screws provided, and replace spectrometer cover.
3. Attach part 3 to the camera with the three (3) 1/4" long button head screws provided.
4. Gently insert part 3 into part 1 and fasten with the setscrews.
3. Replace the spectrometer cover.
Note: Adapter parts are machined to provide a tight fit. It is necessary to rotate the camera
back and forth when inserting into the spectrometer adapter. Do not force the two parts of the
adapter together, as they can be permanently damaged by excessive force.
MicroMAX System User Manual
P/N Description
1 2518-0106 Adapter-Female, HR320
3 2826-0087 Screw, M5-10, Flat Head, Socket, Stainless Steel
1 2518-0107 Adapter-Male, HR320
Screw, 10-32 × 1/4, Button Head Allen Hex, Stainless Steel
3 2826-0127
Set Screw, 10-32 × 1/4, Stainless Steel, Allen Hex, Nylon Tip
2 2826-0082
Remove spectrometer cover
1
3
4
2
Version 6.B
for these screws.
5
5
