picoLink series
FIO-991p
Standalone 3Gbps/HD/SD/MADI SDI
optical-to-electrical
/ electrical-to-optical converter
Guide to Installation and Operation
M947-9900-101
31 Jan 2013
Miranda Technologies
3499 Douglas-B.-Floreani
St-Laurent, Québec, Canada H4S 1Y6
Tel. 514-333-1772
Fax. 514-333-9828
www.miranda.com
© 2013 Miranda Technologies.
Advertisement
Table of Contents
Related Manuals for Miranda picoLink FIO-991p
Summary of Contents for Miranda picoLink FIO-991p
- Page 1 FIO-991p Standalone 3Gbps/HD/SD/MADI SDI optical-to-electrical / electrical-to-optical converter Guide to Installation and Operation M947-9900-101 31 Jan 2013 Miranda Technologies 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 1Y6 Tel. 514-333-1772 Fax. 514-333-9828 www.miranda.com © 2013 Miranda Technologies.
- Page 2 GUIDE TO INSTALLATION AND OPERATION Contact Miranda For technical assistance, please contact the Miranda Technical Support centre nearest you: Americas Asia Telephone: Telephone: +1-800-224-7882 +852-2539-6987 e-mail: e-mail: support@miranda.com asiatech@miranda.com Europe, Middle East, Africa, UK China Telephone: Telephone: +44 1189 523444...
- Page 3 GUIDE TO INSTALLATION AND OPERATION Radio Frequency Interference and Immunity his equipment has been tested for verification of compliance with FCC Part 15, Subpart B requirements for Class A digital devices. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
-
Page 4: Table Of Contents
GUIDE TO INSTALLATION AND OPERATION Table of Contents FIO-991p Standalone 3G/HD/SD/MADI electrical/optical converter ..................1 1.1 Introduction ................. 1 1.2 Features ..................1 1.3 Product Overview ................ 2 1.4 Product Variants ................. 2 FIO-991p-R-LC ................3 FIO-991p-RR-LC ................3 FIO-991p-T-LC ................4 FIO-991p-TT-LC ................ -
Page 5: Fio-991P Standalone 3G/Hd/Sd/Madi Electrical/Optical Converter
GUIDE TO INSTALLATION AND OPERATION FIO-991p Standalone 3G/HD/SD/MADI electrical/optical converter Introduction The FIO-991p series are flexible serial digital video to/from fiber converters. They are designed for SD, HD and 3G serial video as well as compressed bit-streams (DVB-ASI) and MADI digital audio. The series supports any data rate within the range of 19.4 Mbps to 2.97 Gbps and provides a reclocked serial digital video from 270Mbps to 2.97 Gbps. -
Page 6: Product Overview

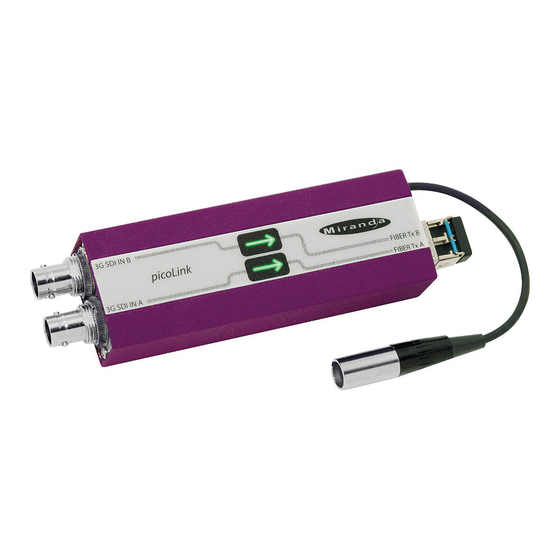

GUIDE TO INSTALLATION AND OPERATION Product Overview Figure 1 illustrates the FIO-991p's major parts and their locations. The SFP module is inserted into the socket on the end of the FIO-991p chassis, and the fiber is plugged into the SFP module. The 3G/HD/SD digital video inputs and outputs appear on BNC connectors at the opposite end of the chassis. -
Page 7: Fio-991P-R-Lc
GUIDE TO INSTALLATION AND OPERATION FIO-991p-R-LC Single optical receiver, double 3G/HD/SD SDI output FIO-991p-R-LC (Single Rx) Optical 3G/HD/SD FIBER Rx SDI OUT 1 3G/HD/SD SDI OUT 2 FIO-991p-RR-LC Dual optical receivers, dual 3G/HD/SD SDI outputs FIO-991p-RR-LC (Dual Rx) Optical 3G/HD/SD SDI OUT A FIBER Rx A FIBER Rx B... -
Page 8: Fio-991P-T-Lc
GUIDE TO INSTALLATION AND OPERATION The WDM version receives two signals which are wave division multiplexed onto a single fiber (one at 1310 nm and one at 1550 nm), and optically splits them into the two receivers, each of which has an electrical output. FIO-991p-RR-W-LC Dual Rx with WDM Optical 3G/HD/SD... -
Page 9: Fio-991P-Tt-Lc
GUIDE TO INSTALLATION AND OPERATION FIO-991p-TT-LC Dual 3G/HD/SD SDI inputs, dual optical transmitters. FIO-991p-TT-S13S13-LC (Dual Tx) Optical 3G/HD/SD SDI IN A FIBER Tx A FIBER Tx B Optical 3G/HD/SD SDI IN B The WDM version has optical transmitters at 1310 nm and 1550 nm, to allow the two signals to be wave-division multiplexed onto a single fiber. - Page 10 GUIDE TO INSTALLATION AND OPERATION The CWDM version is designed to be used with an external optical multiplexer, and is available with pairs of transmitters at the industry- standard frequencies for this application. FIO-991p-TT-CXXCYY-LC (Dual Tx with CWDM) FIO-991p-THTH-CXXCYY-LC (Dual High Power Tx with CWDM) Optical 3G/HD/SD SDI IN A...
-
Page 11: Fio-991P-Rt-Lc
GUIDE TO INSTALLATION AND OPERATION FIO-991p-RT-LC Single 3G/HD/SD SDI input, single optical transmitter, plus single optical receiver, single 3G/HD/SD SDI output. FIO-991p-RT-S13-LC (Rx & Tx) Optical 3G/HD/SD FIBER Tx SDI IN Optical FIBER Rx 3G/HD/SD SDI OUT WDM versions use a single fiber for input and output. The optical transmitter can be selected to work at 1310 nm or 1550nm, while the optical receiver functions at the other wavelength. -
Page 12: Fio-991P-Rd-Lc
GUIDE TO INSTALLATION AND OPERATION FIO-991p-RT-W15-LC (Rx & Tx with WDM) Optical 3G/HD/SD SDI IN (1550 nm) FIBER RxTx Optical 3G/HD/SD SDI OUT FIO-991p-RD-LC Single optical receiver with double 3G/HD/SD SDI outputs, with the optical input linked to a single optical transmitter. Functionally, an optical repeater with electrical drop. -
Page 13: Fio-991P-Madi-Rt-M13-Lc
GUIDE TO INSTALLATION AND OPERATION FIO-991p-MADI-RT-M13-LC Single MADI input, single optical transmitter on multi-mode fiber, plus single optical receiver, single MADI output. FIO-991p-MADI-RT-M13-LC (multi-mode Rx & Tx) FIO-991p-MADI-RT-S13-LC Single MADI input, single optical transmitter on single-mode fiber, plus single optical receiver, single MADI output. FIO-991p-MADI-RT-S13-LC (single-mode Rx &... - Page 14 GUIDE TO INSTALLATION AND OPERATION Rear View The back side of the unit shows the model type, serial number and other details. 10 | FIO-991p...
-
Page 15: Installation
Installation in the pL Tray The FIO-991p can be installed in Miranda’s pL Tray, a 1 RU frame with built- in power supply that can hold up to 10 picoLink devices. The FIO-991p is installed with the BNC video connectors facing the front of the tray, and the fiber optic and power supply connections on the back. -
Page 16: Fiber Optic Interface
GUIDE TO INSTALLATION AND OPERATION Fiber Optic Interface Installing and removing the Fiber I/O interface cartridge requires special care. The optical interface of the FIO-991p consists of two parts: • A socket on one end of the chassis into which an SFP interface module is plugged •... - Page 17 GUIDE TO INSTALLATION AND OPERATION Installing an SFP module Make sure that the bale clasp lever is in the closed position Position the SFP module so that the recessed slot is lined up with the tab side of the socket. Slide the module straight into the socket, and push gently until it clicks into position.
-
Page 18: Hd/Sd Digital Video And Madi Digital Audio Connections
GUIDE TO INSTALLATION AND OPERATION • Do NOT pull on the bale clasp lever to remove the module, as it is easily damaged • You may find that you need to wiggle the module, or perhaps push it into the slot a bit, before it will release and slide out. Insert a dust plug into the SFP module. -
Page 19: Operation
GUIDE TO INSTALLATION AND OPERATION Operation There are no operating controls on the FIO-991p. Configuration is automatic, depending on the model and the installed SFP module. Status LED assignments The FIO-991p includes two arrow-shaped status LEDs, integrated into the case’s graphics and labeled appropriately, which monitor the status of the inputs. -
Page 20: Specifications
GUIDE TO INSTALLATION AND OPERATION Specifications ELECTRICAL Signal: 3G/HD/SD SDI SMPTE 424M, 292M, and 259M-C compliant Supports data rates of 270, 1483.5, 1485, 2967, 2970 Mbps EN50 83-9 DVB-ASI 270 Mbps MADI-compliant, AES10-2008 Connectors: 75 ohm BNC (IEC 60169-8, Annex A) Return Loss: Video >15 dB up to 1.5 GHz >10 dB from 1.5 GHz to 3 GHz... - Page 21 GUIDE TO INSTALLATION AND OPERATION Rx CHANNEL (pathological bitstream) Video Sensitivity: 270 Mbps and 1.5 Gbps: -20 dBm 3Gbps: -18 dBm MADI (single-mode) (multi-mode) Sensitivity @ 1310 nm: -31 dBm -31 dBm Maximum level: -8 dBm -14 dBm Fiber length: 10 km (6.25 miles).
