Miranda DENSITE Series Manual To Installation And Operation

DESCRIPTION
The FIO-1821-13 is a serial digital video-to-fiber module
for the Densité frame. The FIO-1821-13 is designed for
SD and HD serial video as well as compressed bit-
streams. It supports any data rate in the range 5 Mbps
to 1.5 Gbps and provides a single fiber Tx. The FIO-
1821-13 can be installed in the same chassis as a series
of interface modules, providing a wide variety of video,
audio and data conversion and multiplexing functions.
This card operates with the MSB-1121 Monitoring
Switching Bridge which allows the output of any module
in the Densité frame to be monitored.

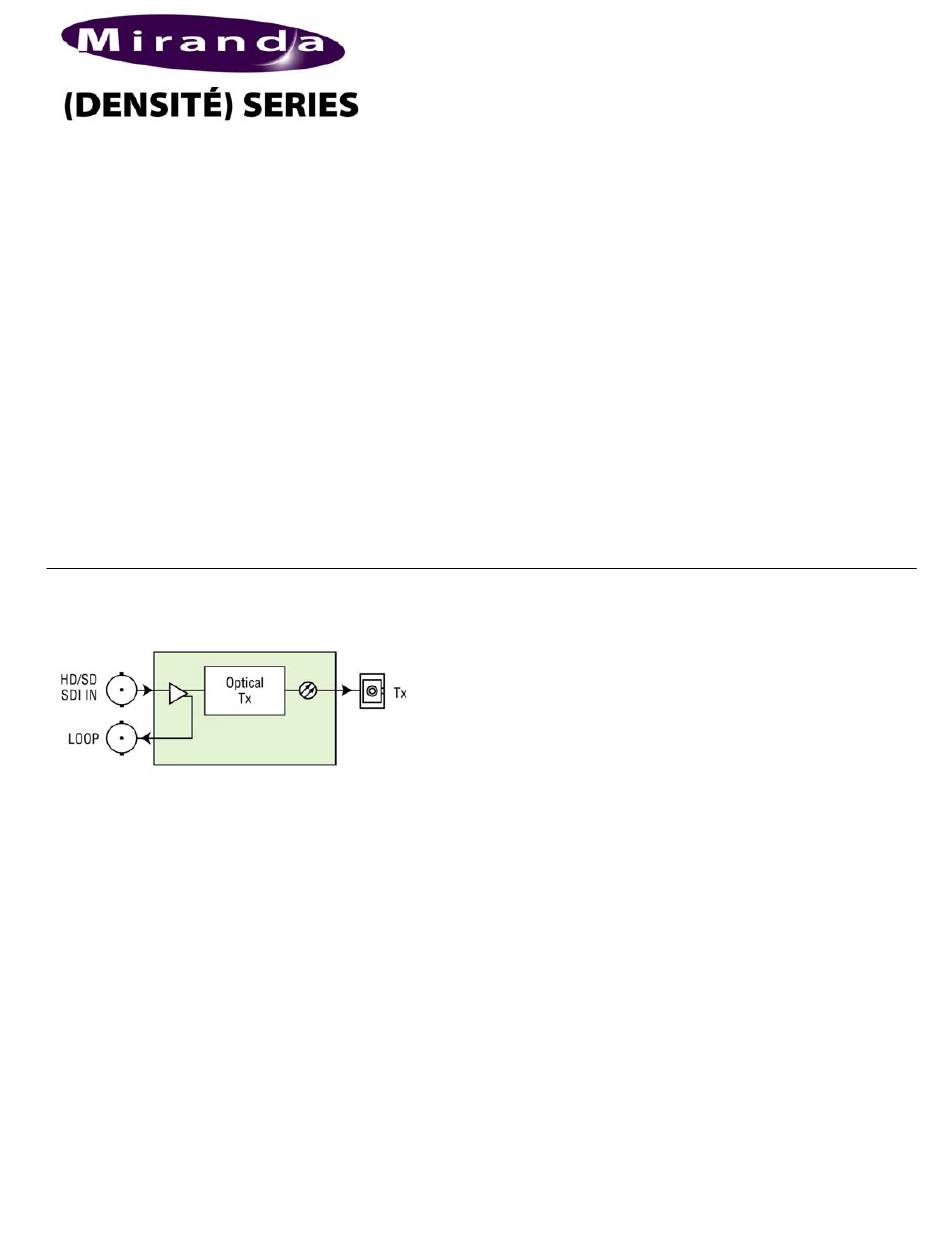

FUNCTIONAL BLOCK DIAGRAM
SPECIFICATIONS
MECHANICAL
I/O CONNECTORS:
VIDEO INPUT
SIGNAL:
RCLK SIGNAL:
CABLE LENGTH:
RETURN LOSS:
FIO-1821-13
75 Ω BNC (2)
Optical SC (2)
SMPTE 292M
(1.485, 1.485/1.001 Gbps)
SMPTE 259M-ABCD
(143, 270, 360 Mbps)
SMPTE 305M (SDTI)
SMPTE 310M (19.4 Mbps)
DVB-ASI (270 Mbps)
Supports proposed 540 Mbps
standard
143, 270, 360, 540 Mbps and
1.5 Gbps
75 m (250') at 1.485 Gbps
(Belden 1694A)
> 15 dB up to 1.5 GHz
FIO-1821-13 Single Electrical to Optical Converter
Guide to Installation and Operation
Features and Benefits
• Supports any serial data rate from 5 Mbps to 1.5 Gbps
(HD-SDI)
• Supports SMPTE 292M, SMPTE 259M, SMPTE
297M, SMPTE-310M, DVB-ASI
• Single-mode 1310 nm transmitter
• Convenient front loading design
• Fully hot swappable
• Electrical signal presence detection
• Remote monitoring and control
• Ideal for long video run with "Hum" immunity
• Provides output to Monitoring Switching Bridge option
(SD only)
OPTICAL TRANSMITTER
SIGNAL COMPATIBILITY: 5 Mbps to 1.5 Mbps
WAVELENGHT:
OUTPUT POWER:
FIBER TYPE:
FIO-1821
M688-9800-100
July 2004
SMPTE 259M (143-540
Mbps)
SMPTE 292M (1.485
Gbps)
SMPTE 297M (Fiber)
SMPTE 305M (SDTI)
SMPTE 310 (19.4 Mbps)
DVB-ASI (270 Mbps)
1310 nm
-7.5 dBm (Laser Diode)
Single Mode
Page 1 of 4
