- Page 2 Guide to Installation and Operation CONTACT MIRANDA For technical assistance, please contact the Miranda Technical Support centre nearest you: Americas Asia Telephone: Telephone: +1-800-224-7882 +81-3-5730-2987 e-mail: e-mail: techsupp@miranda.com asiatech@miranda.com Europe, Middle East, Africa, UK France (only) Telephone: Telephone: +44 (0) 1491 820222...
-
Page 3: Table Of Contents
Guide to Installation and Operation CONTENTS page 1.0 ASD-272p ........….. 1 1.1 Introduction ………………………..... 1 1.2 Features .........…….. 1 2.0 Overall View …………......2 3.0 Installation .......... 3 3.1 Power Supply .......... 3 3.2 S-Video Input ……..……………....4 3.3 4:2:2 Output ………..……..…….... - Page 4 Guide to Installation and Operation | ASD-272p...
-
Page 5: Asd-272P
Guide to Installation and Operation 1.0 ASD-272p 1.1 Introduction The ASD-272p is the industry’s smallest S-video decoder. This product automatically detects NTSC, PAL, PAL-M, PAL-N, and SECAM S-video signals and provides a 4:2:2 serial digital signal conforming to the SMPTE 259M-C standard. The supported inputs range from stable, studio-type sources to satellite and VTR- type sources. -
Page 6: Overall View

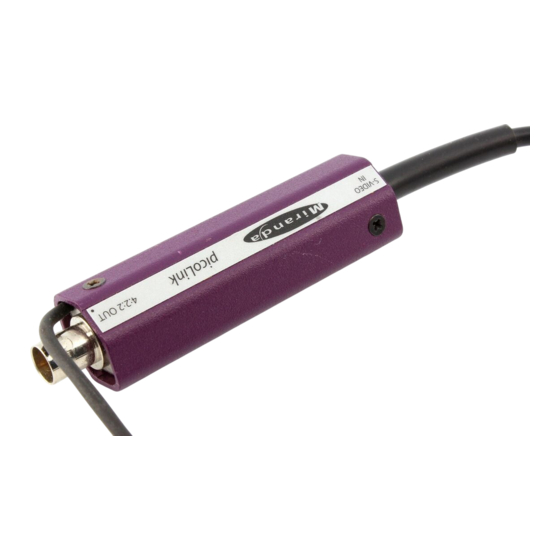

Guide to Installation and Operation 2.0 Overall View Figure 2 illustrates the ASD-272p’s major parts and their locations. The video source is connected to the S-video input BNC and the decoded signal is provided by the 4:2:2 output. Error status is provided by the status LED and mode settings are configured by two 3-position slide switches. -
Page 7: Installation
Guide to Installation and Operation 3.0 Installation 3.1 Power Supply The power supplies LKS-WSA and LKS-WSE, for 110 V and 220 V operation respectively, are used to power the ASD-272p. Each power supply provides a regulated +5 VDC@750 mA power source. The ASD-272p employs a mini XLR-3 connector for its power needs. -
Page 8: S-Video Input
Guide to Installation and Operation 3.2 Composite Input Connect a NTSC or PAL, PAL-M, PAL-N, SECAM S- video signal conforming to the SMPTE 170M or ITU (CCIR) 624-4 standard respectively to the BNC labeled S-VIDEO IN. (male connector-facing) Pin 1: Luma Pin 2: Chroma Pin 3: Luma ground Pin 4: Chroma ground... -
Page 9: Operation
Guide to Installation and Operation 4.0 Operation 4.1 Switch Settings Figure 5 outlines the slide switch functions. Miranda Technologies inc. ASD-272p Made in Canada Input setup (SW1) Input stability (SW2) Figure 5: ASD-272p switch settings Input setup switch (SW1) 7.5 IRE: For S-video sources with 7.5 IRE setup, set... -
Page 10: Status Led
Guide to Installation and Operation If switching from an NTSC source to a PAL-M source which are both synchronized, the picoLink units may interpret the PAL-M source as an NTSC source. If so, the unit will not switch to PAL-M. In order to recover from this problem, disconnect the source from the input BNC and reinstall it. -
Page 11: Specifications
Guide to Installation and Operation 5.0 Specifications Input Signal: S-video 1 Vpp nominal with sync Return loss: > 35 dB up to 5 MHz Connector : Cable with male mini-Din 4 Output Signal: 4:2:2 SMPTE 259M-C (270 Mbps) Return loss: >...
