DENSITÉ series
FIO-1901-RT
3G/HD/SD Bi-Directional
Fiber Optic to Electrical Converter
Guide to Installation and Operation
M927-0300-100
14 Apr 2011
Miranda
Technologies Inc.
3499 Douglas-B.-Floreani
St-Laurent, Québec, Canada H4S 2C6
Tel. 514-333-1772
Fax. 514-333-9828
www.miranda.com
© 2011 Miranda Technologies Inc..
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Miranda FIO-1901-RT
Summary of Contents for Miranda FIO-1901-RT
- Page 1 DENSITÉ series FIO-1901-RT 3G/HD/SD Bi-Directional Fiber Optic to Electrical Converter Guide to Installation and Operation M927-0300-100 14 Apr 2011 Miranda Technologies Inc. 3499 Douglas-B.-Floreani St-Laurent, Québec, Canada H4S 2C6 Tel. 514-333-1772 Fax. 514-333-9828 www.miranda.com © 2011 Miranda Technologies Inc..
-
Page 2: Electromagnetic Compatibility
CFR 1040.10 and 1040.11. The transceiver must be operated within the specified temperature and voltage limits. The optical ports of the module shall be terminated with an optical connector or with a dust plug. How to contact us: For technical assistance, please contact the Miranda Technical support centre nearest you: Americas Asia... -
Page 3: Table Of Contents
The Factory/Presets panel ....................13 3.3.6 The Alarm Config panel ....................... 14 3.3.7 The Info panel ........................17 Specifications ........................... 19 ANNEX 1 – FIO-1901-RT User Interface (local menu structure) ..........21 ANNEX 2 – Installing the Optical Interface .................. 22 FIO-1901-RT... - Page 4 GUIDE TO INSTALLATION AND OPERATION FIO-1901-RT...
-
Page 5: Fio-1901-Rt 3G/Hd/Sd Bi-Directional Fiber Optic To Electrical Converter
The FIO-1901 can be installed in the same chassis as a series of interface modules, providing a wide variety of video, audio and data conversion and multiplexing functions. The FIO-1901-RT version incorporates both an optical receiver and an optical transmitter, and is also available in a WDM version for use with a single optical fiber. -
Page 6: Block Diagram
GUIDE TO INSTALLATION AND OPERATION Block Diagram The following block diagrams show the functionality of the FIO-1901-RT. Both versions of the card (Rx/Tx, and Rx/Tx with WDM) are illustrated. Figure 1.1 Functional block diagram of the FIO-1901-RT 1.4 Front Card-edge Interface The front card-edge of the FIO-1901-RT incorporates two elements: •... -
Page 7: Installation

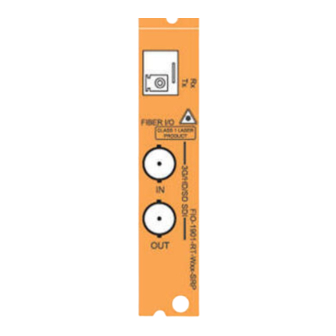

FIO-1901-RT-SRP – 1 fiber input and 2 electrical outputs See section 2.1 below for installation instructions. With the use of available adapters, the FIO-1901-RT and its rear panel can also be installed in a Densité-3 frame. See section 2.2 below for details. -
Page 8: Installation In A Densité-3 Frame
Once a matching rear connector panel has been installed, install the FIO-1901-RT card as follows: 1. Open the front panel of the frame. 2. Slide the FIO-1901-RT card into the slot with the swivel handle at the top, and push gently on the handle to seat the connectors. - Page 9 GUIDE TO INSTALLATION AND OPERATION Rear adapter: The FIO-1901-RT-SRP rear panel requires the following adapter for use in a Densité-3 frame: DENSITE SRP-3RU Installing the adapter and connector panel Install the adapter and the rear panel as follows: 1. Position the adapter at the top of the empty slot on the rear of the frame.
-
Page 10: Sfp Modules
GUIDE TO INSTALLATION AND OPERATION The FIO-1901-RT-SRP single-slot rear panel, mounted in a Densité 2 or Densité 3 frame, incorporates these connectors: • One socket for inserting a fiber transmitter/receiver SFP module – see the list of supported modules below. -
Page 11: Operation
3.1 Card-Edge Status LED The status monitor LED is located on the front card-edge of the FIO-1901-RT, and is visible through the front access door of the DENSITÉ frame. This multi-color LED indicates the status of the FIO-1901-RT by color, and by flashing/steady illumination. -
Page 12: Menu For Local Control
Menu for local control The FIO-1901-RT has operating parameters which may be adjusted locally at the controller card interface. • Press the SELECT button on the FIO-1901-RT front card edge to assign the Densité frame’s local control panel to the FIO-1901-RT •... -
Page 13: Output Configuration
Normally, the optical output is connected to the electrical input. However, this menu item allows the user to select the optical input as the source. In this configuration, the FIO-1901-RT will extract the signal and place it on its electrical output, and then send the optical signal out to another destination. -
Page 14: Remote Control Using Icontrol
3.3.1 The iControl graphic interface window The basic window structure for the FIO-1901-RT is shown in figure 3.2. The window identification line gives the card type and the slot number where the card is installed in its Densité frame. There are three main sections in the window itself, identified in figure 3.2: Figure 3.2 FIO-1901-RT iControl graphic interface window... - Page 15 Section 3. The main panel contains all the parameters specific to the group selected. Each of the panels associated with the groups accessed from the buttons in Section 2, and shown in Section 3, is described individually in the following sections. FIO-1901-RT | 11...
-
Page 16: The Status Panel
GUIDE TO INSTALLATION AND OPERATION 3.3.2 The Status panel This panel reports the status of this FIO-1901-RT card, its rear panel, its SFP module, and the signals arriving at the electrical inputs on the rear panel. OPTICAL IN and ELECTRICAL IN •... -
Page 17: The Output & Optical Panel
This panel allows the user to select the optical input as the source. In this configuration, the FIO-1901-RT will extract the signal and place it on its electrical output, and then send the optical signal out to another destination. -
Page 18: The Alarm Config Panel
Card LED This column allows configuration of the contribution of each individual alarm to the status reported by the Status LED on the front edge of the FIO-1901-RT card, visible through the front door of the Densité frame. Overall Alarm This column allows configuration of the contribution of each individual alarm to the Overall Alarm associated with this card. - Page 19 All Overall Alarms and GSM contributions for which there is no Card LED alarm will be forced to Disabled A warning box will open allowing you to confirm the action, since it will result in changes to the configuration and there is no undo function. Figure 3.9 Warning for Follow LED change FIO-1901-RT | 15...
- Page 20 Copy to other cards Click this button to open a panel that allows the alarm configuration set for this card to be copied into another FIO-1901-RT card. • Select one or more destination cards from the list in the window by clicking in the...
-
Page 21: The Info Panel
• Details…: Reports the Firmware version, service version, and panel version for this card Figure 3.13 Details window • Advanced…: Shows the Miranda LongID for this card. The Miranda LongID is the address of this FIO-1901-RT in the iControl network. Figure 3.14 Advanced window FIO-1901-RT | 17... - Page 22 • Remote System Administration – opens the Joining Locators window, which lists remote lookup services to which this FIO-1901-RT is registered. Add: Force the iControl service for this FIO-1901-RT to register itself on a user-specified Jini lookup service, using the following syntax in the data box: jini://<ip_address>...
-
Page 23: Specifications
3 Gbps: -18 dBm Rx CHANNEL WITH RT-W13-LC MODULE (PATHOLOGICAL BITSTREAM) Rejection between 1260 and 1360 nm: >30 dB Sensitivity between 1480 and 1580 nm: 270 Mbps: -20 dBm 1.5 Gbps: -20 dBm 3 Gbps: -18 dBm FIO-1901-RT | 19... - Page 24 Min -5 dBm, Max 0 dBm 1310 nm single mode on LC connectors Fabry-Perot SFP-RT-W15-LC Min -8 dBm, Max -3 dBm 1550 nm single mode on LC connectors PROCESSING PERFORMANCE Signal path: 10 bits Latency: < 6 ns Power: < 5W 20 | FIO-1901-RT...
-
Page 25: Annex 1 - Fio-1901-Rt User Interface (Local Menu Structure)
GUIDE TO INSTALLATION AND OPERATION ANNEX 1 – FIO-1901-RT User Interface (local menu structure) STATUS NO REAR, FIO-1901-RR-SRP, FIO-1901-TT-SRP, FIO-1901-RT-SRP, FIO-1901-R-SFP, FIO-1901-T-SRP REAR MISMATCH This item does not appear if the rear is matched to the card type OPT.Rx NO LOCK, NO SIGNAL, 270 Mbps, 1.5 Gbps, 3 Gbps ELE.IN... -
Page 26: Annex 2 - Installing The Optical Interface
ANNEX 2 – Installing the Optical Interface Installing and removing the Fiber I/O interface cartridge requires special care. This annex describes the process. The FIO-1901-RT-SRP rear panel incorporates a fiber optic interface. The interface consists of two parts: • A socket on the rear panel into which an SFP interface module is plugged •... - Page 27 For best results, it should be possible for the user to perform a visual inspection of the fiber ends to verify cleanliness. Miranda strongly urges all users to select a cleaning method that meets their needs, and to use it rigorously and consistently.
- Page 28 • You may find that you need to wiggle the module, or perhaps push it into the slot a bit, before it will release and slide out. 3. Insert a dust plug into the SFP module. 24 | FIO-1901-RT...
