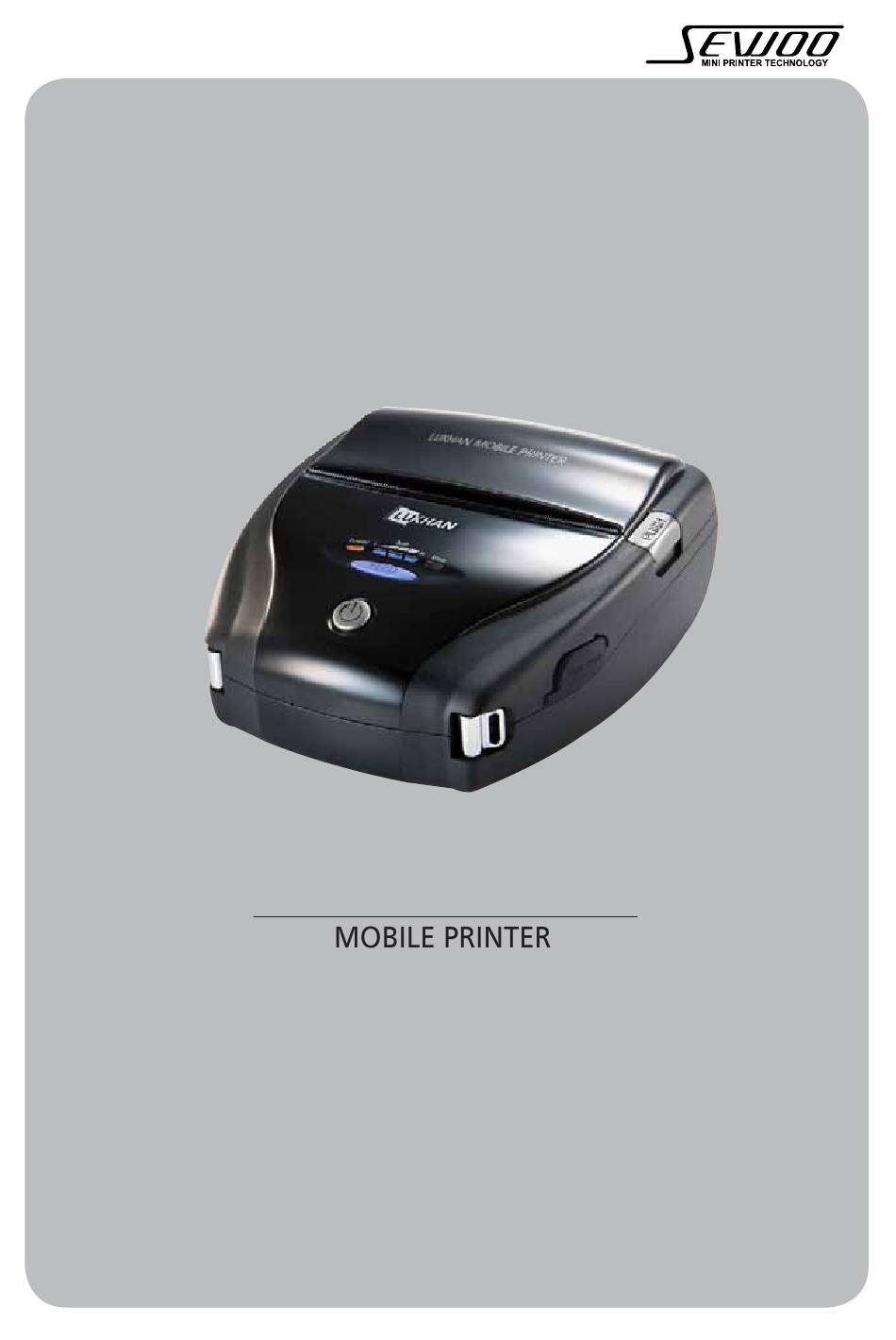

- Page 1 MODEL : LK-P41B All specifications are subject to change without notice...
-
Page 3: Table Of Contents
1. Unpacking Table of Contents Standard 1. Product overview 2. Unpacking 3. Usage and Installation 3-1. Control panel usage Printer Battery Roll paper 3-2. Battery Installation 3-3. Battery charging 3-4. Battery charger usage 3-5. Roll paper installation 3-6. Leather case usage Charger Serial Cable USB Cable Shielded... -
Page 4: Product Overview
2. Product overview 3. Usage and Installation 3-1 Control panel usage Open Button Paper feed button Power switch Button Name function This button is used to turn the printer on and off. SERIAL Power When the printer is off, press this button for approximately 3 seconds button and it will turn on the power. -
Page 5: Battery Installation
3-2 Battery Installation 3-3 Battery charging Hook 1. Be sure that the printer is turned off 2. After open the DC JACK cover, insert DC JACK into the printer. 3. Plug the power code to electrical outlet. 1. Align battery hook as shown in the picture 2. -
Page 6: Battery Charger Usage
3-5 Roll Paper installation 3-4 Battery charger usage Optional DC Jack lamp 1. Insert the battery into the battery holder as shown above Press the PUSH button to open Insert the paper in the right 2. Connect the DC JACK to the power electrical outlet. the paper cover direction 3. -
Page 7: Leather Case Usage
3-6 Leather case usage 3-7 Self Test Optional Turn off the power pressing the While you are pressing the FEED Open the leather case Place the printer into the leather power button for approximately button, press the power button case 3 seconds. -
Page 8: Peripherals Connection
4. Peripherals connection This printer can communicate with Peripherals device via Bluetooth <The sample of self test printout> and cables. 4-1 Bluetooth Connection 1. Printer can be connected to the PDA and PC which can do wireless communication. 2. By using Bluetooth function supported in PC, printer can be connected. When the printer is installed initially or when you face a problem, you can run the self test and check the information about -Control Circuit, Mechanism, Print Quality, ROM Version... -
Page 9: Interface Cable Connection
5. Pritner Specification 4-2 Interface Cable Connection 5-1 Specification Printing Method Direct Thermal Printing Speed 80mm/sec Resolution 203 DPI X 203 DPI Character CPCL 7 Different Font Size (12~48pt) ESC/POS Font A (12X24), Font B (9X17) Character per line Font A : 48pt , Font B : 64pt Character set ALPHA NUMERIC Character, Extension Character... -
Page 10: Cpcl Command Compatibility
6. CPCL Command Compatibility Battery Charger Battery type Li-ion Compatible with only Partially output 7.4V, 2200mAh commanders provided Compatible Compatible Compatible by the manufacturer. Charging time 3 hour 40 minute Size W X D X H(mm) 149 X 161 X 69 W X D X H”... - Page 11 Graphics Compatibility Line Print Mode Compatibility SETLP LINE SETLF INVERSE-LINE Moving With X and Y Coordinates PATTERN LMARGIN GRAPHICS SETBOLD SETSP Advanced Commands Compatibility Special ASCII Characters CONTRAST SETFF TONE SET-TOF JUSTIFICATION SETLP-TIMEOUT PAGE-WIDTH PACE NO-PACE WAIT REWIND TENSION SPEED SETSP ON-OUT-OF-PAPER ON-FEED...
-
Page 12: Setting Up The Software
7. Setting up the software Please refer to the programming manual included in CD. CAUTION Certification Antenna shall be mounted in such a manner to minimize the potential for human contact during normal operation. The antenna should not be contacted FCC Information during operation to avoid the possibility of exceeding the FCC radio frequency This device complies with part 15 of the FCC Results.
