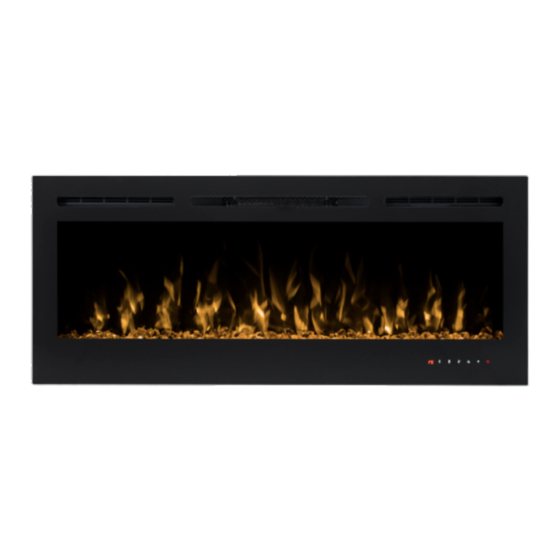

CHALLENGER WALL MOUNT/RECESSED ELECTRIC FIREPLACE
WARNING
CAUTION
AFFIX SERIAL NUMBER LABEL HERE
FOR FUTURE REFERENCE
Model# :
OWNER'S MANUAL
AC 120V 60Hz 1500W (5000BTUs)
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Failure to do so could
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give this
product away, make sure this manual accompanies this product.
CEF-50B
CEF-60B
REV_03162021
Advertisement
Table of Contents
Related Manuals for Modern Flames CEF-50B
Summary of Contents for Modern Flames CEF-50B
- Page 1 CHALLENGER WALL MOUNT/RECESSED ELECTRIC FIREPLACE Model# : CEF-50B CEF-60B OWNER’S MANUAL AC 120V 60Hz 1500W (5000BTUs) Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could WARNING result in fire, electric shock, or serious personal injury.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION! WARNING l Read all instructions before installing or using this heater. l Use a dedicated 15 Amp (or higher) breaker. l This heater is hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handles when moving this heater. - Page 3 l ALWAYS disconnect this unit from the power supply before performing any assembly or cleaning, or before relocating the electric fireplace. l NEVER leave this heater unattended. ALWAYS unplug this heater when not in use. l ALWAYS store this heater in a dry location. NEVER use the fireplace if it has become wet. l NEVER plug this heater into an outlet that is old, cracked, or has any loose wires or connections.
-
Page 4: Parts And Hardware
H – Plastic Tray I – Hardware Kit Specification and Dimension PRODUCT DIMENSIONS Model Number 50-3/8" 21-7/16" 5-3/4" 20-9/16" 12" 45-1/4" 1-3/8" 7-1/4" 47-1/16" CEF-50B (1195mm) (1280mm) (544mm) (146mm) (522mm) (305mm) (1149mm) (36mm) (184MM) 59-7/8" 21-7/16" 5-3/4" 47-1/16" 20-9/16" 12"... -
Page 5: Installation And Assembly
Installation and Assembly Your appliance is a recessed, partial recessed or wall-mount installed appliance. Select a suitable location that is not susceptible to moisture and is away from drapes, furniture and high traffic areas. NOTE: Follow all National and local electrical codes. MINIMUM CLEARANCE TO COMBUSTIBLES Measurements are taken from the glass front. - Page 6 Front glass removal / installation A. With one hand on the front glass to prevent it from falling, remove the two screws (1 per side) from the side of the appliance (Fig. 1-1). Set the screws aside. B. Carefully lift the front glass up and away from the appliance (Fig. 1-2 ). Place it face down on a soft, non-abrasive surface.
- Page 7 (Non-load bearing) Framing Hole Size Model Number CEF-50B 47-1/4” (1200mm) 20-3/4” (527mm) 5-1/2” (140mm) CEF-60B 47-1/4” (1200mm) 20-3/4” (527mm) 5-1/2” (140mm)
- Page 8 Fully recessed installation Note: Remove power cord and complete hardwiring (see “hardwiring installation” section). Have two people to lift the fireplace and insert to the wall opening hole. If the appliance is fully recessed into the wall: • Use the 6 screws (provided) to lock the appliance into the wall with the existing two side flanges, see Figure 2-1 •...
-
Page 9: Wall Mounted Installation
Wall mounted installation Due to the many different materials used on different walls, it is highly recommended that you consult your local builder before you install this appliance on the wall. NOTE: A dedicated 15 Amp (or higher) breaker is required. B. -
Page 10: Hard Wiring Installation
Hard wiring installation WARNING TURN OFF THE APPLIANCE COMPLETELY AND LET COOL BEFORE SERVICING. ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE. HARD WIRING CONNECTION If it is necessary to hard wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the household wiring. - Page 11 Glacier Crystal installation A. Glass front must be removed and the appliance must be mounted in its final location before the glacier crystals are installed. B. Place the plastic tray ( H ) into the fireplace ember bed. Then carefully place crystals onto the plastic tray as illustrated.
-
Page 12: Methods Of Operation
Operation Read and understand this entire owner’s manual, including all safety information, before plugging in or using this product. Failure to do so could result in electric shock, fire, serious injury, or death. Power Plug the power cord into a dedicated 110~120 Volt 15 Amp grounded outlet (see IMPORTANT SAFETY INFORMATION on Pages 2 and 3). -
Page 13: Temperature Limiting Control
FLAME button: Makes flame effect 1. Press once. Flame brightness effect dimmer and brighter. gets changing. NOTE: Flame effect stays on until power 2. Press again. until desired setting is button is turned off. Flame effect must be FLAME reached. on for heater to turn on. -
Page 14: Care And Maintenance
Care and Maintenance Cleaning ALWAYS turn the heater OFF and unplug the power cord from the outlet or turn off dedicated circuit breaker before cleaning, performing maintenance, or moving this fireplace. Failure to do so could result in electric shock, fire, or personal injury. NEVER immerse in water or spray with water. - Page 16 DO NOT RETURN TO STORE! CALL US FIRST For immediate help with installation, product information or if your product arrives damaged, please call our toll free number at: 1-877-246-9353 (Monday - Friday, 8:00AM - 5:00PM, AZ Mountain Time) Or email us at: customerservice@modernflames.com OUR STAFF IS READY TO PROVIDE ASSISTANCE...
