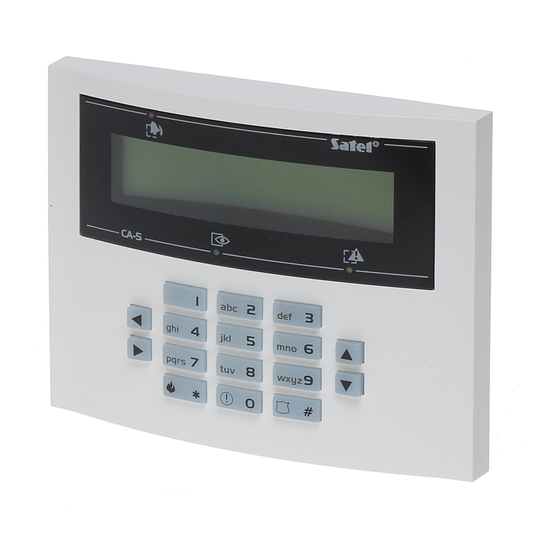

Satel CA-5 User Manual

Alarm control panel
Hide thumbs Also See for CA-5:
Table of Contents

Advertisement

Quick Links

Download this manual

USER MANUAL

GDAŃSK
ca5u_e 06/05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel CA-5

Summary of Contents for Satel CA-5

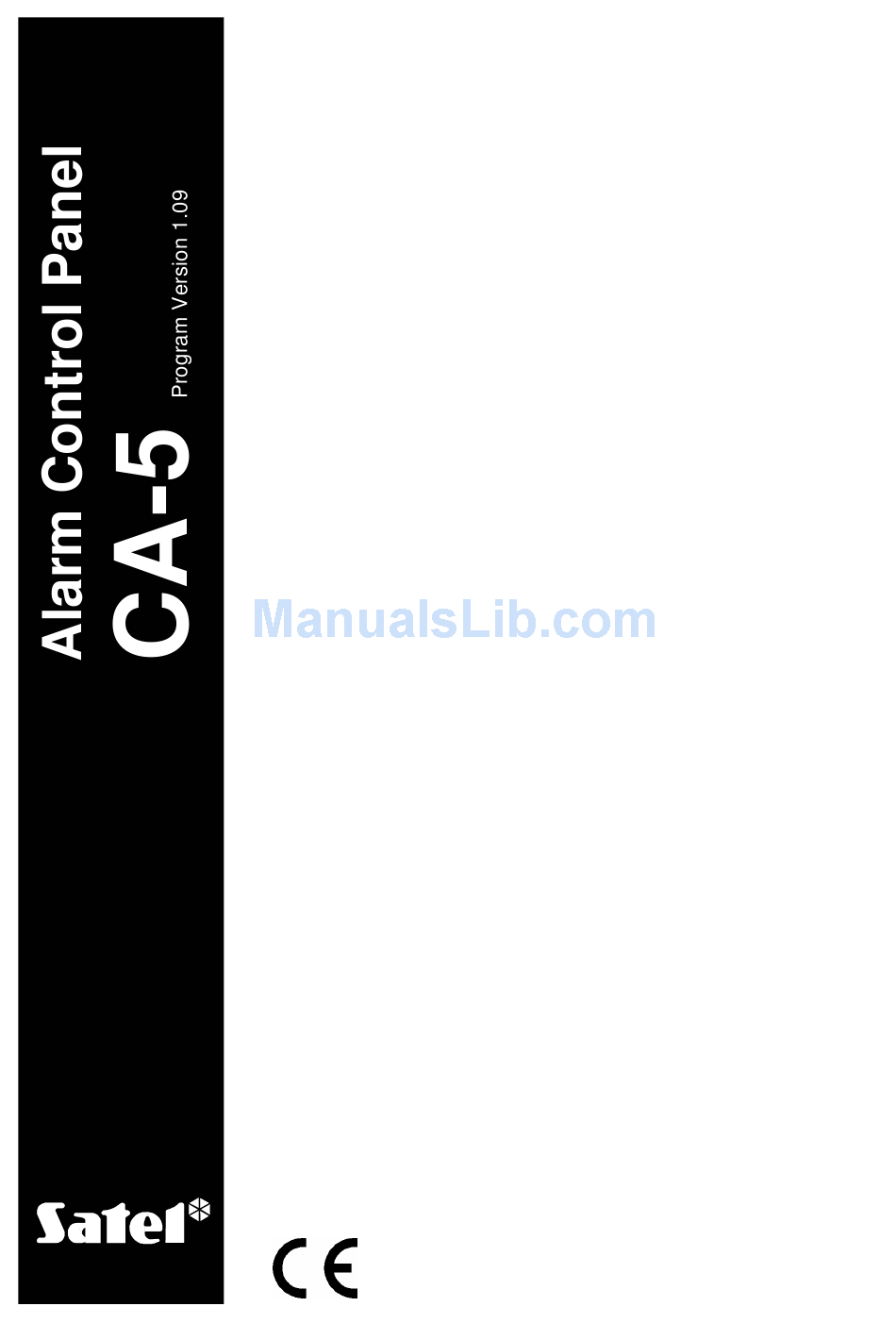

  • Page 1: User Manual

    USER MANUAL GDAŃSK ca5u_e 06/05...
  • Page 2 (European Union Directives 91/157/EEC and 93/86/EEC). Latest EC declaration of conformity and product approval certificates can be downloaded from web site www.satel.pl DEFINITIONS OF SOME TECHNICAL TERMS AS USED IN THIS MANUAL: • Service mode – the control panel condition which permits calling of the service functions and programming of the security system parameters.

  • Page 3: Table Of Contents

    CONTENTS 1. T ..............2 ECHNICAL RELIABILITY OF THE SECURITY SYSTEM 2. A ..................2 LARM SYSTEM OPERATING COSTS 3. G ......................2 ENERAL FEATURES 4. O ........................... 3 PERATION 4.1 LED F ........................4 UNCTIONS 4.2 S ............5 TATUS OF CONTROL PANEL ARMED ZONES IN KEYPAD 4.3 C ..............5...

  • Page 4: Technical Reliability Of The Security System

    3. G ENERAL FEATURES The CA-5 alarm control panel is an advanced, microprocessor based device designed for burglary and panic alarm systems. It is characterized by simplicity of operation, legibility of information for the user, and a high operational reliability. It has been fitted with a telephone communicator (dialer) which enables the security system to operate together with a monitoring station.

  • Page 5: Operation

    SATEL 4. O PERATION This manual contains description of operating the CA-5 alarm control panel by means of the keypad. Operating the security system consists basically in arming / disarming the system (switching the supervision on/off), and in adequate reaction to the information indicated by the control panel.

  • Page 6: Led Functions

    Note: Access to all functions of the control panel in version 1.09 is made possible by: LCD keypads in program version 1.07and later, CA-5 KLED-M keypads in version 1.2 and later , and CA-5 KLED-S keypads in version1.1 and later.

  • Page 7: Status Of Control Panel Armed Zones In Lcd Keypad

    CA-5 SATEL • If, when the control panel is in armed mode, an E or D zone will be NTRY ELAYED violated as the first one, and then another zone will set off alarm, then the memory of the first alarm will be assigned to the zone which was violated first.

  • Page 8: Events Signaled On The Out1 Output

    User Manual CA-5 • three long - an attempt to arm the system when the control panel is not ready for the job (violated zones with the activated option of „priority” - see „Arming”), refusal to enter the function, • four short, one long – arming/disarming, entering the service mode, successful completion of function programming, activating the chime signaling in the keypad.

  • Page 9: Armed Mode Of The Control Panel

    RMED ODE OF THE ONTROL ANEL In order to adjust the security system to various situations, the CA-5 control panel offers several armed modes: 4.6.1 Full armed mode The operating mode when detectors connected to the control panel control the protected site and violation of the protected areas is signaled by the control panel with any available means (monitoring, sirens, keypad).

  • Page 10: Quick Arming [0][#]

    User Manual CA-5 zone violation is displayed - it may be caused e.g. by the detector failure), the armed mode can be activated after bypassing the given zone (using the function 4); • the access code is incorrect – this situation is signaled with two long beeps.

  • Page 11: Hold Down" User Functions

    CA-5 SATEL 5. „HOLD DOWN” USER FUNCTIONS The functions are available to every user of the protected site (without using the access code). They are activated by holding down the function key until audible signal sounds in the keypad. The first three functions refer to viewing the alarms and troubles. Depending on the keypad type the viewing is done in different ways.

  • Page 12: Trouble Memory Review

    User Manual CA-5 • keypad alarms: one of the LEDs is off, and the other LEDs 1 to 5 are on, the meaning of the extinguished diode being as follows: LED No ALARM DESCRIPTION Fire alarm, keypad Panic alarm, keypad...

  • Page 13: Description Of Some Trouble Signaling Causes

    CA-5 SATEL Note: During the trouble memory review, the extinguished LED No. 3 (a second set trouble) means „Unsuccessful DWNL (downloading)”. The meaning described in the table refers to the current trouble check-out only. 5.4.1 Description of some trouble signaling causes...

  • Page 14: Auxiliary Alarm [0]

    User Manual CA-5 5.7 A UXILIARY ALARM The meaning of this alarm is specified depending on the needs. The function may transmit information on the auxiliary alarm to the monitoring station (it may be, for example, a call for medical assistance, as it was adopted in the Contact ID monitoring format).

  • Page 15: Start Download [Code][ * ][0][#]

    CA-5 SATEL USER FUNCTIONS MENU: UNCTION UNCTION NAME Start DWNL (starts panel programming by the phone from service computer) Change access code Add user (adds new user code) Erase user (deletes user code) Bypass zones Arm silent (activates silent armed mode)

  • Page 16: Change Access Code [Code][ * ][1][#]

    PROGRAM LED, [1] [#] - calling "change code" function, alarm ALARM CONTROL PANEL CA-5 LCD confirmed with two short beeps and in the LED keypad additionally with fast blinking 1.Change code: of the PROGRAM LED (in the LCD 2.Add user...

  • Page 17: Erase User [Code][ * ][3][#]

    – confirmed in the LED keypad by ALARM CONTROL PANEL CA-5 LCD extinguishing of the LEDs with numbers 3 Users to leave: and 5 (the LEDs 1, 2 and 4 are still lit up), 12 .

  • Page 18: Arm Silent [Code][ * ][5][#]

    - selecting the numbers of zones to be alarm bypassed – in the LED keypad the LEDs ALARM CONTROL PANEL CA-5 LCD 3 and 4 will light up, in the LCD keypad Zones to bypass: digit 3 and 4 will be displayed, ..
  • Page 19 PROGRAM diode (in the LCD keypad this function may be called using arrow keys), [0745] [#] - entering the hours and minutes confirmed alarm ALARM CONTROL PANEL CA-5 LCD with two short beeps, Time (hh:mm): 07:45...

  • Page 20: Mono Outputs [Code][ * ][7][#]

    User Manual CA-5 [6] [#] calling the number of the „panel clock programming” function confirmed with two short beeps and fast blinking of the PROGRAM diode. The first digit (1) is displayed on the LEDs, two long beeps (the LED indications remain unchanged), Note: Pressing the [ * ][#] keys will quit the function, while for checking the date setting, it is necessary to press the [#] key.

  • Page 21: Testing Outputs And Led Indicators [Code][ * ][11][#]

    CA-5 SATEL with master user code or with service code, and next the “Events” function should be called. The way of viewing is described in section HOLD DOWN USER FUNCTIONS. 6.12 T [CODE][ * ][11][#] ESTING OUTPUTS AND LED INDICATORS The function makes it possible to check the current logical status of the control panel outputs (active/inactive), as well as functioning of the outputs and devices connected to them.

  • Page 22: History Of Manual Updates

    User Manual CA-5 7. HISTORY OF MANUAL UPDATES The changes described refer to the manual drawn up for the CA-5 v1.07 control panel. ERSION ESCRIPTION OF CHANGES An option to extinguish the ARMED LED on arming has been introduced (p. 4).
  • Page 23 LEDs 1÷5 (zones state) ARMED on - zone violated on – partition armed, off - zone OK blinking – exit time in progress blinking fast - zone alarm memory on with short extinguishing every 2 sec. - zone tamper violated flashing every 2 sec.
  • Page 24 LCD DISPLAY – date and hour Status of armed zones: - zone OK - zone violated alarm - 2EOL zone tamper violated on - site alarm armed - zone alarm blinking - alarm memory on – partition armed, - memory of 2EOL zone tamper alarm blinking –...
