Satel CA-10 User Manual

Satel CA-10 User Manual

Alarm control panel
Hide thumbs Also See for CA-10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual, Installation Manual

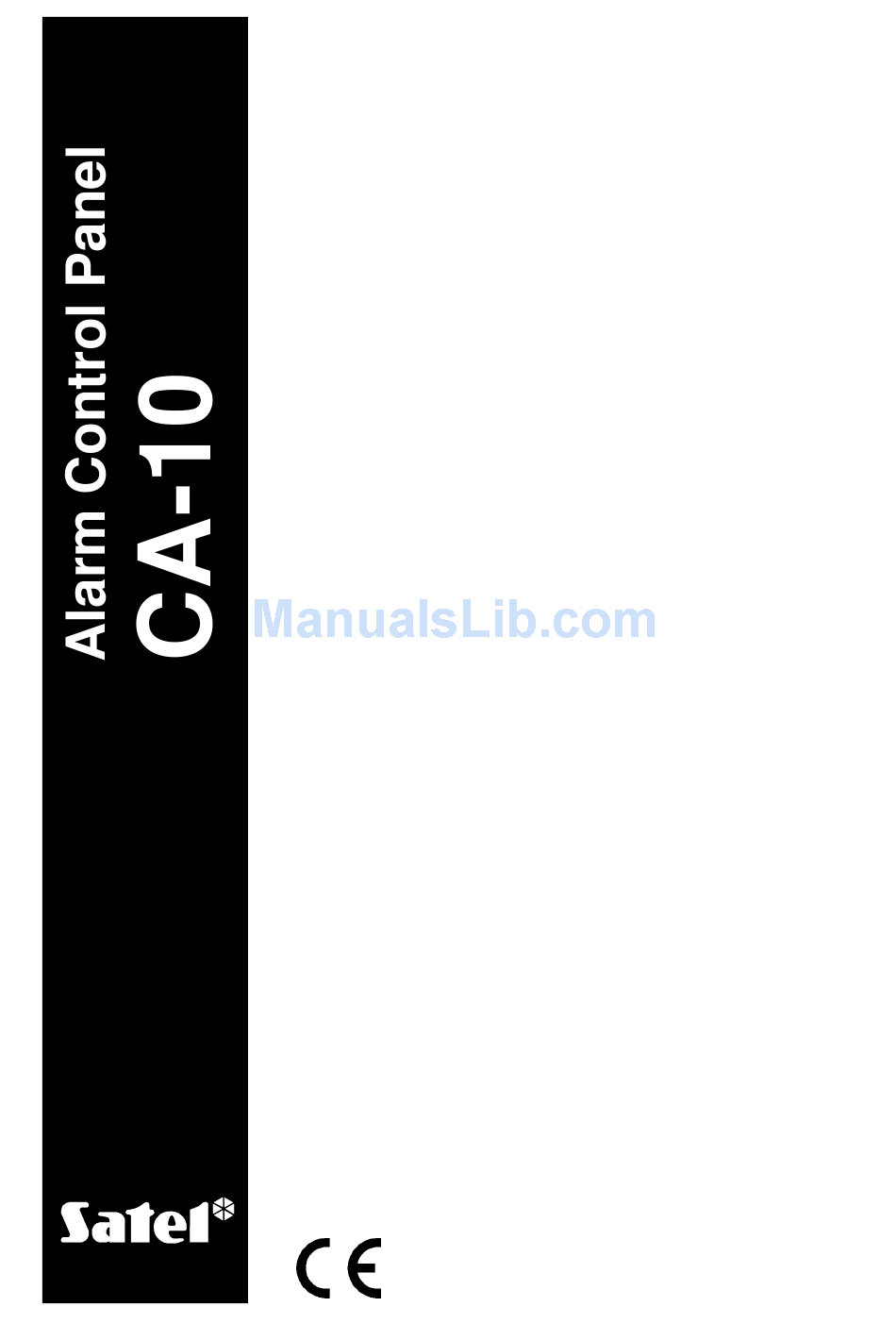

USER
MANUAL
GDAŃSK
ca10u_e 06/04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CA-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Satel CA-10

Summary of Contents for Satel CA-10

  • Page 1: User Manual

    USER MANUAL GDAŃSK ca10u_e 06/04...
  • Page 2 The alarm system is fitted with a battery. After expiry of its lifetime, the battery must not be thrown away, but disposed of as required by the existing regulations (European Union Directives 91/157/EEC and 93/86/EEC). Latest EC declaration of conformity and product approval certificates can be downloaded from our Web site www.satel.pl...

  • Page 3: Table Of Contents

    CONTENTS Technical Reliability of the Alarm System ............... 2 Alarm System Operating Costs..................2 CA-10 Control Panel ....................... 2 Armed Modes ......................... 3 Full armed mode........................3 Silent armed mode........................3 Partially armed mode ......................4 Stay armed mode ........................4 Operating Instructions..................... 4 LED Functions ........................6...

  • Page 4: Technical Reliability Of The Alarm System

    CA-10 Control Panel The CA-10 control panel is a modern, microprocessor-based equipment designed for burglary and assault signaling systems. The CA-10 panel controls the alarm system, responds to information coming from the system detectors about an intrusion into the protected facility, and provides signaling and notification about the event. The control...

  • Page 5: Armed Modes

    • internal clock capable of automatic arming and disarming of the system, • automatic diagnostics of the basic components of the alarm system. Armed Modes To adapt the alarm system to various needs, the CA-10 control panel offers several armed modes: Full armed mode...

  • Page 6: Partially Armed Mode

    There are three types of LED keypads (CA-10 KLED, CA 10 KLED-M, CA-10 KLED-S) and three types of LCD keypads (CA-10 KLCD, CA-10 KLCD-S, CA-10 KLCD-L) that can be used together with the CA-10 control panel. All of them fully support the alarm system.
  • Page 7 CA-10 KLCD-S keypad. CA-10 KLCD-S and CA-10 KLCD-L keypads differ each other in the dimension and the size of display. Figure 1. Keypads to serve the CA-10 control panel. The CA-10 KLED and CA-10 KLCD keypads are shown at the end of this manual.

  • Page 8: Led Functions

    USER MANUAL CA-10 LED Functions ALARM - alarm was triggered in the zone (when none of LEDs is blinking, the alarm cause will be shown by the function "Viewing alarm log". The alarm may have been caused by a zone not displayed in the partition, or the zone belonged also to another partition, where alarm was cleared).

  • Page 9: States Of Control Panel Armed Zones In Lcd Keypad

    CA-10 SATEL Additional signaling, which is only provided in the CA-10 KLED-M and CA-10 KLED-S keypads: • LED designated with the symbol is lit when the keypad audible alarm (buzzer) is on. • all LEDs blinking simultaneously (with 0,5s/0,5s timing), along with audible signaling, informs the user that connection between the keypad and the control panel has been lost.

  • Page 10: User Access Codes

    USER MANUAL CA-10 • five long - DAY/NIGHT zone violated when the partition is disarmed, or counting zone violated when the partition is armed. The installer determines which events and in which keypads are to be signaled acoustically. User Access Codes For everyday operation of the system it is necessary to know the user access code.

  • Page 11: Quick Arming

    CA-10 SATEL The panel may fail to arm the system if: • the panel is not ready for arming: there are specifically selected zones which cannot be violated when the system is being armed and one of them is violated at the time of arming - the panel will signal the situation with three long beeps.

  • Page 12: Clock Controlled Arming / Disarming

    System status telephone messaging The owner of the facility where a CA-10 control panel is installed can check if there was an alarm in the system by using a telephone. In order to do so, he has to call the protected facility: the control panel will answer the call and inform about the system status.

  • Page 13: Functions Of ◄▲▼► Key In The Lcd Keypads

    CA-10 SATEL Functions of ◄▲▼► Key in the LCD Keypads Activated by installer functions assigned to ◄▲▼► keys help in everyday control of the system operation. The function is called by pressing the corresponding key. The installer can disable the functions described below.

  • Page 14: Viewing Alarms Log

    USER MANUAL CA-10 The LED keypad enables all the operations to be performed in this partition, except for the „HOLD DOWN” function (the GOTO function cannot be called again). The given partition is exited automatically (the keypad returns to its own partition after approx.

  • Page 15: Viewing Troubles Log

    CA-10 SATEL 2 - auxiliary alarm keypad activated 3 - panic alarm keypad activated 4 - anti-tampering keypad alarm 5 - three wrong access codes alarm 9 - alarm activated in partition 1 10 - alarm activated in partition 2...
  • Page 16 USER MANUAL CA-10 In the LED keypad on activating the function, the TROUBLE LED and the LEDs indicating current troubles turn on (lack of illumination of any of the 12 LEDs is also indicative of a problem). Pressing any key stops the function.

  • Page 17: Switching Chime On/Off

    Keypad backlighting The function, which is only available in the CA-10 KLED-M and CA-10 KLED-S keypads irrespective of the installer's settings, is used to control the keypad backlighting. After restarting the system (power-up), the keypad always enters the automatic backlighting mode, which is activated by pressing any key.

  • Page 18: User Access Code Change ............................................................ [Code][ * ][1]

    USER MANUAL CA-10 In order to get access to the user functions, enter the user access code and confirm it with the [ * ] key (not the [#] key, as is the case with arming / disarming). The LEDs ALARM, ARMED (PARTITION), TROUBLE will start blinking in the keypad. To...

  • Page 19: User (Code) Add ............................................................................ [Code][ * ][2]

    CA-10 SATEL Example: changing the access code from [1234] to [7890] [1234] [ * ] - calling the „user function” mode confirmed by one short beep and blinking of LEDs ALARM, ARMED and TROUBLE. [1] - calling the „change access code” function, confirmed by two short beeps.

  • Page 20: User (Code) Erase ......................................................................... [Code][ * ][3]

    USER MANUAL CA-10 In numeric mode key deletes the character before the cursor, and key switches between insert/typeover modes. An access code can have the following functions/authority levels: 1 - accessible all functions, except creating and deleting users, 2 - accessible arming and disarming, change of access code,...

  • Page 21: Zone Bypass ................................................................................. [Code][ * ][4]

    CA-10 SATEL In the LCD keypad, the user indicated by the cursor (flashing field) will be deleted. On pressing and holding down the ▲ or ▼ key the name of the user indicated with the cursor appears. The cursor can be positioned with ◄►.

  • Page 22: Time Setting .................................................................................. [Code][ * ][6]

    USER MANUAL CA-10 Time setting [CODE][ * ][6] The function enables setting the panel’s clock. In the LED keypad the programming procedure is as follows: - HOURS, MINUTES - acceptance ([H][H][M][M][#]), - DAY, MONTH - acceptance ([D][D][M][M][#]), - YEAR - acceptance ([R][R][R][R][#]).

  • Page 23: [Code][ * ][9]

    CA-10 SATEL confirmed by four short and one long beeps, and its deactivation - with three short beeps. Refusal of control is signaled with two long beeps. The control panel may refuse control, if the output is not of the SWITCH BI type or if it belongs to another partition.
  • Page 24 LEDs 1÷12 (zones state) - hold down for 3 sec. to - hold down for 3 sec. ON - zone violated activate alarm log viewing to GOTO selected partition OFF - zone OK fast blinking - zone activated alarm on , short off every 2 sec. - zone tamper violated - hold down for 3 sec.
  • Page 25 LCD DISPLAY: time and date or partition ALARM - alarm in the current name and system status message partition TROUBLE signals trouble detection in the system - to check press key for 3 seconds - hold down for 3 sec. 1 Jan, 12:35:47 to GO TO selected partition PARTITION 1, 2, 3, 4...
  • Page 26 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.pl...
